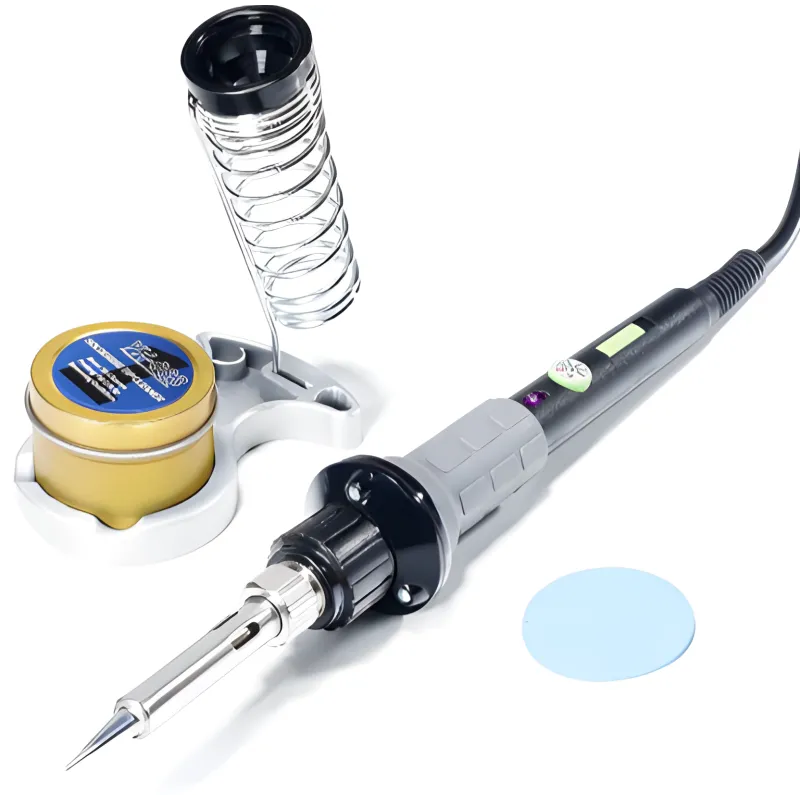

Soldering Iron 135W LED light, power switch, adjustable

SKU:YIHUA 947-V
Manufacturer:Yihua
-26% Soldering Iron 135W LED light, power switch, adjustable
Image is for illustrative purposes only
The YIHUA 947 series soldering iron features an exquisite patented design, crafted from a new environmentally friendly, high-transparency material. The design is minimalist and atmospheric, with a transparent front and a scrubbed back finish.

A key safety and comfort feature is the high-temperature insulation ring located on the handle's central part, which effectively prevents heat from transferring to the grip, ensuring comfortable use even during extended sessions. The overall stability of this electric iron is significantly enhanced, providing a reliable tool for any project. It is also highly energy-efficient, boasting rapid heating and excellent temperature recovery performance.

At its core, the soldering iron uses an internal-heat-type heating element for high thermal efficiency. The internal construction utilizes double-sided SMT technology with neatly arranged components and strong solder joints, guaranteeing durability. It comes equipped with long-life lead-free solder tips, making it suitable for a wide variety of lead-free soldering processes. Additionally, the anti-static design, complete with an alligator clip for a ground wire, meets diverse requirements for electrostatic discharge safety.
Model: 947-I
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 35/45/60W
Temperature Range: 200~450℃
Switch: No
Temperature Control Knob: No
Indicator Light: No
Weight: 0.22kg

Model: 947-II
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 60W
Temperature Range: 220~480℃
Switch: No
Temperature Control Knob: Yes
Indicator Light: Yes
Weight: 0.22kg

Model: 947-III
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 60W
Temperature Range: 220~480℃
Switch: Yes
Temperature Control Knob: Yes
Indicator Light: Yes
Weight: 0.22kg

Model: 947-IV
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 35/45/60W
Temperature Range: 200~450℃
Switch: No
Temperature Control Knob: No
Indicator Light: No
Weight: 0.22kg

Model: 947-V
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 35/45/60W
Temperature Range: 200~450℃
Switch: No
Temperature Control Knob: No
Indicator Light: No
Weight: 0.22kg

Model: 947-VII
Power Supply: AC220~240V 50Hz / AC110V ±10% 60Hz
Output Power: 35/45/60W
Temperature Range: 200~450℃
Switch: No
Temperature Control Knob: No
Indicator Light: No
Weight: 0.26kg

Common Parameters for all models:
Working Temperature: 0~40℃
Storage temperature: -20~80℃
Storage humidity: 35~45%
