Soldering gel flux 1.4ml no-clean in syringe

SKU:AGT-047
Manufacturer:AG TermoPasty

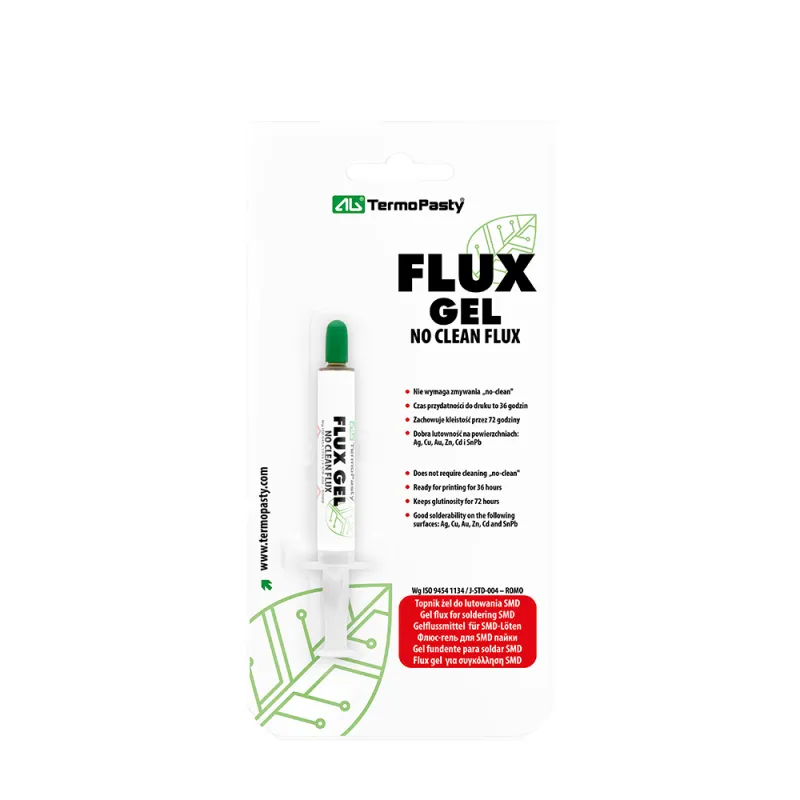

New Soldering gel flux 1.4ml no-clean in syringe
Image is for illustrative purposes only
Product Overview

AGT-047 Gel Flux from AG Termopasty is a concentrated rosin flux designed for surface mount technology (SMT) component mounting and repair.

Key Features

- RMA class concentrated rosin flux.

- Formulated with special activators allowing residues to be left on the board after soldering if process permits.

- Provides good solderability on surfaces including Silver (Ag), Copper (Cu), Gold (Au), Zinc (Zn), Cadmium (Cd), and Tin-Lead alloy (SnPb).

- Amber color.

- Density: Approximately 1.0 g/cm³ at 80°C.

- Flash Point: Above 150°C.

- Complies with ISO 9454-1 and J-STD-004 (ROMO) standards.

- Supplied in a 1.4 ml syringe for precise application.

Applications

Ideal for precise and economical application in SMT mounting and repair, suitable for detailed repair work and delicate soldering tasks.
Activity preservation time for screen printing: 36 h
Color: Amber / Light brown
Compliance with standards: J-STD-004 – ROMO
Density at 80°C: 1.0 - 1.1 g/cm³
Does not require washing: Yes
Flash point: > 150 °C
Flux class: RMA
Flux marking according to ISO 29454-1: 1.1.3.C
Flux type: rosin based
Form: Gel / Paste
Good solderability on surfaces: Ag, Cu, Au, Zn, Cd, SnPb
Package volume: 1.4 ml
Solubility: Not soluble in water
Tack preservation time: 72 h
AGT-047 Datasheet EN514.79KB
Download
