SKU:UT336P KIT
Manufacturer:
Uni-T
Image is for illustrative purposes only

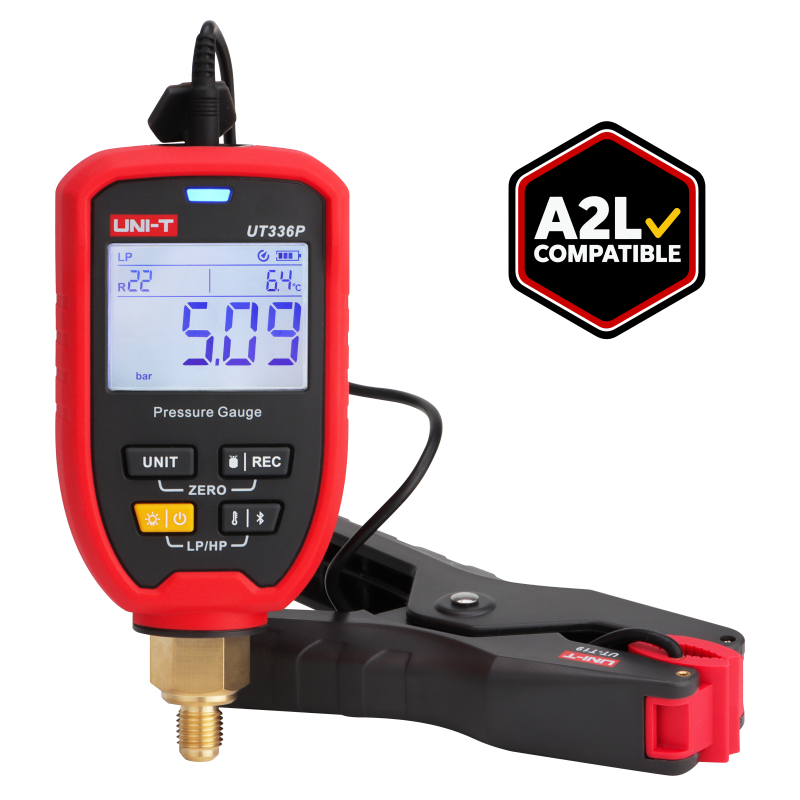

UNI-T UT336P KIT is a wireless digital pressure gauge and temperature clamp set designed for the installation, commissioning, and maintenance of refrigeration and heat pump systems. The instrument provides accurate system pressure measurements and supports offline data logging for long-term real-time monitoring.
The gauge is equipped with a 3.5mm interface for connecting the included UT-T19 temperature clamp. When paired with the iENV mobile application via Bluetooth, users can monitor high- and low-pressure line temperatures, superheat, and subcooling calculations. The unit supports A1, A2L, A2, A3, and selected B1 refrigerants (not suitable for ammonia refrigerants NH3 / R717). Ten refrigerant profiles are preloaded on the device, with over 90 additional profiles accessible through the app.
Key functional features include a rear suspension hook, customizable high and low pressure alarms, dual-color LED status indicators (red for high pressure, blue for low pressure), and onboard storage for up to 8000 data logs with report export capability.
The gauge is equipped with a 3.5mm interface for connecting the included UT-T19 temperature clamp. When paired with the iENV mobile application via Bluetooth, users can monitor high- and low-pressure line temperatures, superheat, and subcooling calculations. The unit supports A1, A2L, A2, A3, and selected B1 refrigerants (not suitable for ammonia refrigerants NH3 / R717). Ten refrigerant profiles are preloaded on the device, with over 90 additional profiles accessible through the app.
Key functional features include a rear suspension hook, customizable high and low pressure alarms, dual-color LED status indicators (red for high pressure, blue for low pressure), and onboard storage for up to 8000 data logs with report export capability.
Pressure Measurement Range / Resolution: -1 to 60 bar (0.01 bar), -1.01 to 61.18 kg/cm² (0.01 kg/cm²), -75.0 to 4500.3 cmHg (0.1 cmHg), -14.5 to 870.2 psi (0.1 psi), -29.52 to 1771.8 inHg (0.1 inHg), -100 to 6000 kPa (1 kPa), -0.100 to 6.000 MPa (0.001 MPa)
Pressure Measurement Accuracy: ±0.5% FS
Over Range Indication: OL (>65 bar)
Pressure Port: 1/4″ SAE Connector
Pressure Zeroing: Supported
High/Low Pressure Switching: Supported
Temperature Measurement Range / Resolution: -50 ℃ to +150 ℃ (0.1 ℃)
Temperature Measurement Accuracy: ±0.5 ℃ (-50 ℃ to 80 ℃), ±1 ℃ (other ranges)
Temperature Clamp Wire Length: 2 m
Temperature Clamp Interface: 3.5 mm port
Units: Pressure: Bar, kg/cm², cmHg, psi, inHg, kPa, MPa; Temperature: ℃, ℉
Refrigerant Types: 10 preset (configurable via app, 94 total)
Evaporating/Condensing Temperature: Calculated according to refrigerant type
Data Storage Capacity: 8000 records
Data Logging Interval: 1 s to 1 h (configurable via app)
LED Indicators: Red (HP), Blue (LP)
Screen Backlight: Supported
Mobile App: iENV (iOS / Android)
Auto Power Off: Supported
Firmware Upgrade: Supported
Battery Life: 100 h (alkaline batteries, backlight off, LED on, 1 min logging interval)
Power Supply: 3x AA alkaline batteries
IP Rating: IP54
Operating Temperature & Humidity: -10 ℃ to +50 ℃, <90% RH
Storage Temperature & Humidity: -20 ℃ to +60 ℃, <80% RH
Dimensions: UT336P: 145 x 68 x 39 mm; UT-T19: 154 x 88 x 24 mm
Net Weight: 250 g (excluding batteries)
Certifications: CE, RoHS
Supported Languages: EN, FR, DE, IT, ES, SV, PL, CZ

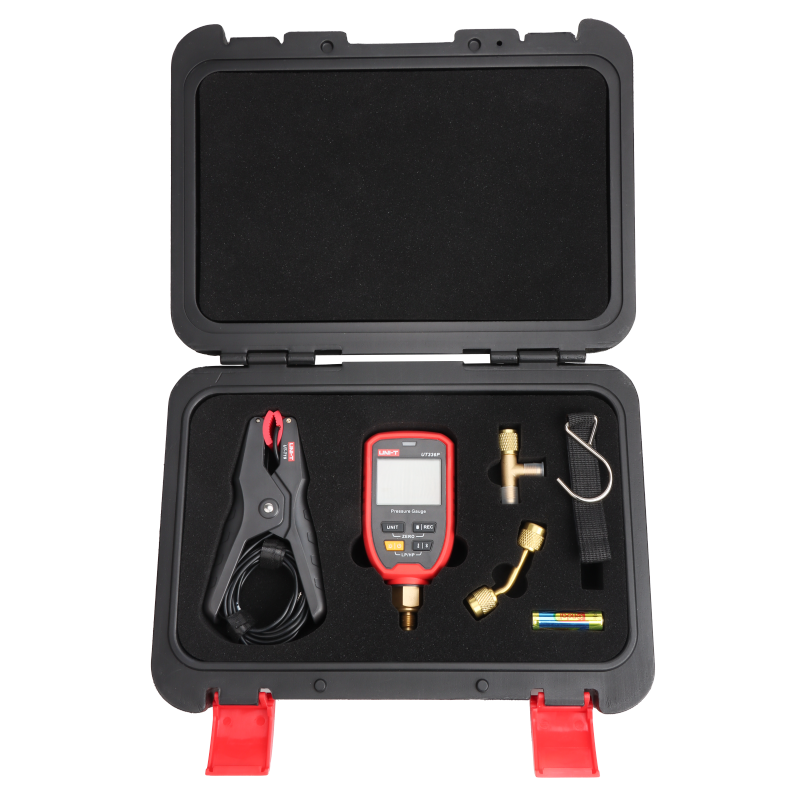

Komplekti kuulub: Wireless Pressure Gauge (UT336P)
Temperature Clamp (UT-T19)
Quick Start Guide
Safety Guide
Download Guide of Common Files
3x AA Battery
Hand Strap
Toolbox
Tee Connection 1/4″ SAE
Bent Adapter 1/4″ SAE
