Wireless power module pair 5V 1A
SKU:OKY3376
Manufacturer:Okystar

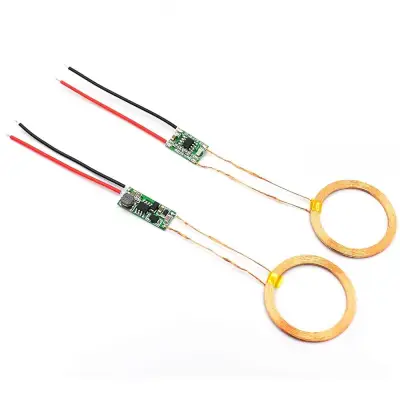

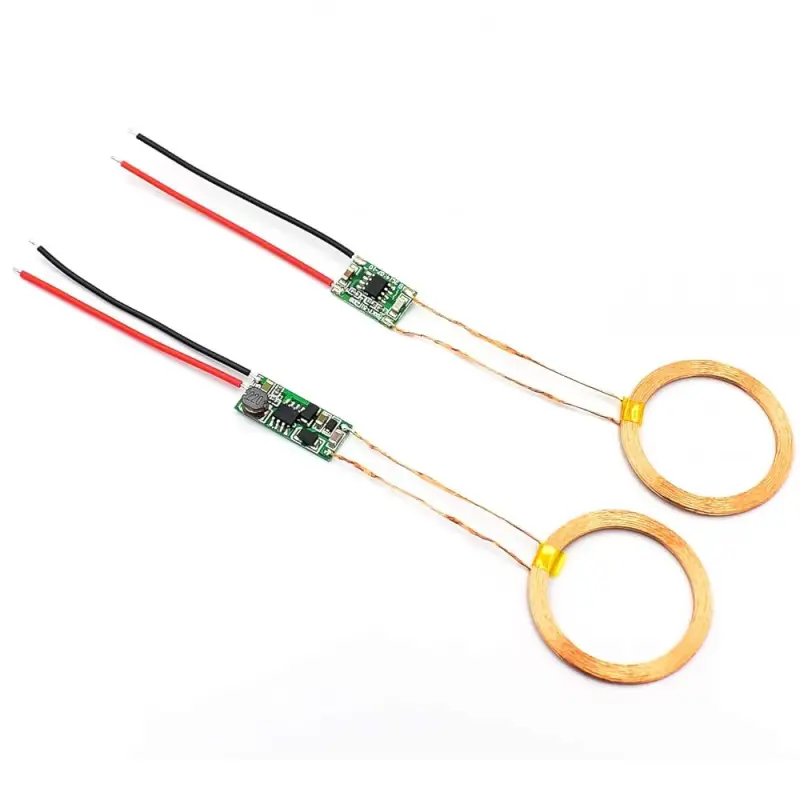

Image is for illustrative purposes only
This 5V 2A wireless power module is designed for contactless charging and powering devices.
Key Features: The module operates with an input voltage ranging from 9V to 12V and provides a stable output of either 5V/2A or 12V/700mA, offering flexibility for various applications. For efficient energy transfer, the optimal working distance between the transmitter and receiver is 3mm to 6mm. The system comprises a transmitter and receiver module, along with coils. The transmitter coil has an outer diameter of 43mm and a thickness of 2.3mm, while the receiver coil shares the same diameter but is 1.2mm thick. The compact module dimensions (transmitter: 18x8.5x15mm; receiver: 10x25x3mm) allow for easy integration into diverse projects.
Key Features: The module operates with an input voltage ranging from 9V to 12V and provides a stable output of either 5V/2A or 12V/700mA, offering flexibility for various applications. For efficient energy transfer, the optimal working distance between the transmitter and receiver is 3mm to 6mm. The system comprises a transmitter and receiver module, along with coils. The transmitter coil has an outer diameter of 43mm and a thickness of 2.3mm, while the receiver coil shares the same diameter but is 1.2mm thick. The compact module dimensions (transmitter: 18x8.5x15mm; receiver: 10x25x3mm) allow for easy integration into diverse projects.
Power
10W
Output
5V/2A
Maximum voltage
12V DC
-
