Cable finder with generator up to 2.5m
SKU:UT25CL
Manufacturer:Uni-T
New
Image is for illustrative purposes only

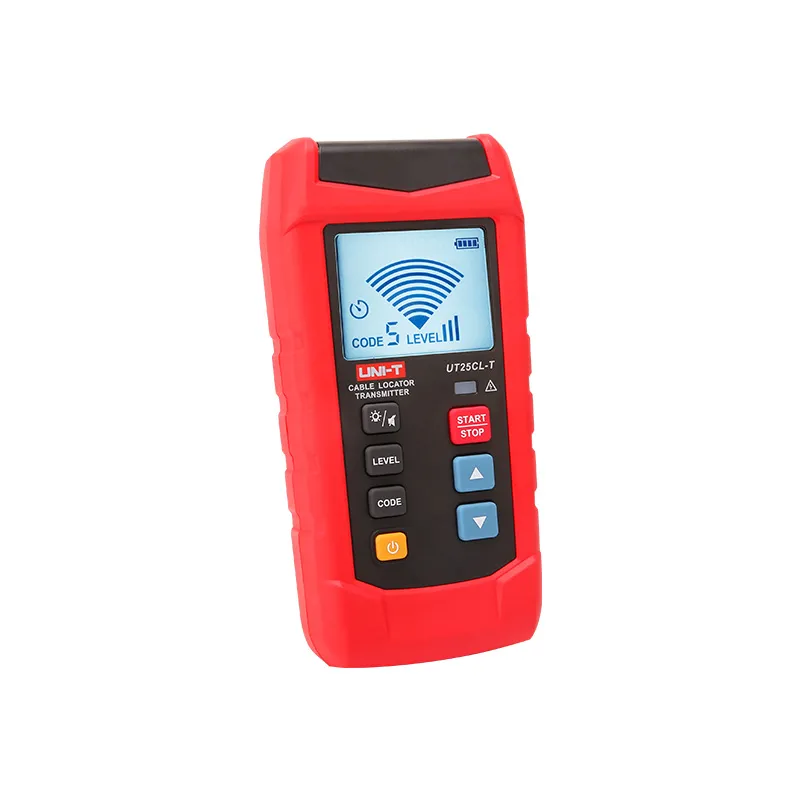

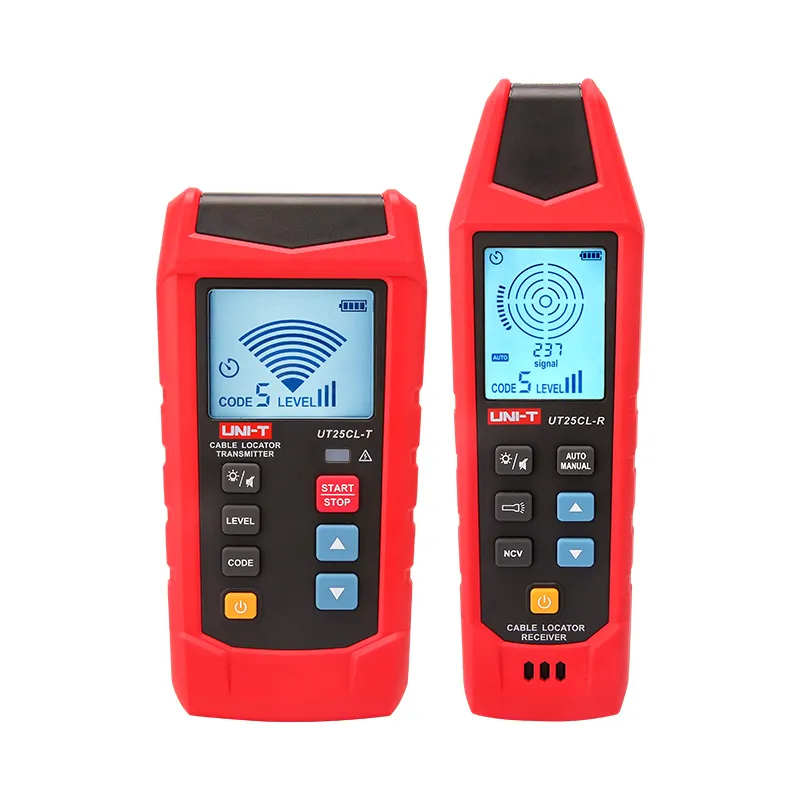

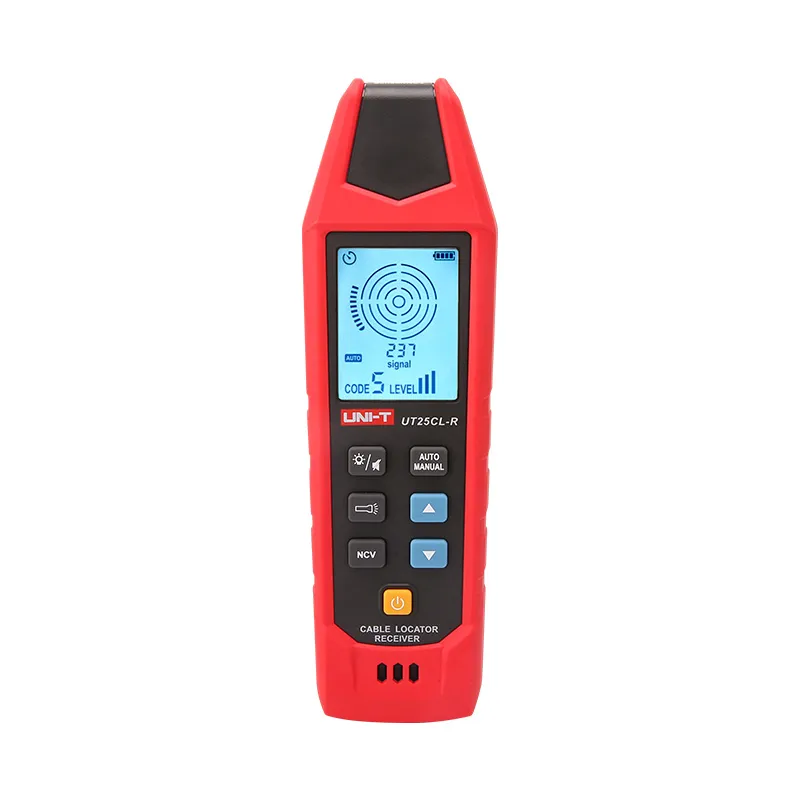

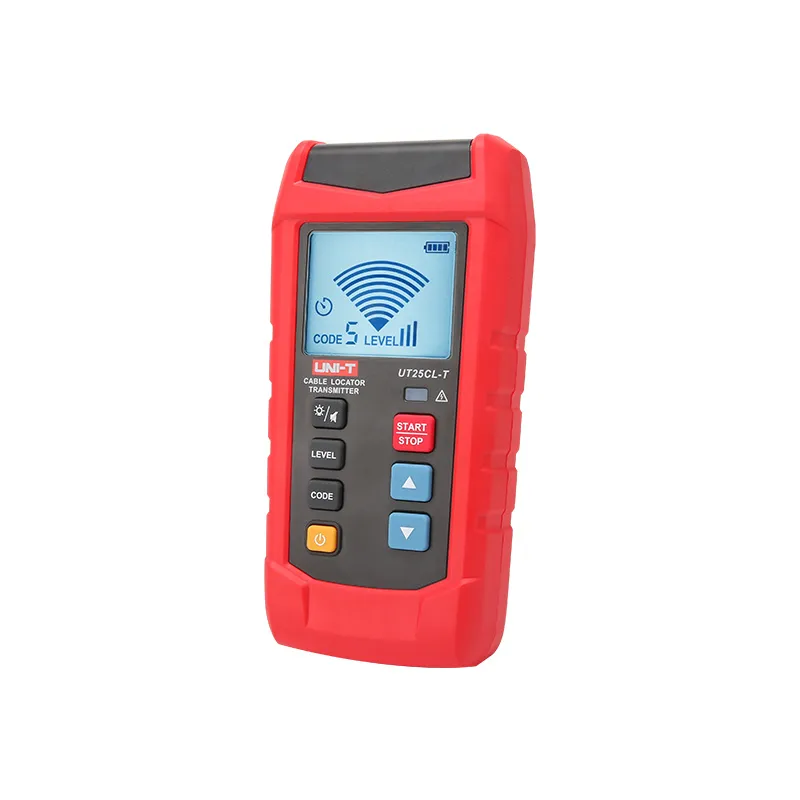

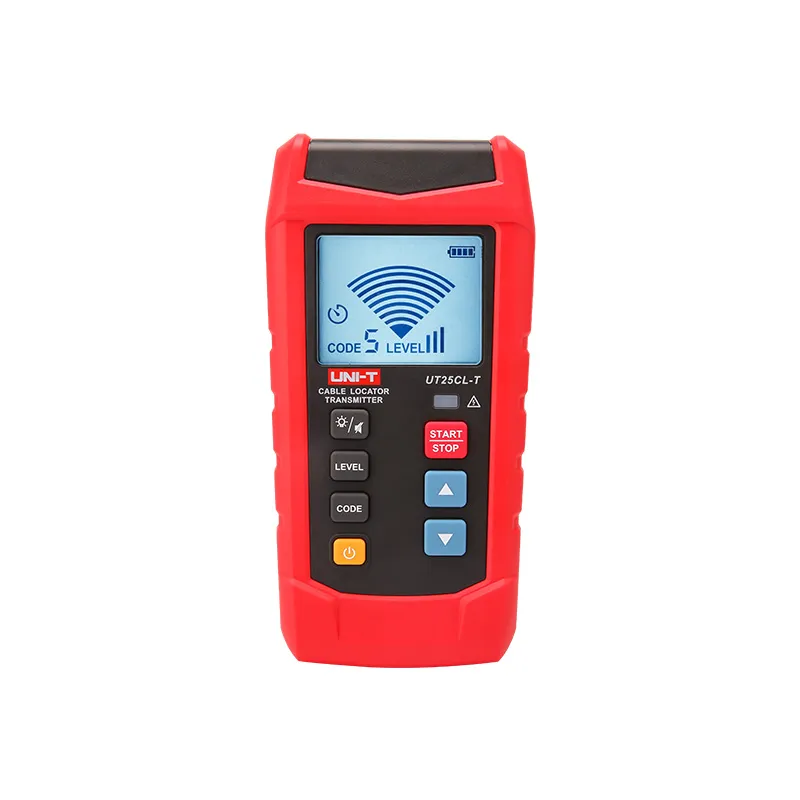

The UNI-T UT25CL Cable Tracker is a powerful device consisting of a transmitter and receiver, designed for efficient tracking of cables and wires. It helps save time and prevent accidental damage during installation or repair.
Key Features
- Easily locates cables and wires
- Detects conductors, breaks, and short circuits
- Traces underground cables
- Finds fuses and associated devices
- Detects short circuits and breaks in metallic underfloor heating systems
- Traces metallic water and heating pipes
- Supports operation with up to 8 transmitters simultaneously
- Equipped with flashlight and backlight for low-light conditions
- Automatic shutdown function
- Supports voltage detection up to 480V AC/DC
- Includes Non-Contact Voltage (NCV) detection function
- Receiver sensitivity can be adjusted automatically or manually
Applications
Ideal for tracing underground cables, locating fuses, and identifying faults in metallic underfloor heating or pipe systems. Suitable for various installation and repair tasks involving cable and pipe tracing.
Key Features
- Easily locates cables and wires
- Detects conductors, breaks, and short circuits
- Traces underground cables
- Finds fuses and associated devices
- Detects short circuits and breaks in metallic underfloor heating systems
- Traces metallic water and heating pipes
- Supports operation with up to 8 transmitters simultaneously
- Equipped with flashlight and backlight for low-light conditions
- Automatic shutdown function
- Supports voltage detection up to 480V AC/DC
- Includes Non-Contact Voltage (NCV) detection function
- Receiver sensitivity can be adjusted automatically or manually
Applications
Ideal for tracing underground cables, locating fuses, and identifying faults in metallic underfloor heating or pipe systems. Suitable for various installation and repair tasks involving cable and pipe tracing.
Automatic Shutdown: Yes
Certifications: CE, RoHS
Display: Segmented LCD (TN, translucent)
ELV Function: Yes (≥25 V)
Flashlight and Backlight: Yes
IP Protection Rating: IP54
NCV Voltage Range: 80~1000 V, 50/60 Hz
Receiver Battery: 6 × 1.5 V AAA
Receiver Sensitivity Adjustment: Automatic or manual (9 levels in manual mode)
Tracing Depth (Single-Pole Mode): 0~2.5 m
Tracing Depth (Two-Pole Mode): 0~0.5 m
Tracing Voltage Range (Energized): 8~480 V AC/DC (50/60 Hz)
Transmitter Battery: 6 × 1.5 V AA
Transmitter Signal Power Levels: 3 levels (1, 2, 3)
Transmitter Support: Up to 8 pcs
Voltage Detection Depth: Around 0.4 m
Working Frequency: 33 kHz
Certifications: CE, RoHS
Display: Segmented LCD (TN, translucent)
ELV Function: Yes (≥25 V)
Flashlight and Backlight: Yes
IP Protection Rating: IP54
NCV Voltage Range: 80~1000 V, 50/60 Hz
Receiver Battery: 6 × 1.5 V AAA
Receiver Sensitivity Adjustment: Automatic or manual (9 levels in manual mode)
Tracing Depth (Single-Pole Mode): 0~2.5 m
Tracing Depth (Two-Pole Mode): 0~0.5 m
Tracing Voltage Range (Energized): 8~480 V AC/DC (50/60 Hz)
Transmitter Battery: 6 × 1.5 V AA
Transmitter Signal Power Levels: 3 levels (1, 2, 3)
Transmitter Support: Up to 8 pcs
Voltage Detection Depth: Around 0.4 m
Working Frequency: 33 kHz
-
