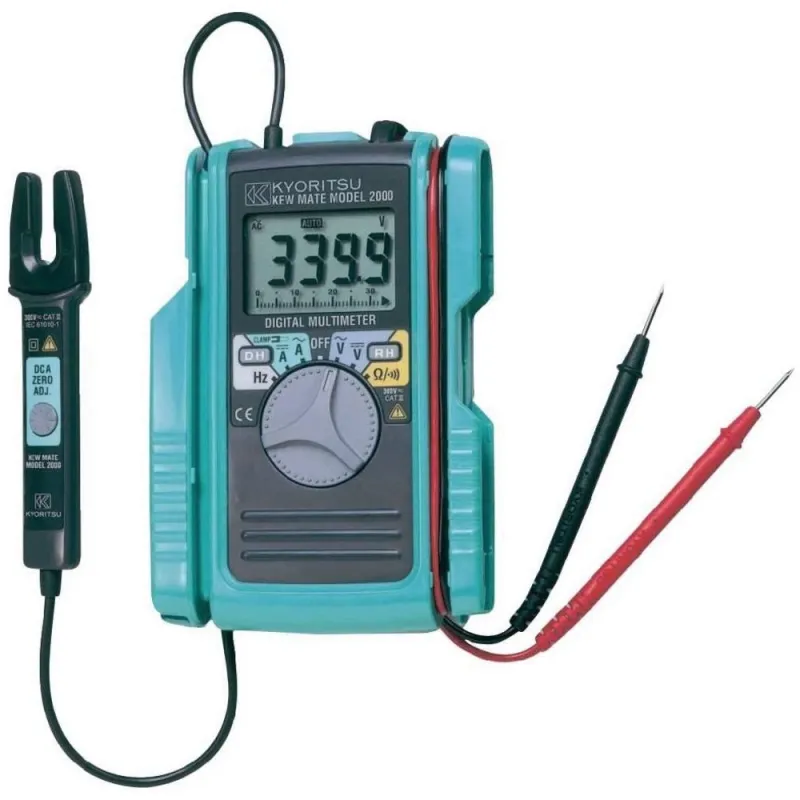

Multimeter + clamp meter KEW 2000 AC DC
SKU:KEW2000
Manufacturer:Kyoritsu
Image is for illustrative purposes only
The KEW MATE 2000 is a versatile digital multimeter featuring an integrated AC/DC open clamp sensor, specifically designed for professionals working in tight or crowded cabling environments. Unlike traditional clamp meters, its open-jaw design allows for seamless current measurements up to 60A without the need to manually open and close the sensor jaws, significantly improving workflow efficiency.
This compact instrument is built for durability and ease of use, featuring a shock-absorbing holster that protects the device during storage and transport. The high-resolution LCD includes a 3400-count bar graph for clear visualization of readings, while the data hold and range hold functions provide flexibility during complex testing. Safety is a priority, as the device meets IEC 61010-1 CAT III 300V standards, ensuring reliable protection during electrical diagnostics.
Energy efficiency is integrated through an automatic power-save function that extends battery life by entering sleep mode after ten minutes of inactivity. With additional capabilities such as continuity checking with an audible buzzer and precise frequency measurements for both voltage and current, the KEW 2000 is an essential all-in-one tool for modern electrical maintenance.
This compact instrument is built for durability and ease of use, featuring a shock-absorbing holster that protects the device during storage and transport. The high-resolution LCD includes a 3400-count bar graph for clear visualization of readings, while the data hold and range hold functions provide flexibility during complex testing. Safety is a priority, as the device meets IEC 61010-1 CAT III 300V standards, ensuring reliable protection during electrical diagnostics.
Energy efficiency is integrated through an automatic power-save function that extends battery life by entering sleep mode after ten minutes of inactivity. With additional capabilities such as continuity checking with an audible buzzer and precise frequency measurements for both voltage and current, the KEW 2000 is an essential all-in-one tool for modern electrical maintenance.
AC current (range): 0-60.0A
AC current (accuracy): ±2.0%rdg ±5dgt (50/60Hz)
DC current (range): 0-±60.0A
DC current (accuracy): ±2.0%rdg ±5dgt
AC voltage (range): 0-600V (Auto-ranging: 3.4V, 34V, 340V, 600V)
AC voltage (accuracy): ±1.5%rdg ±5dgt (50-400Hz)
DC voltage (range): 0-±600V (Auto-ranging: 340mV, 3.4V, 34V, 340V, 600V)
DC voltage (accuracy): ±1.5%rdg ±4dgt
Input impedance: 10MΩ
Resistance (range): 0-33.99MΩ (Auto-ranging: 340Ω, 3.4kΩ, 34kΩ, 340kΩ, 3.4MΩ, 34MΩ)
Resistance (accuracy): ±1.0%rdg ±3dgt (up to 340kΩ), ±5%rdg ±5dgt (3.4MΩ), ±15%rdg ±5dgt (34MΩ)
Continuity buzzer: Beeps below 30±10Ω (on 340Ω range)
Frequency current (range): 0-3.399kHz, 3.4kHz-10kHz
Frequency current (accuracy): ±0.1%rdg ±1dgt
Frequency voltage (range): 0-3.399kHz, 3.4kHz-33.99kHz, 34kHz-300kHz
Frequency voltage (accuracy): ±0.1%rdg ±1dgt
Display: LCD with max 3399 counts and 33-segment bar graph
Sample rate: Numeric approx. 400ms, Bar graph approx. 20ms
Overload protection (Current): AC/DC 72A for 10 seconds
Overload protection (Voltage/Resistance/Frequency): AC/DC 720V for 10 seconds
Safety standards: IEC 61010-1 CAT III 300V, CAT II 600V, Pollution degree 2; IEC 61010-031; IEC 61010-2-032; IEC 61010-2-033
Withstand voltage: AC 3470V for 5 sec between circuit and housing
Insulation resistance: 10MΩ or greater at 1000V
Conductor size: Approx. 6mm diameter max.
Operating temperature: 0-40°C, <85% RH
Storage temperature: -20-60°C, <85% RH
Power source: Two 1.5V DC R03 (UM-4) batteries
Current consumption: Approx. 10mA (Power-save: 10μA)
Dimensions: 128(L) × 87(W) × 24(D)mm
Weight: Approx. 210g
Komplekti kuulub: Two R03 (UM-4) batteries
Instruction Manual
AC current (accuracy): ±2.0%rdg ±5dgt (50/60Hz)
DC current (range): 0-±60.0A
DC current (accuracy): ±2.0%rdg ±5dgt
AC voltage (range): 0-600V (Auto-ranging: 3.4V, 34V, 340V, 600V)
AC voltage (accuracy): ±1.5%rdg ±5dgt (50-400Hz)
DC voltage (range): 0-±600V (Auto-ranging: 340mV, 3.4V, 34V, 340V, 600V)
DC voltage (accuracy): ±1.5%rdg ±4dgt
Input impedance: 10MΩ
Resistance (range): 0-33.99MΩ (Auto-ranging: 340Ω, 3.4kΩ, 34kΩ, 340kΩ, 3.4MΩ, 34MΩ)
Resistance (accuracy): ±1.0%rdg ±3dgt (up to 340kΩ), ±5%rdg ±5dgt (3.4MΩ), ±15%rdg ±5dgt (34MΩ)
Continuity buzzer: Beeps below 30±10Ω (on 340Ω range)
Frequency current (range): 0-3.399kHz, 3.4kHz-10kHz
Frequency current (accuracy): ±0.1%rdg ±1dgt
Frequency voltage (range): 0-3.399kHz, 3.4kHz-33.99kHz, 34kHz-300kHz
Frequency voltage (accuracy): ±0.1%rdg ±1dgt
Display: LCD with max 3399 counts and 33-segment bar graph
Sample rate: Numeric approx. 400ms, Bar graph approx. 20ms
Overload protection (Current): AC/DC 72A for 10 seconds
Overload protection (Voltage/Resistance/Frequency): AC/DC 720V for 10 seconds
Safety standards: IEC 61010-1 CAT III 300V, CAT II 600V, Pollution degree 2; IEC 61010-031; IEC 61010-2-032; IEC 61010-2-033
Withstand voltage: AC 3470V for 5 sec between circuit and housing
Insulation resistance: 10MΩ or greater at 1000V
Conductor size: Approx. 6mm diameter max.
Operating temperature: 0-40°C, <85% RH
Storage temperature: -20-60°C, <85% RH
Power source: Two 1.5V DC R03 (UM-4) batteries
Current consumption: Approx. 10mA (Power-save: 10μA)
Dimensions: 128(L) × 87(W) × 24(D)mm
Weight: Approx. 210g
Komplekti kuulub: Two R03 (UM-4) batteries
Instruction Manual
-
