Digiboks DVB-T2 HD H.265 HEVC HDMI Scart

SKU:KM0550
Manufacturer:Krüger&Matz
Digiboks DVB-T2 HD H.265 HEVC HDMI Scart
Image is for illustrative purposes only

This device enables the reception of digital channels in DVB-T and DVB-T2 standards . What's more, the dvb t tuner Kruger & Matz supports many formats, incl. H.265 HEVC , thus ensuring correct operation even after changes to the encoding standard.


The Kruger & Matz KM0550 terrestrial TV set-top box not only allows you to receive TV channels, but is equipped with many interesting multimedia options that definitely extend its functionality. Thanks to the USB input on the front panelyou can record the watched programs on a USB flash drive or external drive, even planning it several days in advance. What's more, connecting an external medium to the Kruger & Matz TV set-top box allows you to pause and scroll the image. If you want to keep up to date with the TV program, you can use the EPG function , i.e. the 7-day channel guide.

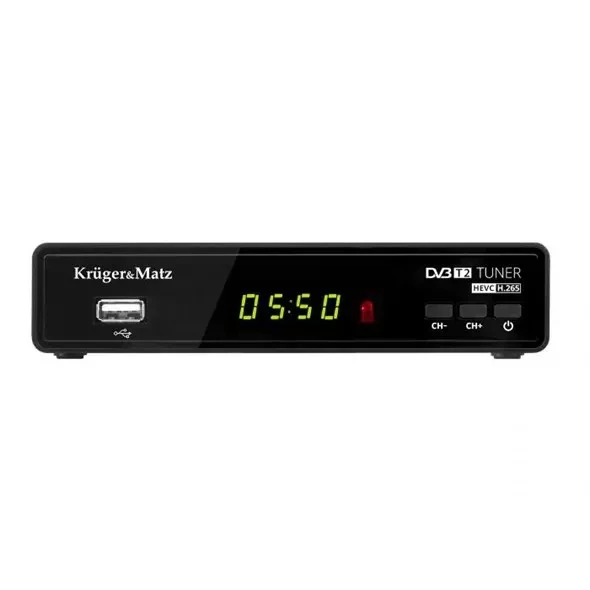

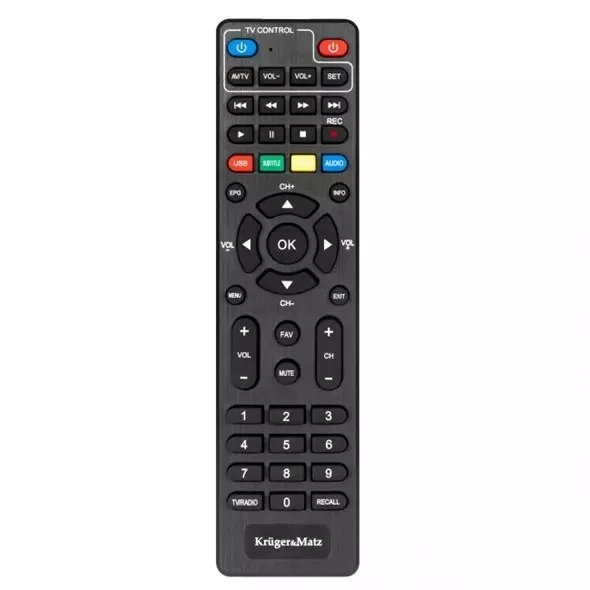

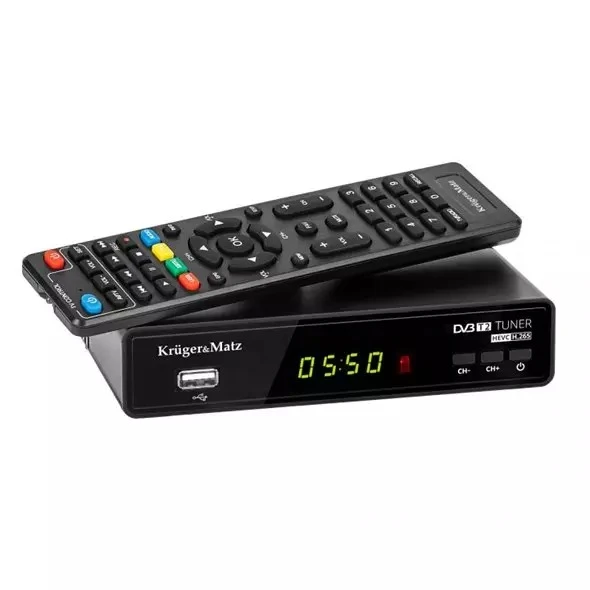

The elegant, black housing in combination with the small size makes the Kruger & Matz DVBT tuner almost invisible on your TV stand. The device is comfortable to use thanks to the basic function buttons and a handy remote control placed on the housing .

LED Display

Fully DVB-T2 / DVB-T compatible

Automatic / manual channel search

Software update, multimedia playback and PVR via USB port

7-day program guide (EPG)

Timeshift

Multilingual menu

Recording programming (PVR)

Displaying signal strength and quality

LCN (Logical Number Channel)

View TV channels

Parental control

Timer

Teletext

Favorite channel list

Weather app

----------------------

SYSTEM

------------- ---------

Processor: Ali 3822P

Internal memory: 32 Mb

RAM: 512 Mb DDR3

Input impedance: 75 Ohm

Video resolution: 1920x1080 px

Video format: Auto, 16: 9, 4: 3 LB, 4: 3 PS

Video decoder: MPEG-2, MPEG-4, H.264, H.265

Supported formats: H.264, H.265 HEVC, MP3, MP4, MKV, JPEG, AVI

Audio decoder: MPEG-1 Layer I / II, MPEG-2 layer I / II , AAC, AAC + / HE-AAC / AC3, Dolby plus

Disk format: FAT32, NTFS

----------------------

TV TUNER

------- ---------------

Frequency range: (VHF) 170 ~ 230MHz; (UHF) 470 ~ 862 MHz

Modulation: QPSK, 16QAM, 64QAM, 256QAM

Band: 7MHz, 8MHz

----------------------

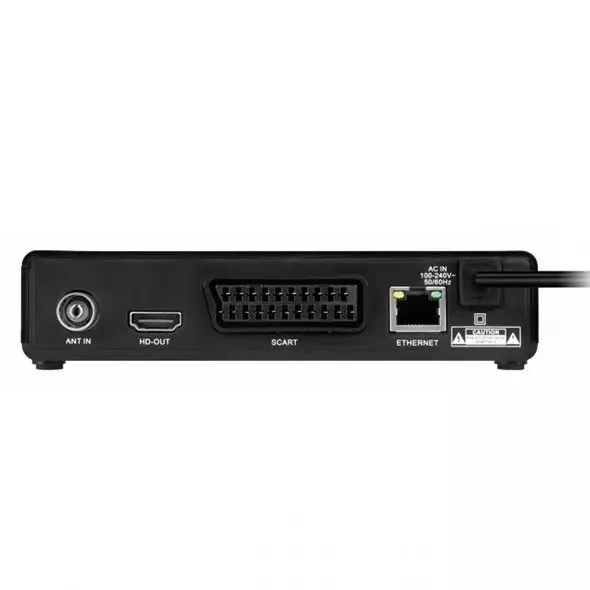

INPUT / OUTPUT

----------------------

SCART

HDMI (576I / P, 720I / P, 1080I / P)

USB 2.0

1x IEC connector (ANT IN)

RJ45

--- -------------------

POWER SUPPLY

----------------------

Input voltage: 110-240V; 50/60 Hz

Remote control: 2x AAA battery

Power consumption: Max. 6 W

Standby power consumption: Max. 1 W

----------------------

PHYSICAL PARAMETERS

----------------------

Dimensions: 150 x 86 x 32 mm

Length of the power cord: 1.1 m

Weight: 226 g

KM0550 kasutusjuhend EN
Download
KM0550 kasutusjuhend EE1.29MB
Download
KM0550 eestikeelne tarkvara V1.1
Download
