SKU:MA1-CRIMP-GE
Manufacturer:
Hirschmann

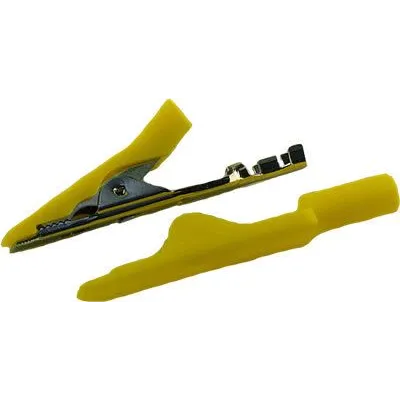

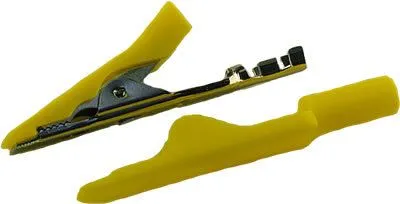

Image is for illustrative purposes only
Miniature alligator clip with high strength insulation and nickel-plated brass / bronze jaws. The flat part of the chuck jaws (fine wire section) allows a secure contacting, when thin wires be pinched.
It is possible to clamp of flat components (soldering eyes) and wires up to a maximum diameter of 4mm.

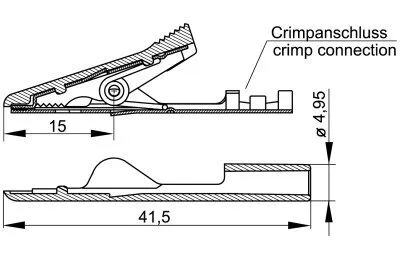

Crimp connection for 0,25mm² up to 0,5mm² wiring, with following assembly of the bottom insulating part (shim). With suitable tool to crimp
It is possible to clamp of flat components (soldering eyes) and wires up to a maximum diameter of 4mm.
Crimp connection for 0,25mm² up to 0,5mm² wiring, with following assembly of the bottom insulating part (shim). With suitable tool to crimp
Connection: Crimp terminal 0.25 mm² up to 0.5 mm²
Rated voltage: 30 VAC / 60 VDC
Measurement cat.: acc. to IEC 61010 O
Rated current: (consider derating curve) 8 A
Material socket: bronze, nickel plated
Housing material: PP
Temperature range: acc. To IEC61010 -25 °C to +100 °C
Inflammability class: acc. to UL 94 (only valid for basic material of housing) HB
Clamping range: 4 mm
Rated voltage: 30 VAC / 60 VDC
Measurement cat.: acc. to IEC 61010 O
Rated current: (consider derating curve) 8 A
Material socket: bronze, nickel plated
Housing material: PP
Temperature range: acc. To IEC61010 -25 °C to +100 °C
Inflammability class: acc. to UL 94 (only valid for basic material of housing) HB
Clamping range: 4 mm
