FNIRSI® SAG-55 Intelligent 550W Hot Air Gun

SKU:FNIRSI SAG-55

Manufacturer:FNIRSI

New

FNIRSI® SAG-55 Intelligent 550W Hot Air Gun

Image is for illustrative purposes only

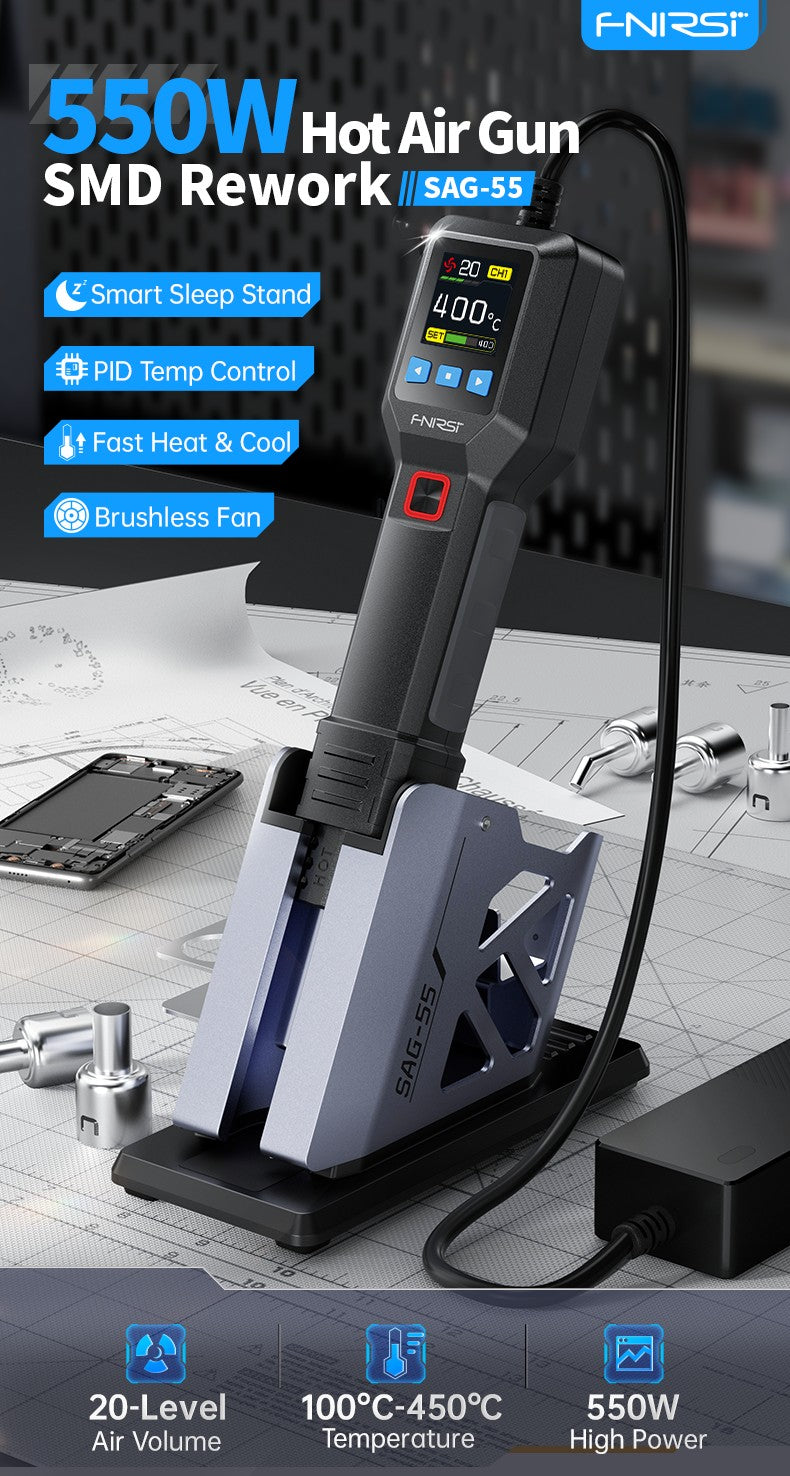

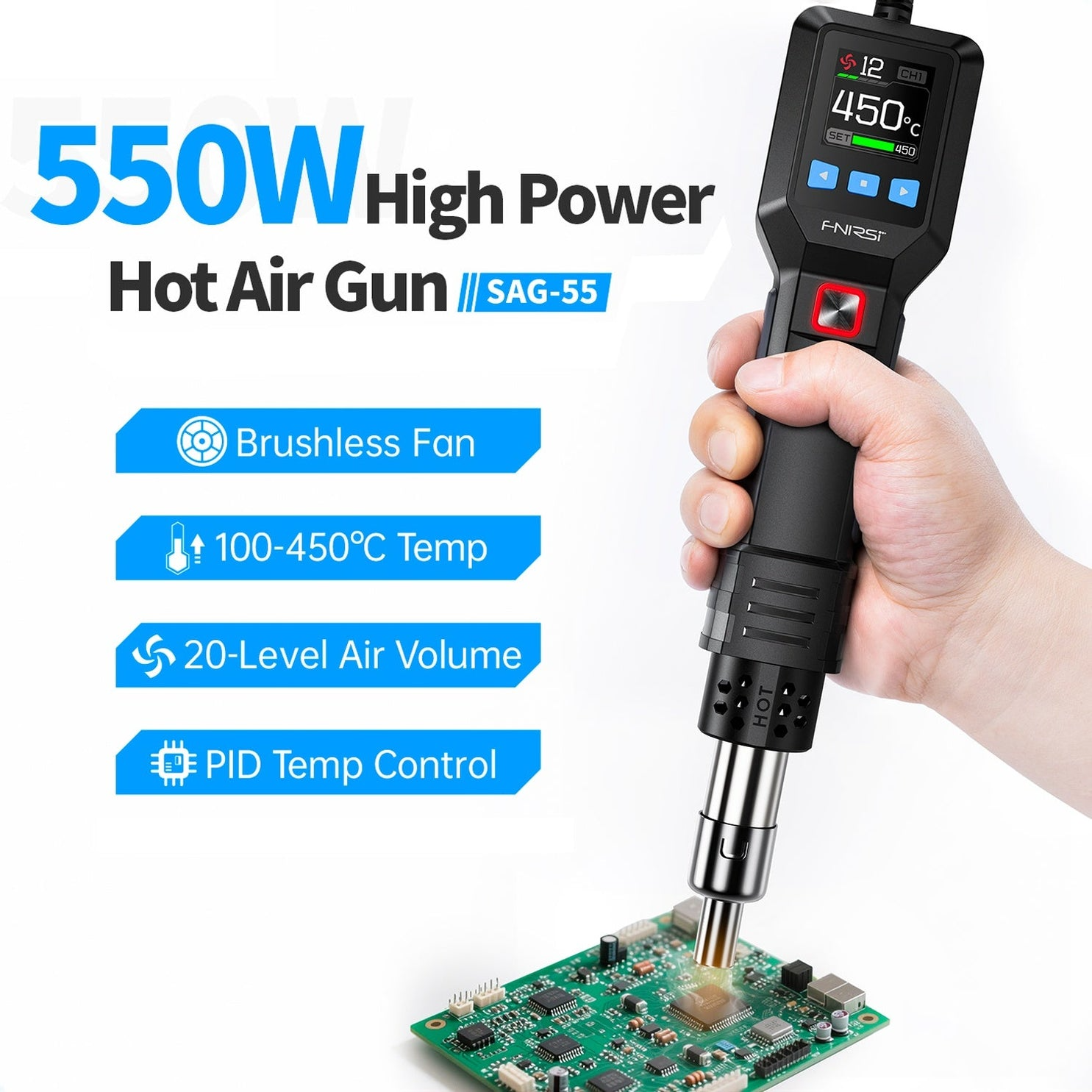

FNIRSI SAG-55 is a portable smart 550W hot air gun designed for a wide range of soldering and electronics repair tasks.

Key Features

- 550W power output.

- Precise PID temperature control ensures fast heating with minimal thermal shock, extending heating element lifespan.

- Brushless fan with 1-20 level adjustable airflow, offering low noise and long service life.

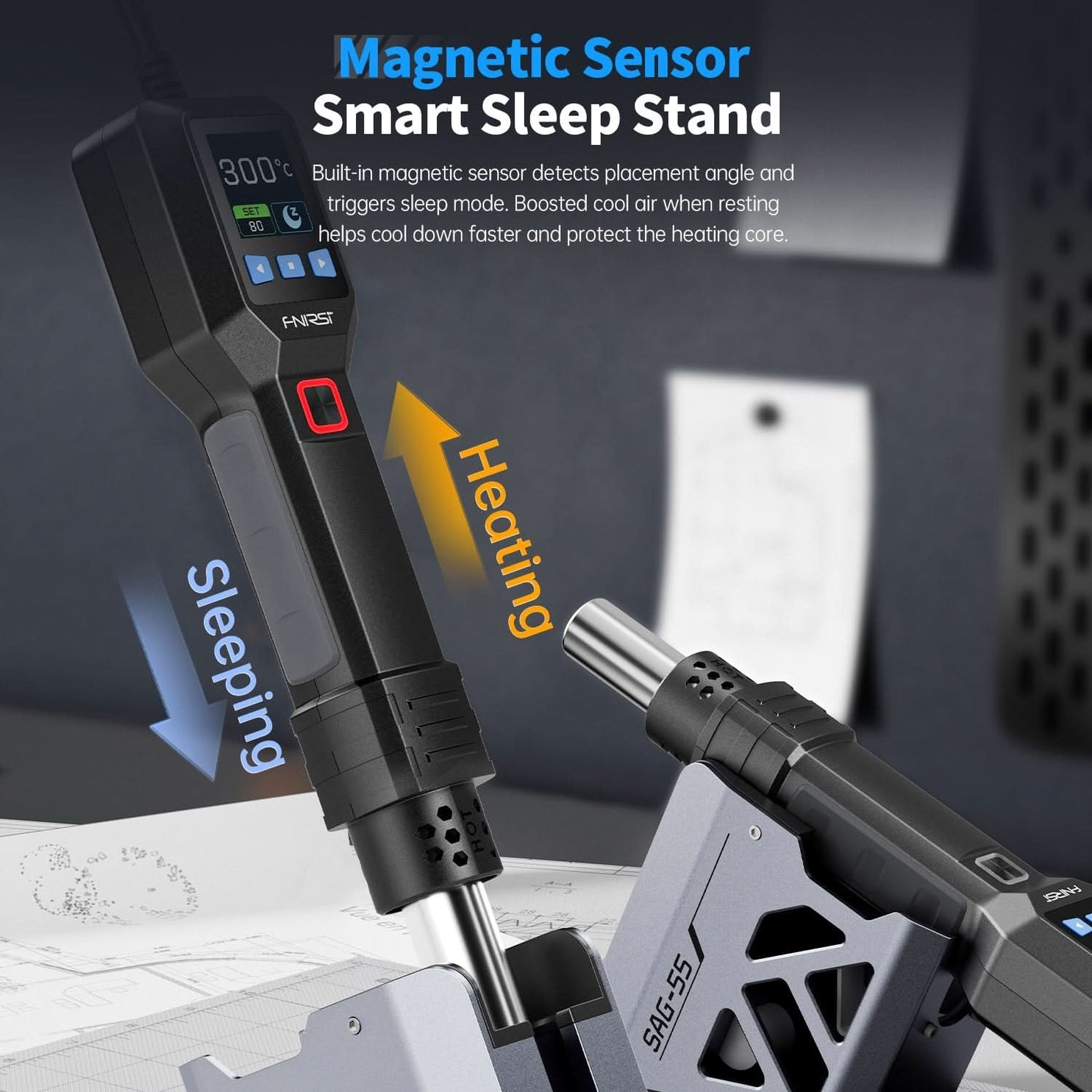

- Integrated magnetic sensor in the handle for automatic heating activation when lifted and standby mode when placed on the stand.

- Clear 1.54-inch LCD display shows operating status and temperature changes.

- Three customizable presets for quick switching of temperature and airflow settings.

- Quick cooling function helps prolong the heater's lifespan.

- Ergonomic, compact, and portable design for comfortable use and easy transport.

- Compatible with 850 series nozzles.

Applications

Ideal for both professionals and hobbyists undertaking various electronics soldering and repair projects due to its precise control, portability, and user-friendly features.

AC Power Cord Length: 1.2m
Airflow Rate: 80L/min, Adjustable from 1-20 levels
Auto off: Configurable (Never Shutdown, 5 min, 10 min, 15 min)
Body Dimensions (Handle excluding nozzle): 260 x 60 x 40 mm
Brightness: 1 ~ 10
Certificates: CE
Cooling: Close / Open
Display Screen Size: 1.54-inch LCD (240*240)
Frequency: 50-60Hz
Handle Silicone Cable Length: 1.2m
Heating Tube Size: Length 80mm, Diameter 21.6mm (compatible with 850 series nozzles)
Language: Simplified Chinese / English
Max Power (Heating Power): 550W
Model: SAG-55
Operating Noise: <65dB
Overall Weight (including accessories): ≈1391g
Power Adapter Dimensions: 118 x 50 x 30.6 mm
Power Supply (Input Voltage): 100-140V AC (US Plug) / 200-240V AC (EU Plug)
Shortcut: Fan speed 1‒20, Temperature 100‒450°C
Standby Power: <0.7W
Standby Temperature: 70℃ ~ 100℃
Step: 5℃ ~ 25℃
Temp CAL: 120°C, 220°C, 320°C, 420°C
Temperature Control Range: 100℃-450℃ (212℉-842℉)
Unit: Celsius (°C) / Fahrenheit (°F)

FNIRSI SAG-55 Manual EN1.69MB
Download

Regular price

85.00 €

Customer price80.75 €-5%
