Laboratory power supply, 1ch 0...30V 5A, 2.8" LCD, programmable

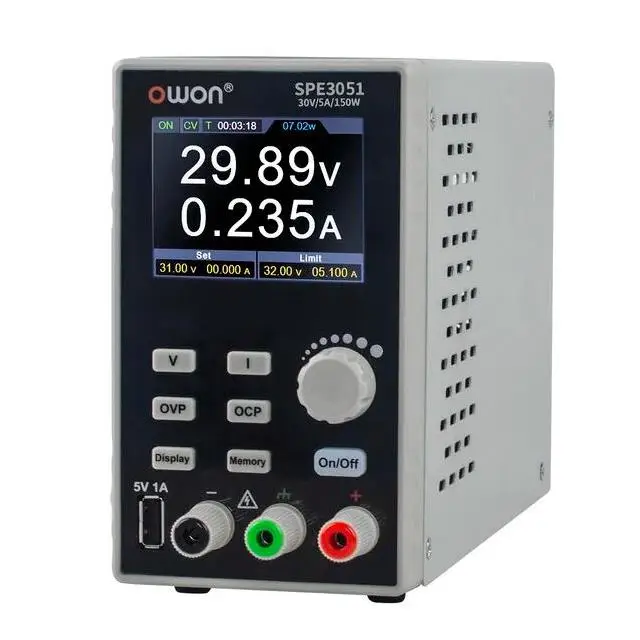

The OWON SPE3051 is a single-channel programmable laboratory DC power supply, providing adjustable voltage and current outputs for various testing and development applications.

Key Specifications

- Output Voltage: 0-30 V DC

- Output Current: 0-5 A

- Maximum Output Power: 150 W

Key Features

- Equipped with a 2.8-inch LCD display for clear monitoring.

- Display shows set and actual voltage/current, output power, and operating time.

- Features low ripple and noise for clean power output.

- Includes essential protection functions: Over Voltage Protection (OVP) and Over Current Protection (OCP).

- Supports RS232, SCPI, USB, and LAN communication interfaces for remote control and firmware updates.

- Allows for list waveform editing and output.

- Provides smart switching between Constant Current (CC) and Constant Voltage (CV) modes.

- Compact design facilitates portability.
