Laboratory power supply, 1ch 0...80V 0...20A, programmable
SKU:SPE8205
Manufacturer:OWON
New
Image is for illustrative purposes only

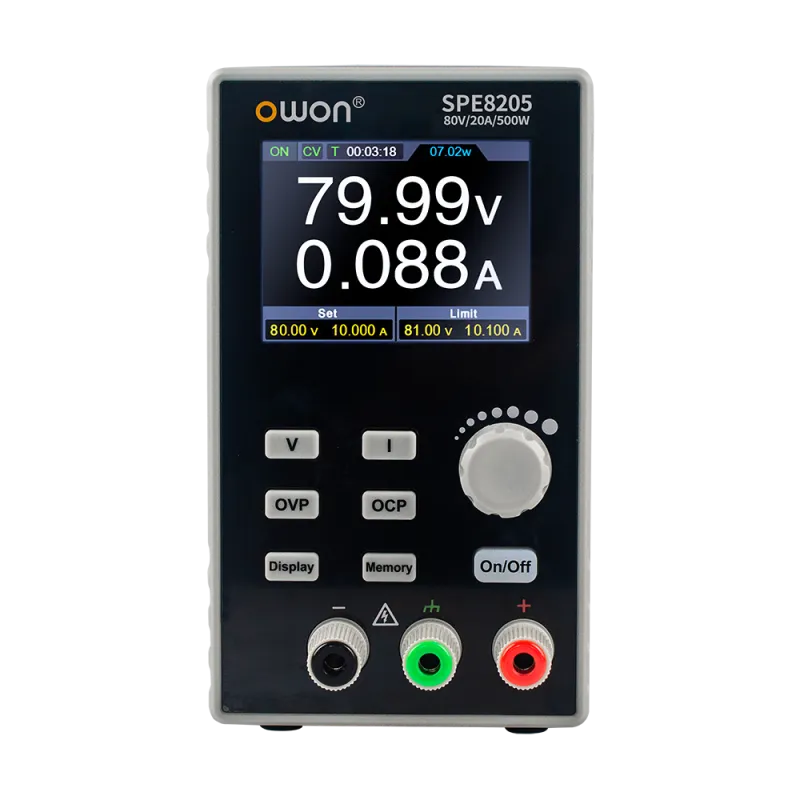

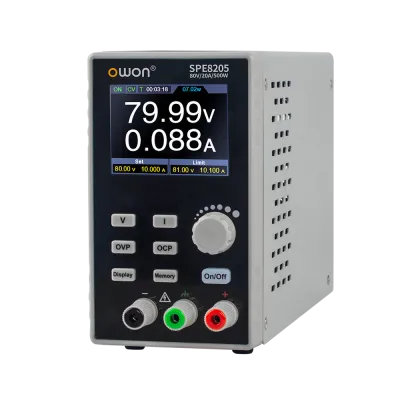

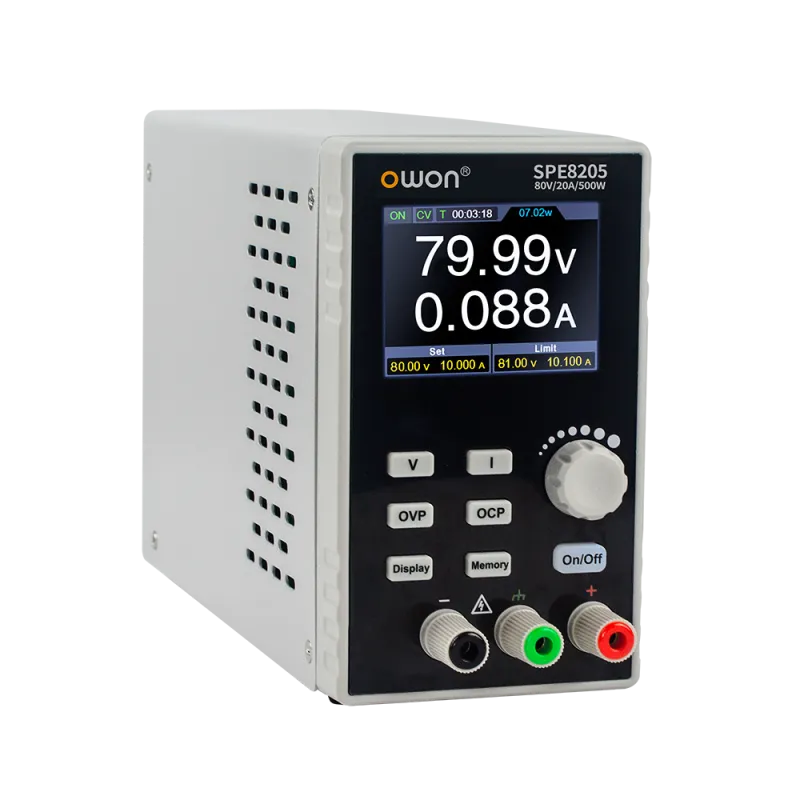

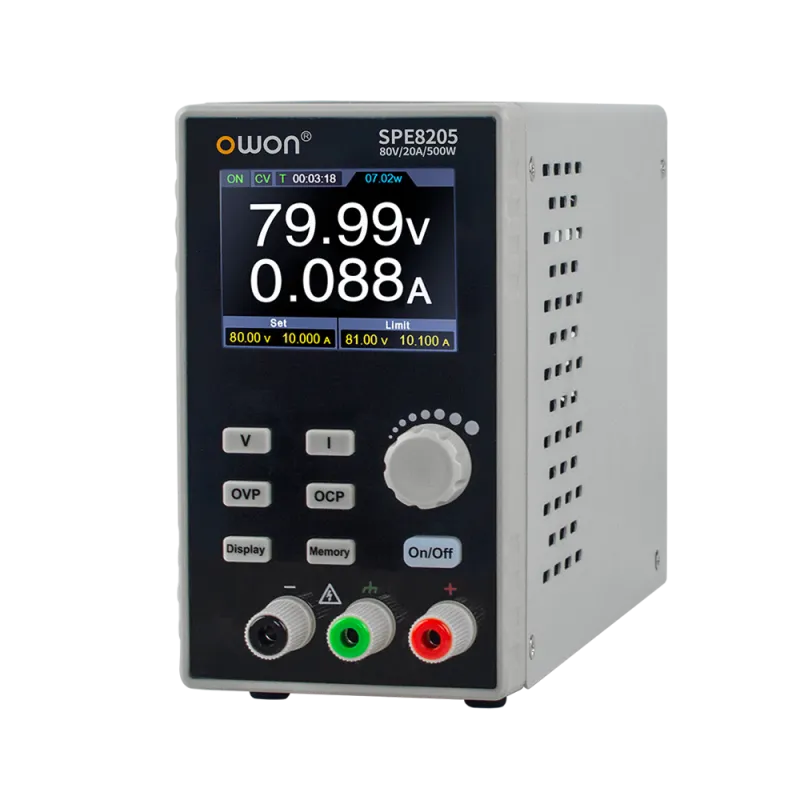

The OWON SPE8205 is a programmable single-channel laboratory power supply offering up to 80 V output voltage and 20 A output current, with a maximum power of 500 W. It features a compact design and a 2.8-inch color IPS LCD for clear display of set and actual values.
Key Features
- Single-channel output: Up to 80 V, 20 A, 500 W maximum power.
- Compact form factor.
- 2.8-inch color IPS LCD for simultaneous display of set and actual voltage, current, and power values.
- Supports programming with storage for up to four parameter groups.
- Features list editing and time-programmed output functions (up to ten groups).
- Low ripple and noise output.
- Integrated protection functions: Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
- USB interface with SCPI protocol support for PC communication.
- Intelligent cooling system with variable fan speed control.
Applications
This power supply is suitable for various applications, including phone and laptop repair, PCB aging tests, battery charging and discharging experiments, and use in laboratories and educational institutions.
Key Features
- Single-channel output: Up to 80 V, 20 A, 500 W maximum power.
- Compact form factor.
- 2.8-inch color IPS LCD for simultaneous display of set and actual voltage, current, and power values.
- Supports programming with storage for up to four parameter groups.
- Features list editing and time-programmed output functions (up to ten groups).
- Low ripple and noise output.
- Integrated protection functions: Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
- USB interface with SCPI protocol support for PC communication.
- Intelligent cooling system with variable fan speed control.
Applications
This power supply is suitable for various applications, including phone and laptop repair, PCB aging tests, battery charging and discharging experiments, and use in laboratories and educational institutions.
Dimensions (W×H×D): 82mm × 142mm × 226mm
Display: 2.8-inch 200ppm/℃ (Current)
Output Voltage: 0-80V
Readback Accuracy (Current, 25℃±5℃): ≤0.05% ± 10mA
Readback Accuracy (Voltage, 25℃±5℃): ≤0.05% ± 20mV
Readback Resolution (Current): 1mA
Readback Resolution (Voltage): 10mV
Readback Temperature Coefficient: 100ppm/℃ (Voltage); 200ppm/℃ (Current)
Response Time (50%-100% rated load): ≤5.0ms
Ripple & Noise (Current rms): ≤15mA
Ripple & Noise (Voltage Vp-p): ≤50mVp-p
Setting Accuracy (Current, 25℃±5℃): ≤0.05% ± 10mA
Setting Accuracy (Voltage, 25℃±5℃): ≤0.05% ± 20mV
Setting Resolution (Current): 1mA
Setting Resolution (Voltage): 10mV
Storage: 4 groups of data
Weight: Approx. 1.8 kg
Display: 2.8-inch 200ppm/℃ (Current)
Output Voltage: 0-80V
Readback Accuracy (Current, 25℃±5℃): ≤0.05% ± 10mA
Readback Accuracy (Voltage, 25℃±5℃): ≤0.05% ± 20mV
Readback Resolution (Current): 1mA
Readback Resolution (Voltage): 10mV
Readback Temperature Coefficient: 100ppm/℃ (Voltage); 200ppm/℃ (Current)
Response Time (50%-100% rated load): ≤5.0ms
Ripple & Noise (Current rms): ≤15mA
Ripple & Noise (Voltage Vp-p): ≤50mVp-p
Setting Accuracy (Current, 25℃±5℃): ≤0.05% ± 10mA
Setting Accuracy (Voltage, 25℃±5℃): ≤0.05% ± 20mV
Setting Resolution (Current): 1mA
Setting Resolution (Voltage): 10mV
Storage: 4 groups of data
Weight: Approx. 1.8 kg
-
