SKU:OWH80120-1800
Manufacturer:
OWON
Image is for illustrative purposes only

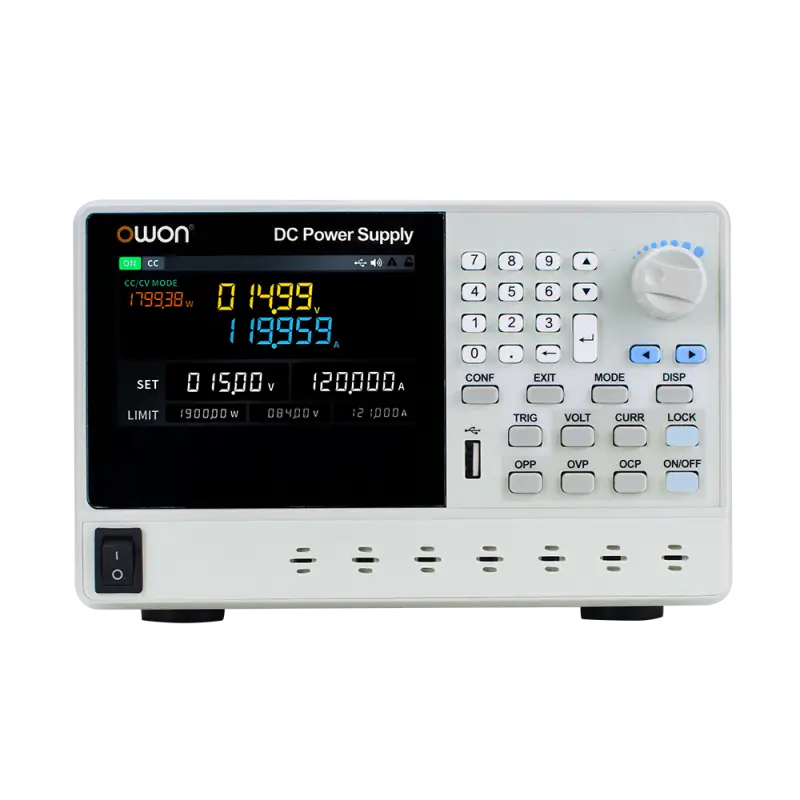

The OWON OWH series programmable laboratory power supply is a high-performance tool delivering up to 1800W of output power, making it ideal for demanding industrial and research applications. It features a clear 4.3-inch LCD TFT display that provides real-time monitoring of voltage and current with exceptional clarity.
Designed for versatility, this power supply includes multiple communication interfaces such as USB, LAN, RS232, and RS485, allowing for seamless integration into automated testing systems. Users benefit from advanced functionality like a 72-hour event log and built-in memory for data storage. To ensure maximum safety, the device is equipped with a comprehensive suite of protections, including OCP, OVP, and SCP, safeguarding both the equipment and the connected load.
Designed for versatility, this power supply includes multiple communication interfaces such as USB, LAN, RS232, and RS485, allowing for seamless integration into automated testing systems. Users benefit from advanced functionality like a 72-hour event log and built-in memory for data storage. To ensure maximum safety, the device is equipped with a comprehensive suite of protections, including OCP, OVP, and SCP, safeguarding both the equipment and the connected load.
Manufacturer: OWON
Type of laboratory power supply: programmable
Kind of power supply: single-channel
Number of channels: 1
Output voltage: 0...80V DC
Output current: 0...120A
Kind of display used: LCD TFT 4,3"
Output voltage resolution: 10mV
Output current resolution: 1mA
Voltage stabilisation: ≤0.03%+ 20mV
Current stabilisation: ≤0.05%+ 30mAM
Maximum power: 1800W
Manufacturer series: OWH
Protection: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Under Voltage Protection/Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), BOP (Brown-Out Protection)
Dimensions: 215x133x446.2mm
Operating temperature: 0...40°C
Supply voltage: 198...240V AC
Interface: LAN, RS232, RS485, USB
Measuring instrument features: 72 hour event log, high accuracy, memory built-in
Gross weight: 6.5 kg
In the box: mains cable
USB cable
user's manual
Type of laboratory power supply: programmable
Kind of power supply: single-channel
Number of channels: 1
Output voltage: 0...80V DC
Output current: 0...120A
Kind of display used: LCD TFT 4,3"
Output voltage resolution: 10mV
Output current resolution: 1mA
Voltage stabilisation: ≤0.03%+ 20mV
Current stabilisation: ≤0.05%+ 30mAM
Maximum power: 1800W
Manufacturer series: OWH
Protection: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Under Voltage Protection/Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), BOP (Brown-Out Protection)
Dimensions: 215x133x446.2mm
Operating temperature: 0...40°C
Supply voltage: 198...240V AC
Interface: LAN, RS232, RS485, USB
Measuring instrument features: 72 hour event log, high accuracy, memory built-in
Gross weight: 6.5 kg
In the box: mains cable
USB cable
user's manual
-
