SKU:OWH67010D-80
Manufacturer:
OWON
Image is for illustrative purposes only

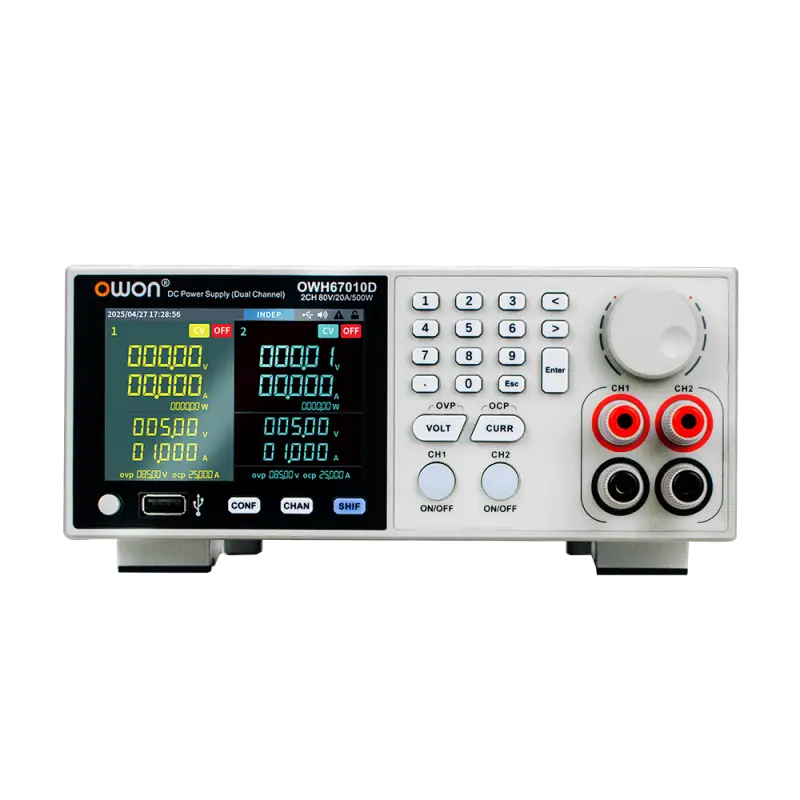

The OWON OWH67010D-80PV is a high-performance programmable power supply designed for demanding laboratory and industrial environments. This multi-channel unit features a vibrant 3.95-inch LCD display, providing clear and precise visualization of all voltage and current parameters. A standout feature is its integrated PV simulation capability, which allows for accurate testing and development of solar-related electronics.
Engineered for maximum versatility, the device supports CV/CC crossover operation and allows for both series and parallel connections to meet diverse power requirements. Users can rely on its extensive protection suite, including OCP, OVP, and OTP, to ensure the safety of connected components. With built-in memory and support for Modbus and SCPI protocols via LAN, RS485, and USB interfaces, it integrates seamlessly into automated testing systems.
Engineered for maximum versatility, the device supports CV/CC crossover operation and allows for both series and parallel connections to meet diverse power requirements. Users can rely on its extensive protection suite, including OCP, OVP, and OTP, to ensure the safety of connected components. With built-in memory and support for Modbus and SCPI protocols via LAN, RS485, and USB interfaces, it integrates seamlessly into automated testing systems.
Manufacturer: OWON
Type of laboratory power supply: programmable
Kind of power supply: multi-channel
Kind of display used: LCD 3.9"
Number of channels: 2
Output voltage: 0...80V DC
Output current: 0...20A
Output voltage resolution: 10mV
Output current resolution: 1mA
Voltage stabilisation: ≤0.05%+ 20mV
Current stabilisation: ≤0.05%+ 30mA
Dimensions: 215x88x453mm
Protection: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), BOP (Brown-Out Protection / UVLO)
Manufacturer series: OWH
Maximum power: 1kW
Operating temperature: 0...40°C
Support: Modbus, SCPI
Supply voltage: 100...240V AC
Measuring instrument features: automatic discharge after test, CV/CC crossover operation, for parallel connection, for series connection, memory built-in, PV simulation
Interface: LAN, RS485, USB
Gross weight: 6.5 kg
In the box: mains cable
user's manual
Type of laboratory power supply: programmable
Kind of power supply: multi-channel
Kind of display used: LCD 3.9"
Number of channels: 2
Output voltage: 0...80V DC
Output current: 0...20A
Output voltage resolution: 10mV
Output current resolution: 1mA
Voltage stabilisation: ≤0.05%+ 20mV
Current stabilisation: ≤0.05%+ 30mA
Dimensions: 215x88x453mm
Protection: OCP (Over Current Protection), OPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), BOP (Brown-Out Protection / UVLO)
Manufacturer series: OWH
Maximum power: 1kW
Operating temperature: 0...40°C
Support: Modbus, SCPI
Supply voltage: 100...240V AC
Measuring instrument features: automatic discharge after test, CV/CC crossover operation, for parallel connection, for series connection, memory built-in, PV simulation
Interface: LAN, RS485, USB
Gross weight: 6.5 kg
In the box: mains cable
user's manual
-
