Enameled winding wire 1.0mm (1.06) 500g, approx. 70m defective plastic spool broken
SKU:DNE1.00-500-DEF
Manufacturer:Indel
New

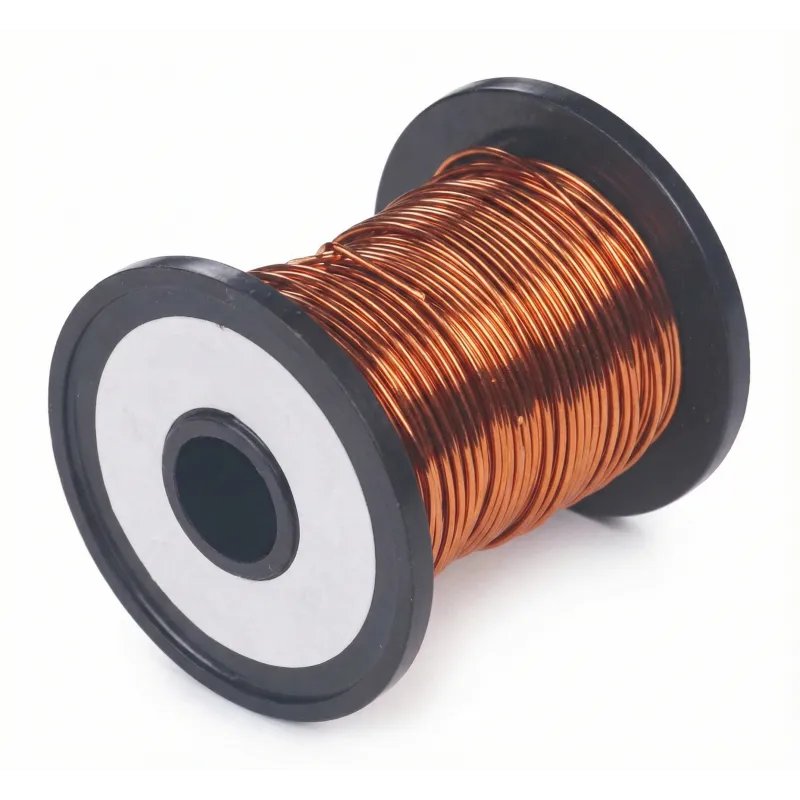

Image is for illustrative purposes only
This high-quality copper winding wire (enamel wire) from Indel is designed for the professional manufacturing and repair of various electromagnetic components. It provides a reliable solution for demanding electrical applications requiring high thermal and chemical durability.
Key Features
- High thermal resistance capable of withstanding operating temperatures up to 200°C.
- Superior chemical stability against aggressive environments, including freon and transformer oils.

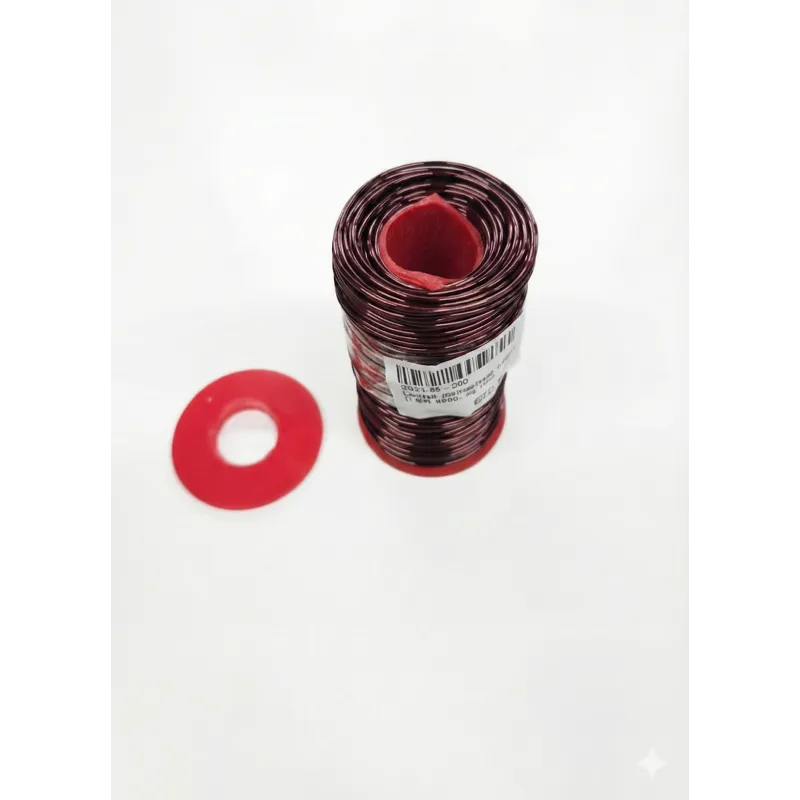

- Packaging Note: This specific -DEF SKU is supplied on a damaged or broken plastic spool; however, the technical integrity and performance specifications of the wire remain fully intact.
Applications
Its robust construction and high resistance properties make it ideal for the construction and repair of transformers, electric motors, chokes, and induction coils.
Key Features
- High thermal resistance capable of withstanding operating temperatures up to 200°C.
- Superior chemical stability against aggressive environments, including freon and transformer oils.
- Packaging Note: This specific -DEF SKU is supplied on a damaged or broken plastic spool; however, the technical integrity and performance specifications of the wire remain fully intact.
Applications
Its robust construction and high resistance properties make it ideal for the construction and repair of transformers, electric motors, chokes, and induction coils.
Manufacturer: Indel
Wire Type: DNE (Enamelled Copper Winding Wire)
Core Material: Copper (Cu)
Nominal Diameter: 1.0 mm
Outer Diameter (with insulation): 1.06 mm
Weight: 500 g
Approximate Length: 70 m
Operating Temperature: -65...+200 °C
Insulation Type: Single coated enamel (polyamidoimide)
Resistance: Freon, transformer oil
Wire Type: DNE (Enamelled Copper Winding Wire)
Core Material: Copper (Cu)
Nominal Diameter: 1.0 mm
Outer Diameter (with insulation): 1.06 mm
Weight: 500 g
Approximate Length: 70 m
Operating Temperature: -65...+200 °C
Insulation Type: Single coated enamel (polyamidoimide)
Resistance: Freon, transformer oil
