SKU:EMS100
New
Image is for illustrative purposes only

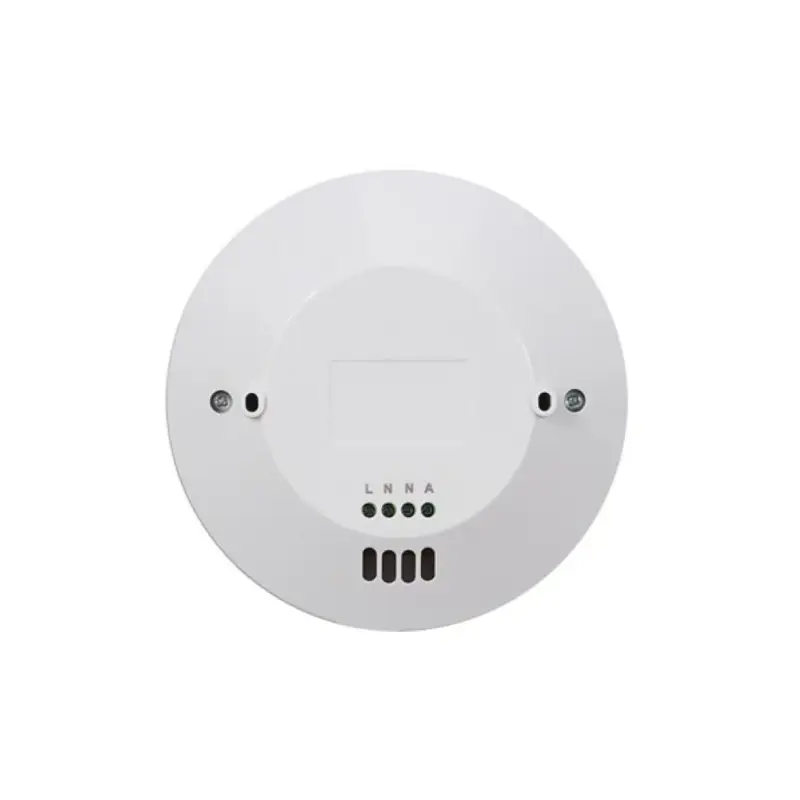

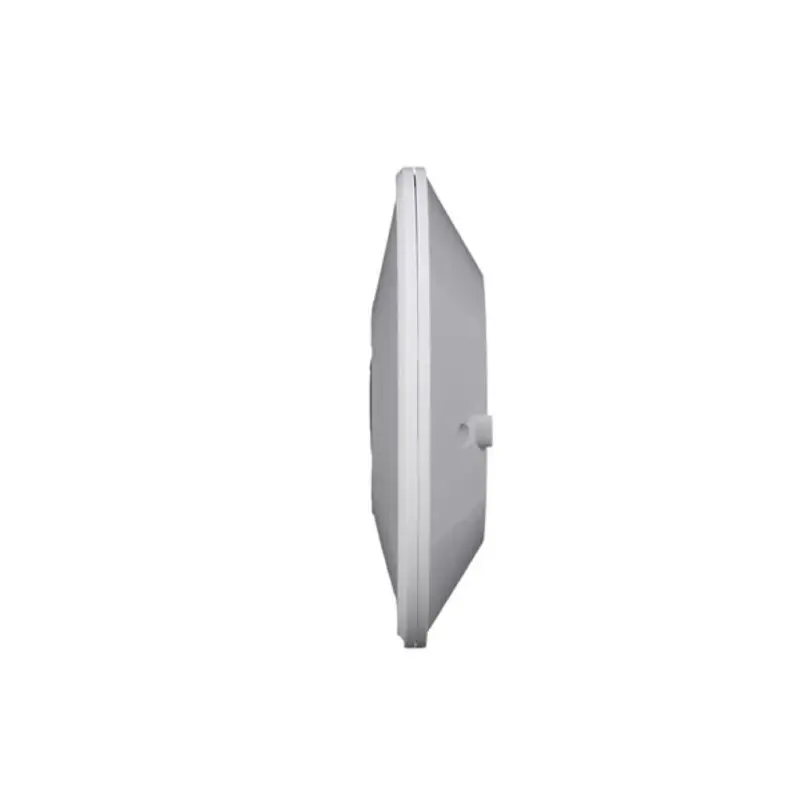

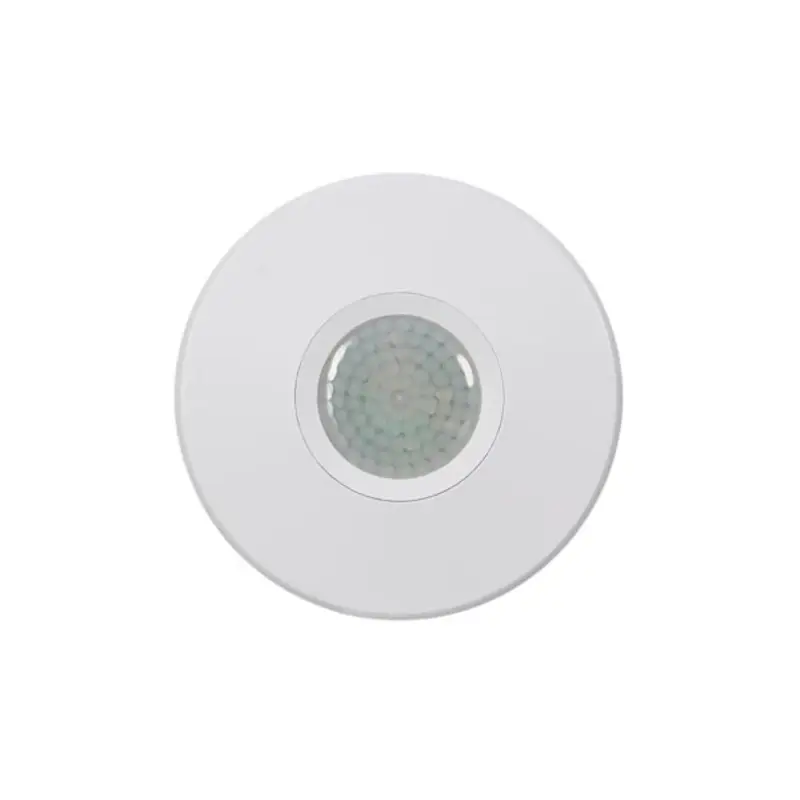

This ceiling-mounted PIR motion sensor is designed for automatic indoor lighting control and energy management. It features automatic day and night detection capabilities to ensure efficient operation based on ambient light levels.
The device is equipped with manual controls to adjust sensitivity (SENS), activation time (TIME), and light threshold (LUX). Designed for recessed mounting, the sensor provides a discreet and integrated appearance on ceiling surfaces.
The device is equipped with manual controls to adjust sensitivity (SENS), activation time (TIME), and light threshold (LUX). Designed for recessed mounting, the sensor provides a discreet and integrated appearance on ceiling surfaces.
Switching: relay
Detection angle: 360°
Detection distance: 2-6 m (< 24 °C)
Max load (incandescent): 2000 W / 9 A
Max load (fluorescent/LED): 1000 W / 4.5 A
Power supply: 220-240 V~ 50/60 Hz
Operating temperature: -10 °C ... +40 °C
Humidity: < 93 % RH
Time delay: 10 s ± 3 s ... 7 min ± 2 min (adjustable)
Light sensitivity: < 10 lx - 2000 lx
Dimensions: Ø 120 x 29 x 5 mm
Weight: 100 g
Detection angle: 360°
Detection distance: 2-6 m (< 24 °C)
Max load (incandescent): 2000 W / 9 A
Max load (fluorescent/LED): 1000 W / 4.5 A
Power supply: 220-240 V~ 50/60 Hz
Operating temperature: -10 °C ... +40 °C
Humidity: < 93 % RH
Time delay: 10 s ± 3 s ... 7 min ± 2 min (adjustable)
Light sensitivity: < 10 lx - 2000 lx
Dimensions: Ø 120 x 29 x 5 mm
Weight: 100 g
-
