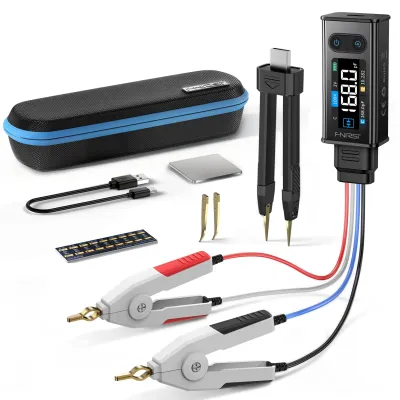

LCR-ST2 Measuring Tweezers SMD LCR ESR 22mF 10H Kelvin Test Lead

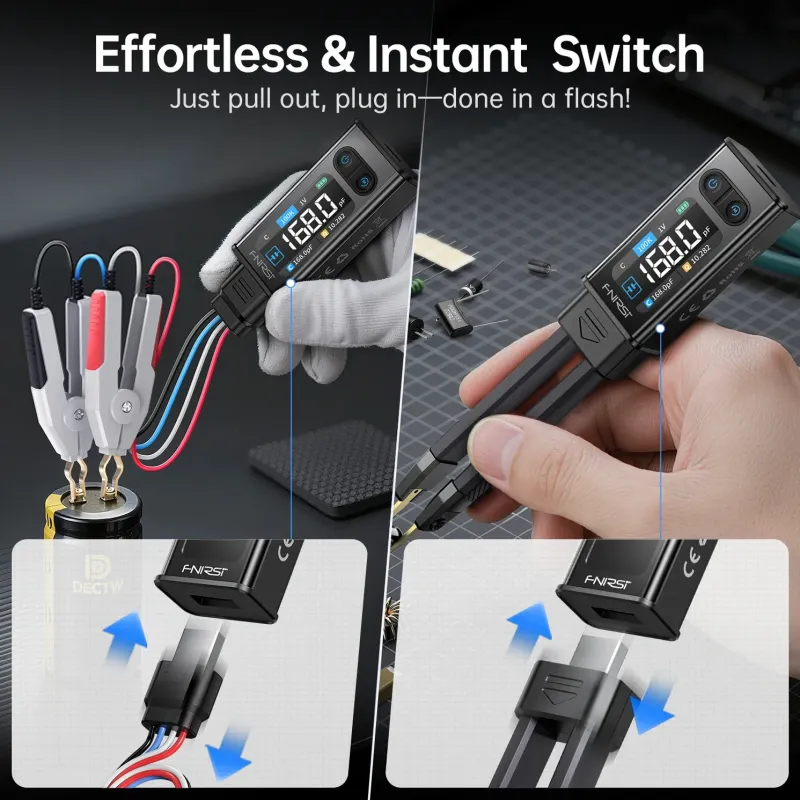

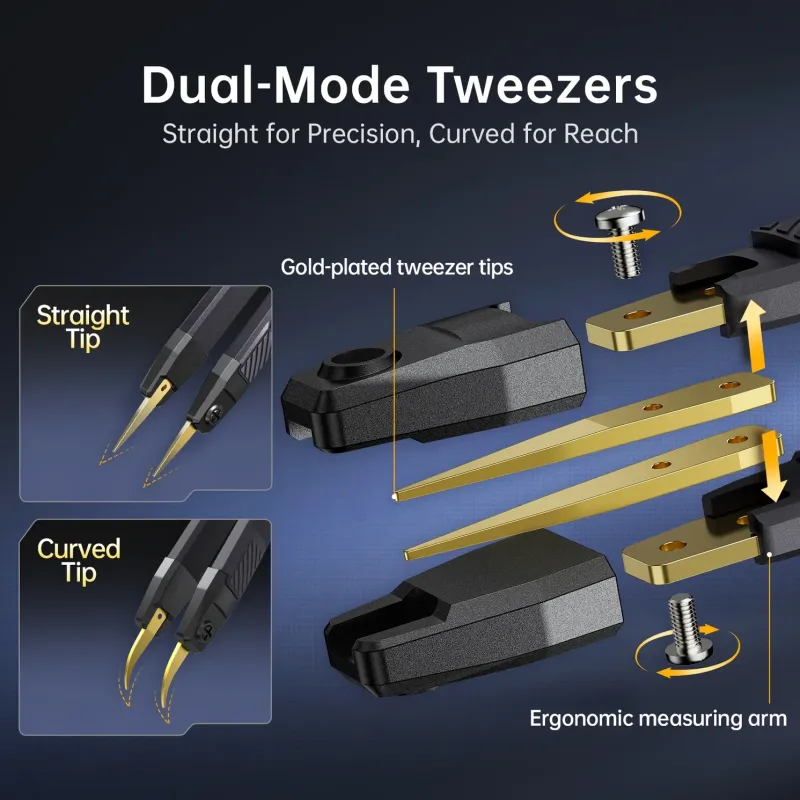

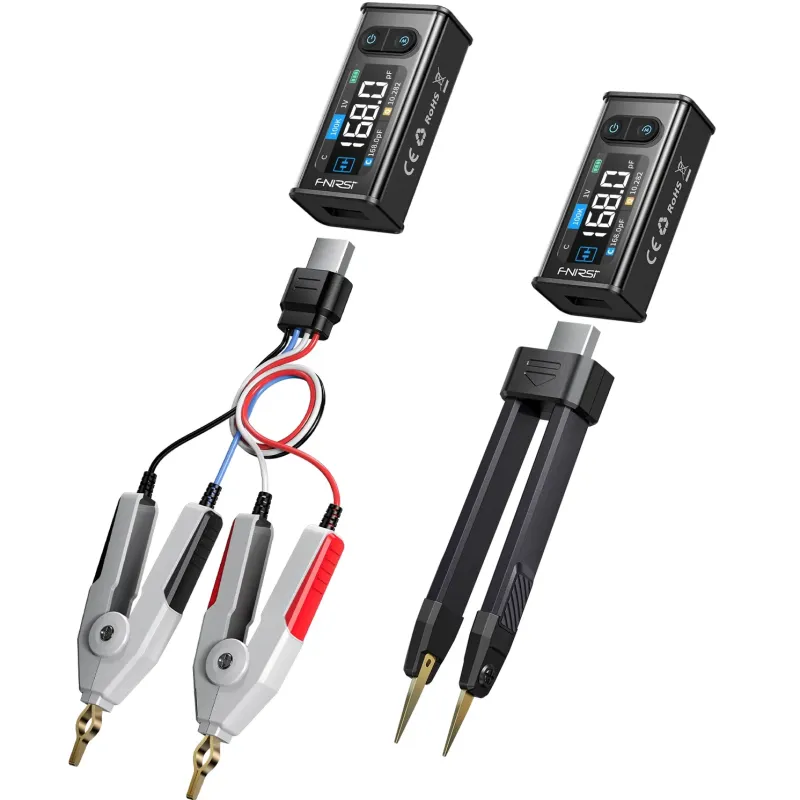

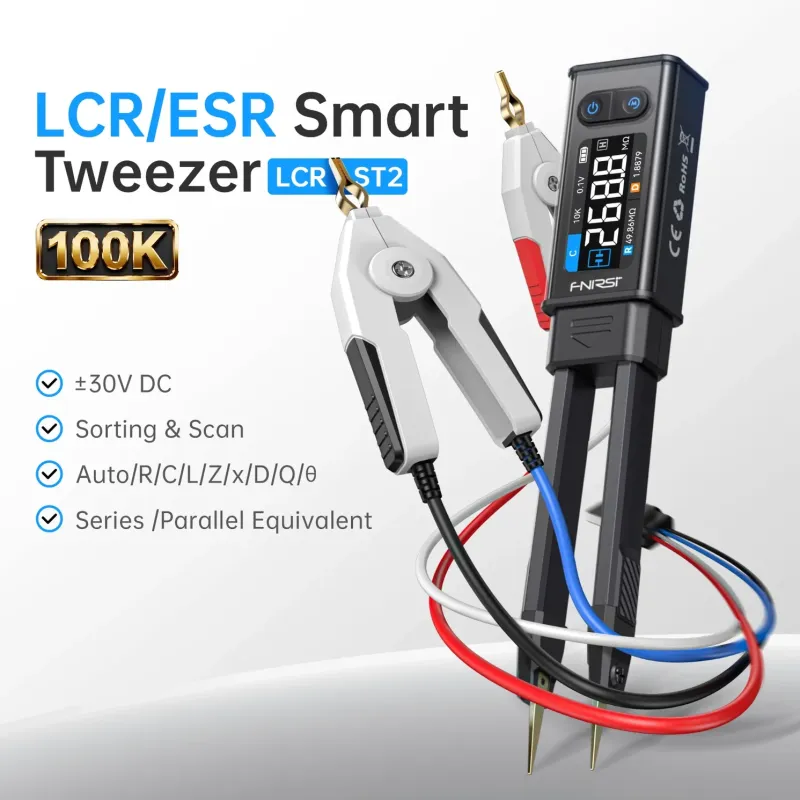

The FNIRSI LCR-ST2 is a sophisticated 2-in-1 measurement solution that integrates high-precision digital tweezers with a four-wire Kelvin test clip, designed specifically for comprehensive analysis of SMD components. Whether you are working in a laboratory or performing field repairs, this compact bridge meter provides professional-grade accuracy for resistance, capacitance, and inductance measurements in a highly portable form factor.

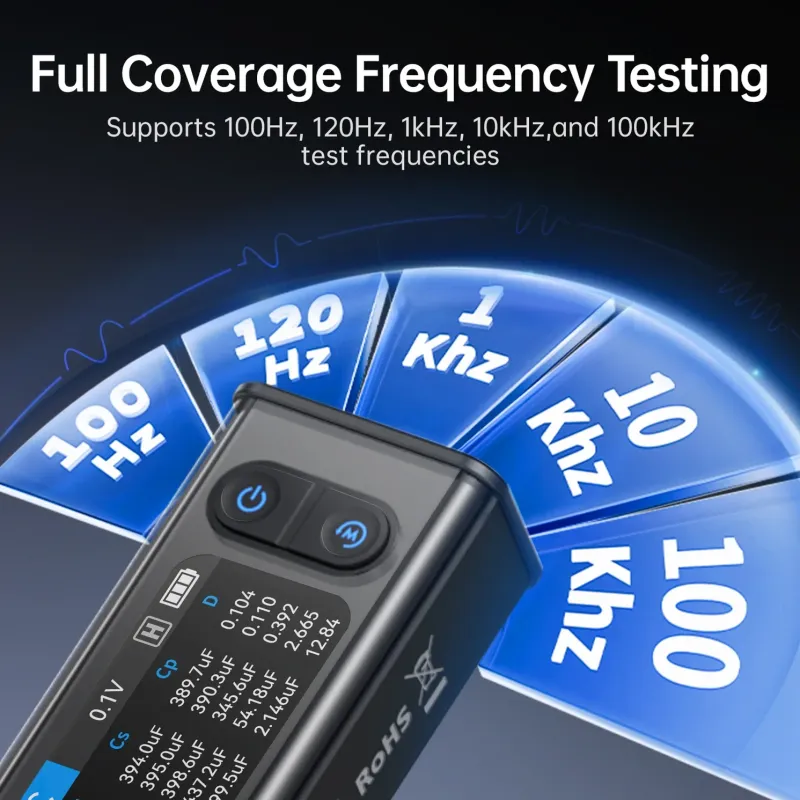

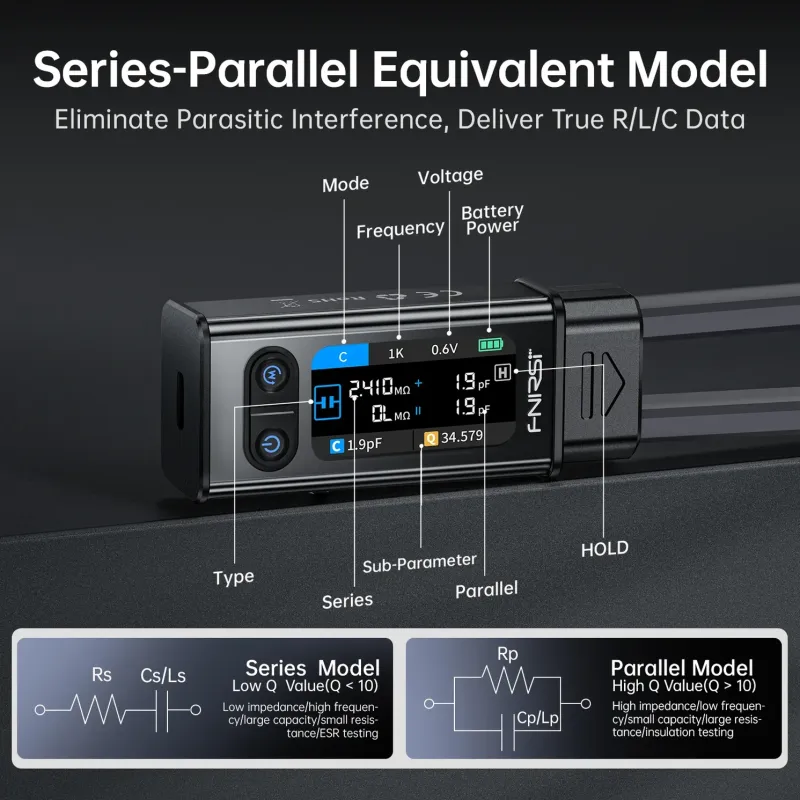

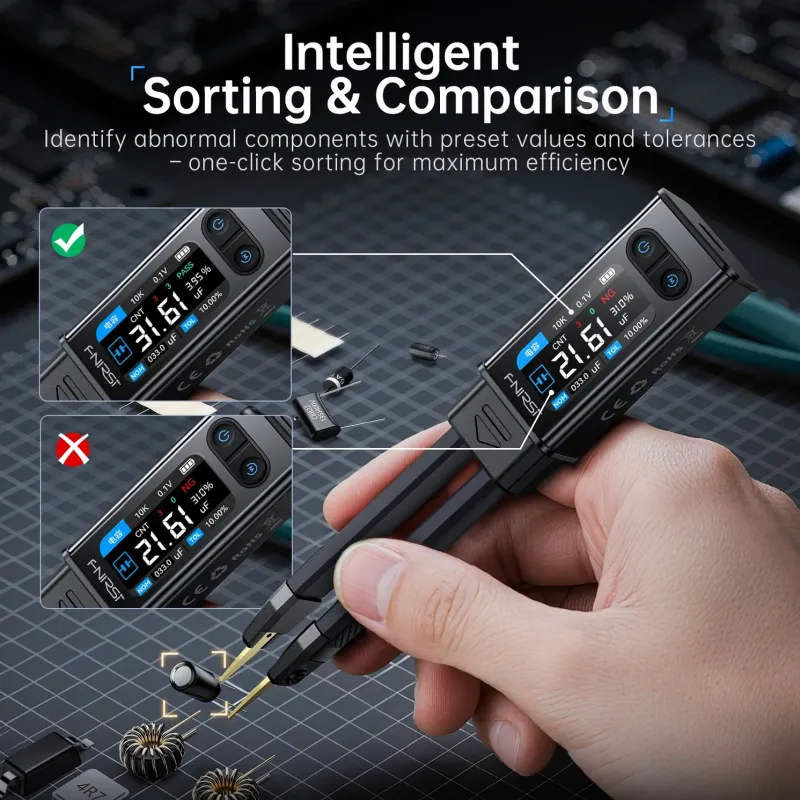

Equipped with a wide testing spectrum, the device supports five selectable frequencies from 100Hz up to 100kHz, allowing for detailed characterization of components across various operating conditions. It measures primary parameters like R, L, and C while simultaneously providing secondary data such as ESR, dissipation factor (D), quality factor (Q), and phase angle (θ). The intelligent sorting and sweep modes make batch testing and frequency response analysis faster and more efficient than ever before.

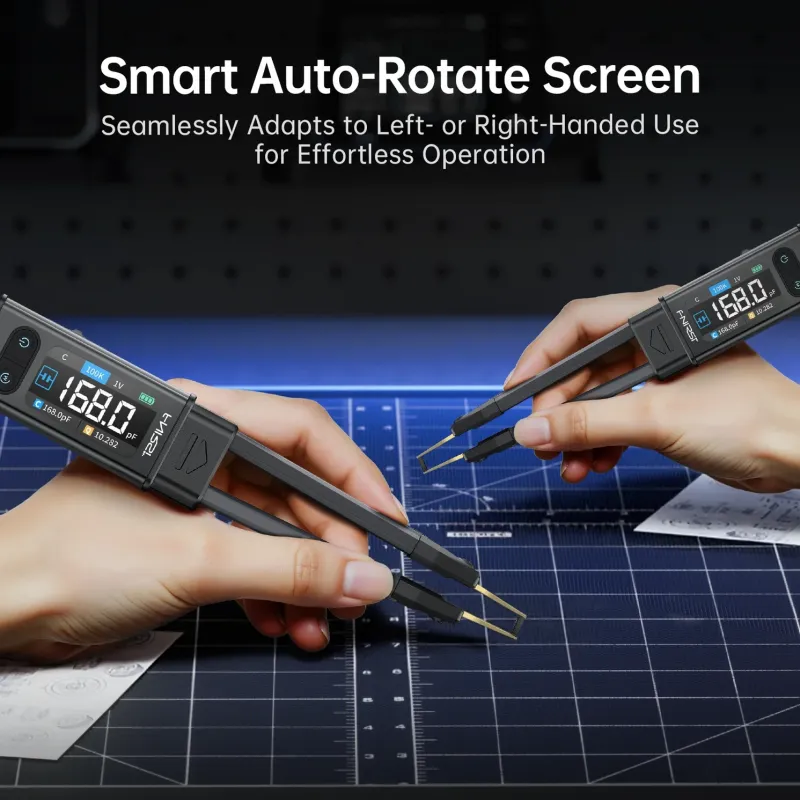

The unit features a 1.47-inch HD color display with an auto-rotate function, ensuring comfortable operation for both left- and right-handed users. With a built-in 300mAh battery providing up to 3 hours of continuous work and a magnetic design for easy storage, the LCR-ST2 is the ultimate tool for modern electronics engineers. It also includes protective features for measuring voltages up to ±30V, ensuring safety during circuit testing.
