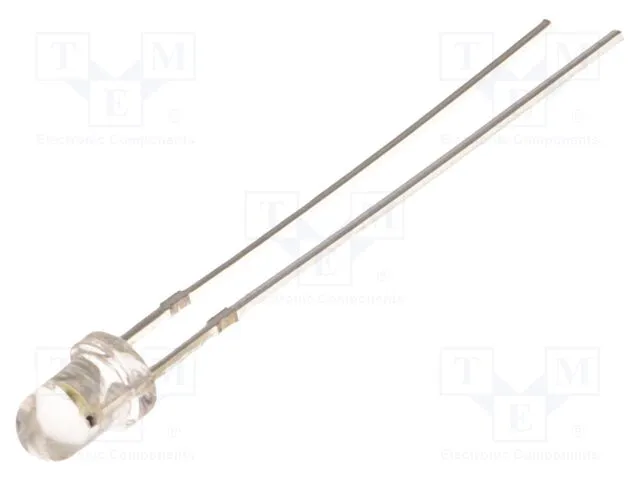

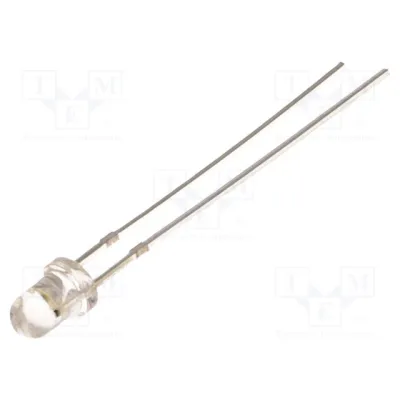

LED; white warm; 3mm; 2180÷3000mcd; 30°; Front: convex; 12VDC
SKU:OSM5DK3131A-12V
Image is for illustrative purposes only
This OPTOSUPPLY 3mm warm white LED (model OSM5DK3131A-12V) is designed for through-hole mounting, offering simplified integration for various indicator and lighting applications. Its built-in current-limiting resistor streamlines circuit design by eliminating the need for an external resistor.
Key Features
- LED Type: 3mm Warm White Diode
- Manufacturer & Model: OPTOSUPPLY OSM5DK3131A-12V
- Lens: Convex, Clear
- Viewing Angle: 30°
- Operating Voltage: 12V DC
- Luminous Intensity: 2180-3000 mcd
- Integrated Resistor: Built-in current-limiting resistor
- Compatibility: TTL logic compatible
- Mounting: Through-Hole Technology (THT)
Applications
This versatile LED is suitable for a wide range of indicator and general lighting applications. Its integrated resistor and TTL compatibility simplify design, making it ideal for straightforward integration into diverse electronic projects requiring a reliable warm white light source.
Key Features
- LED Type: 3mm Warm White Diode
- Manufacturer & Model: OPTOSUPPLY OSM5DK3131A-12V
- Lens: Convex, Clear
- Viewing Angle: 30°
- Operating Voltage: 12V DC
- Luminous Intensity: 2180-3000 mcd
- Integrated Resistor: Built-in current-limiting resistor
- Compatibility: TTL logic compatible
- Mounting: Through-Hole Technology (THT)
Applications
This versatile LED is suitable for a wide range of indicator and general lighting applications. Its integrated resistor and TTL compatibility simplify design, making it ideal for straightforward integration into diverse electronic projects requiring a reliable warm white light source.
Chromatic Coordinates: x: 0.45; y: 0.41 (Typ. 3000K)
Diode Type: LED
Features: integral current limiting resistor
LED Color: warm white
LED Current (IF): 10...15mA
LED Diameter: 3mm
Lead Soldering Temperature (Tsol): 260℃/5sec
Lens Shape: convex (transparent)
Luminosity (Iv): 2180÷3000mcd
Maximum Forward Voltage (VF): 15V
Mounting: THT (Through Hole Technology)
Number of Pins: 2
Operating Temperature (Topr): -30 ~ +85℃
Operating Voltage (VF): 12V DC
Pin Pitch: 2.54mm
Power Dissipation (PD): 225mW
Reverse Voltage (VR): 12V
Storage Temperature (Tstg): -30 ~ +85℃
Viewing Angle (2θ1/2): 30°
Diode Type: LED
Features: integral current limiting resistor
LED Color: warm white
LED Current (IF): 10...15mA
LED Diameter: 3mm
Lead Soldering Temperature (Tsol): 260℃/5sec
Lens Shape: convex (transparent)
Luminosity (Iv): 2180÷3000mcd
Maximum Forward Voltage (VF): 15V
Mounting: THT (Through Hole Technology)
Number of Pins: 2
Operating Temperature (Topr): -30 ~ +85℃
Operating Voltage (VF): 12V DC
Pin Pitch: 2.54mm
Power Dissipation (PD): 225mW
Reverse Voltage (VR): 12V
Storage Temperature (Tstg): -30 ~ +85℃
Viewing Angle (2θ1/2): 30°
