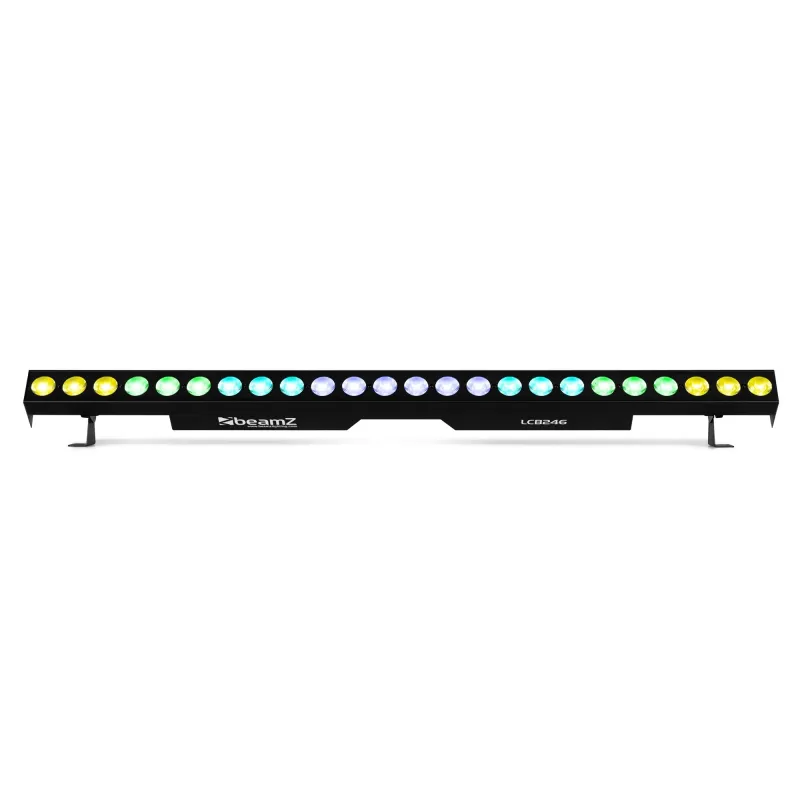

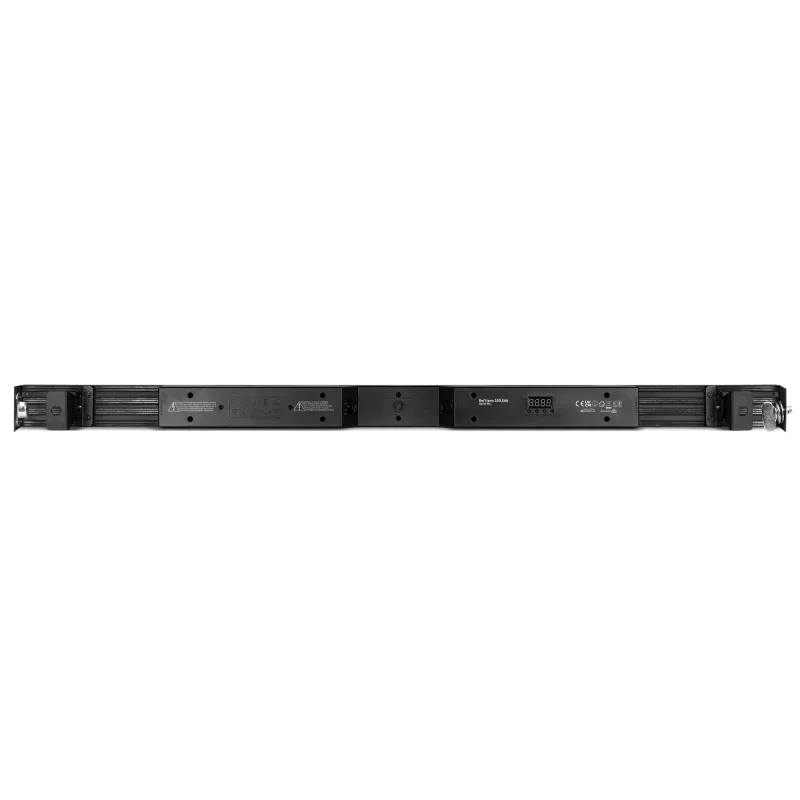

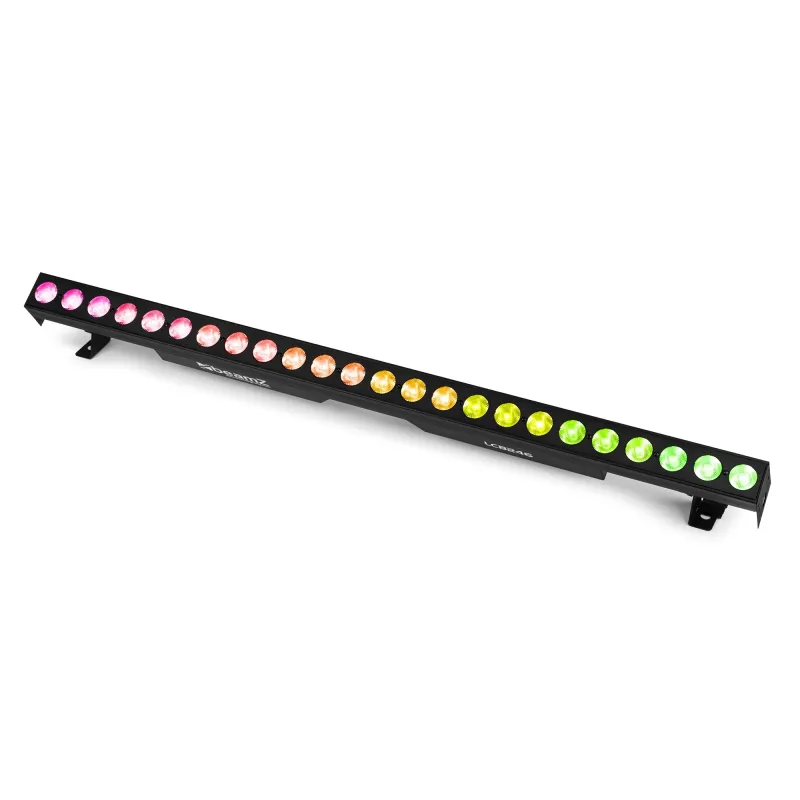

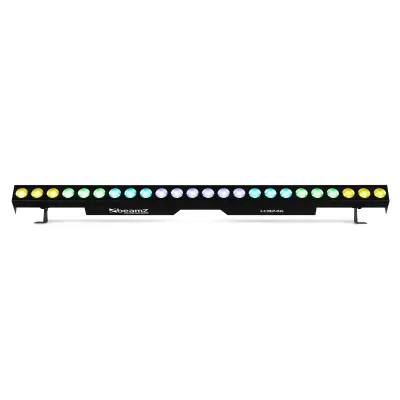

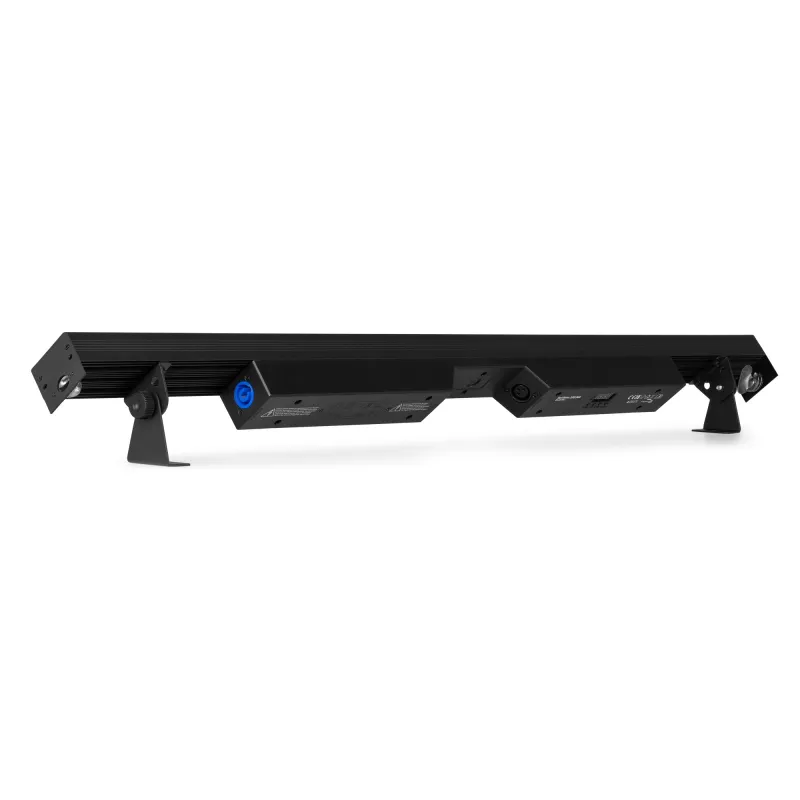

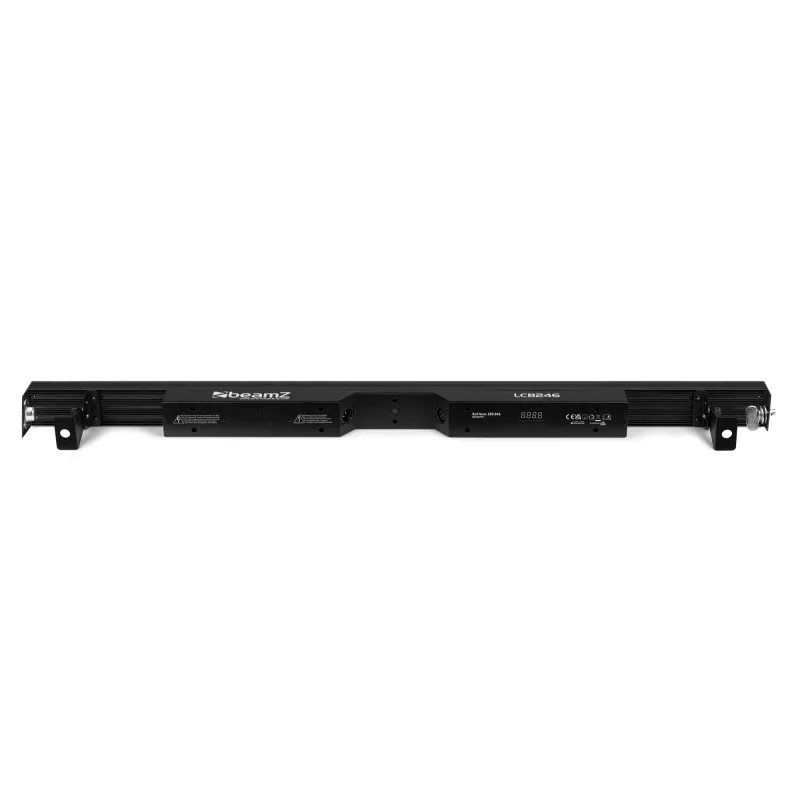

BeamZ LCB246 LED Bar 24x6W RGBAW-UV Light
SKU:TR150.546OS
Manufacturer:BeamZ
New
The BeamZ LCB246 is a high-performance LED linear panel (LED Bar) designed for professional stage, club, and event lighting, specializing in dynamic wall wash effects. It features 24 powerful 6-in-1 LEDs for extensive color mixing.
Key Features
- Equipped with 24 powerful 6W 6-in-1 LEDs (RGBAW-UV).

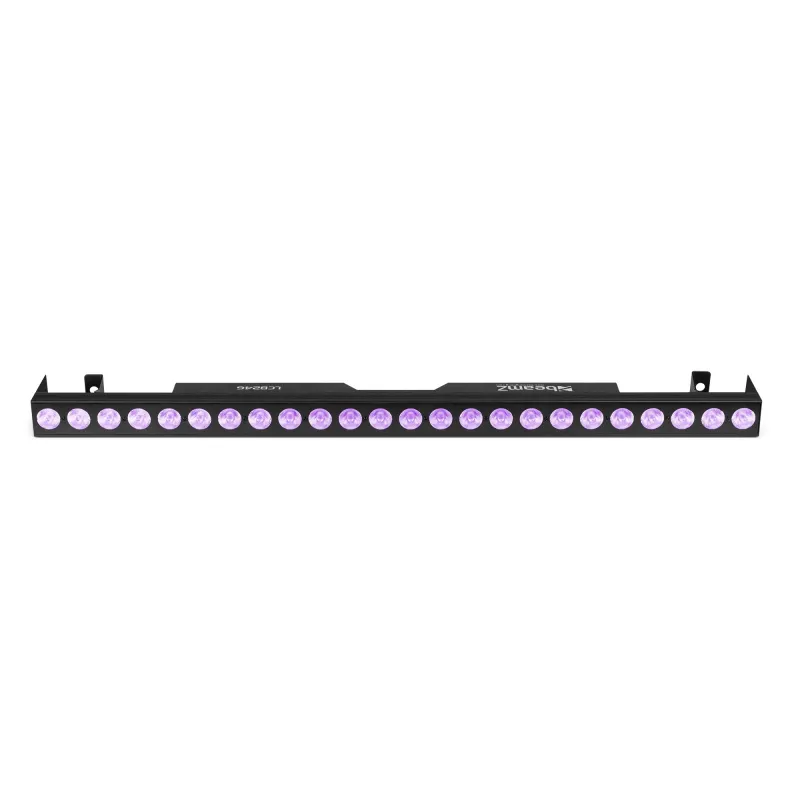

- Extensive color palette including Red, Green, Blue, Amber, White, and Ultraviolet (UV) for blacklight effects.
- 8 individually controllable sections allow for complex, dynamic chase sequences.
- DMX control supported, with channel modes ranging from 8 to 74.
- Multiple operational modes: Standalone programs, Sound Activation, and Master/Slave.
- Durable aluminum housing with integrated fan cooling system for reliable operation.
- IP20 rated for indoor use only.
Applications
Ideal for professional lighting environments including stages, nightclubs, and large events. Its linear design and sectional control make it highly effective for architectural wall washing and creating complex, dynamic background lighting.
Key Features
- Equipped with 24 powerful 6W 6-in-1 LEDs (RGBAW-UV).
- Extensive color palette including Red, Green, Blue, Amber, White, and Ultraviolet (UV) for blacklight effects.
- 8 individually controllable sections allow for complex, dynamic chase sequences.
- DMX control supported, with channel modes ranging from 8 to 74.
- Multiple operational modes: Standalone programs, Sound Activation, and Master/Slave.
- Durable aluminum housing with integrated fan cooling system for reliable operation.
- IP20 rated for indoor use only.
Applications
Ideal for professional lighting environments including stages, nightclubs, and large events. Its linear design and sectional control make it highly effective for architectural wall washing and creating complex, dynamic background lighting.
Light Source: 6-in-1 LED
LED Colors: Red, Green, Blue, Amber, White, Ultra Violet (RGBAW-UV)
LED Power: 6W
Number of LEDs: 24 (8 individually controlled sections)
Beam Angle: 20°
Field Angle: 33°
Illuminance: 5.675 lx @ 1m
Flash Rate: 1 – 20Hz
DMX Channels: 8, 11, 20, 36, 74
DMX Connector: 3-pin XLR
Operating Modes: Automatic programs, DMX, Manual, Master/Slave, Sound activated
Daisy Chain: Yes (max. 8 bars)
IP Rating: IP20
Cooling: Temperature controlled fan
Housing: Aluminum
Power Supply: 100-240VAC 50/60Hz
Power Consumption: 1.70 – 0.90A
Dimensions (L x W x H): 1010 x 75 x 76mm
Weight: 3.65kg
LED Colors: Red, Green, Blue, Amber, White, Ultra Violet (RGBAW-UV)
LED Power: 6W
Number of LEDs: 24 (8 individually controlled sections)
Beam Angle: 20°
Field Angle: 33°
Illuminance: 5.675 lx @ 1m
Flash Rate: 1 – 20Hz
DMX Channels: 8, 11, 20, 36, 74
DMX Connector: 3-pin XLR
Operating Modes: Automatic programs, DMX, Manual, Master/Slave, Sound activated
Daisy Chain: Yes (max. 8 bars)
IP Rating: IP20
Cooling: Temperature controlled fan
Housing: Aluminum
Power Supply: 100-240VAC 50/60Hz
Power Consumption: 1.70 – 0.90A
Dimensions (L x W x H): 1010 x 75 x 76mm
Weight: 3.65kg
-
