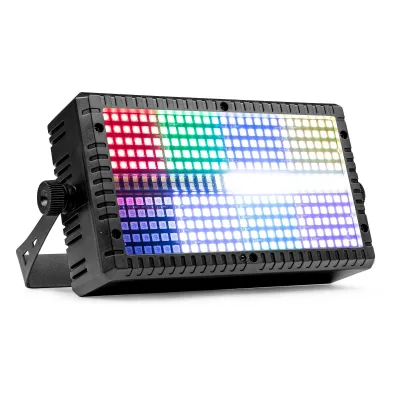

BS336 Stroboscope LED RGB+W Combi

SKU:TR153.289OS
Manufacturer:BeamZ
New BS336 Stroboscope LED RGB+W Combi
The BeamZ BS336 is a powerful, multifunctional lighting fixture designed to operate as a strobe, blinder, and wash light, utilizing 336 high-output SMD LEDs. Its highly segmented panel allows for dynamic, complex effects suitable for professional shows and events.



Key Features

- Total 336 SMD LEDs providing high output illumination.

- LED Configuration: Features 280 RGB SMD LEDs for color mixing and 56 White SMD LEDs optimized for traditional strobe effects.

- Segmentation: Panel is divided into 12 individually controllable segments (8 RGB zones and 4 dedicated White zones).

- Control Modes: Supports DMX512 (4, 6, 12, 24, or 30 channel modes), Master/Slave, Sound activation, and Standalone automatic programs.

- Construction: Durable ABS plastic housing with integrated fan cooling system.

- Includes a wireless remote control for convenient operation.



Applications

This fixture is suitable for a wide range of professional lighting needs, including stage shows, concerts, and various events requiring dynamic color mixing and intense strobe effects.
Product Colour: Black
Light Source: Single colour LED, 3-in-1 LED
Colours: Red, Green, Blue, White
Number of LEDs: 336
Number of RGB SMD LEDs: 280
Number of White SMD LEDs (Strobe): 56
Controllable Segments: 12 (8 RGB zones, 4 White LED zones)
Beam Angle: 60°
Field Angle: 112°
Illuminance: 2.126 lx @ 0.5m
Flash Rate: 1 - 20Hz
DMX Channels: 4, 6, 12, 24, 30
DMX Connector: 3-pin XLR
Modes: Automatic programs, DMX, Master/Slave, Sound activated
IP Rating: IP20
Cooling: Temperature controlled fan
Display: LED
Power Connector: IEC
Power Supply: 100-240VAC 50/60Hz
Current Consumption: 0.425 - 0.262A
Dimensions (L x W x H): 265 x 160 x 65mm
Weight (kg): 0.9500
Included Accessories: Remote control (wireless), Mounting bracket
