Liikumisandur lüliti, 5.8GHz, 10s...12min 1200W 230VAC
SKU:MW-360-8M-IP20-U
Manufacturer:Eurolight

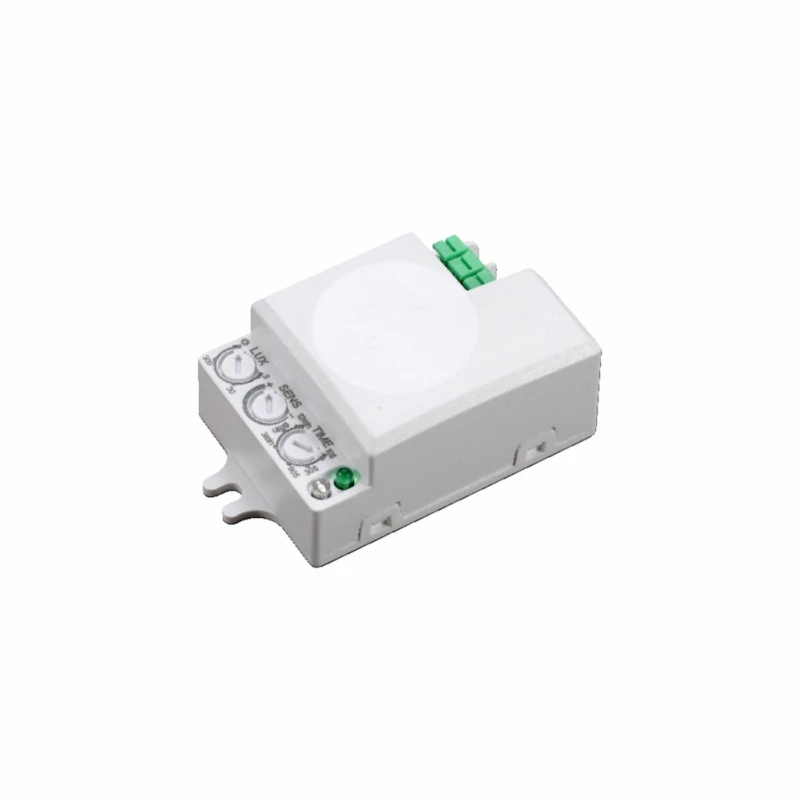

Image is for illustrative purposes only
This device is an energy-saving automatic switch utilizing 5.8 GHz microwave radar technology for highly sensitive motion detection. It integrates both motion sensing and ambient light sensing to provide automated control of indoor lighting systems.
Key Features
- Operates using high-frequency 5.8 GHz microwave radar.
- High sensitivity allows reliable detection of movement even through thin walls, glass, or doors.
- Provides a comprehensive 360° detection zone with a maximum radius of 8 meters (optimized for ceiling mounting).
- Integrated twilight sensor allows adjustable light level settings (3 to 2000 LUX) for day or night operation.
- Adjustable time delay settings ranging from 10 seconds up to 12 minutes.
- Maximum switching capacity: 1200 W (Incandescent) or 300 W (LED/Energy-saving lamps).
- Rated IP20, suitable exclusively for indoor environments.
Key Features
- Operates using high-frequency 5.8 GHz microwave radar.
- High sensitivity allows reliable detection of movement even through thin walls, glass, or doors.
- Provides a comprehensive 360° detection zone with a maximum radius of 8 meters (optimized for ceiling mounting).
- Integrated twilight sensor allows adjustable light level settings (3 to 2000 LUX) for day or night operation.
- Adjustable time delay settings ranging from 10 seconds up to 12 minutes.
- Maximum switching capacity: 1200 W (Incandescent) or 300 W (LED/Energy-saving lamps).
- Rated IP20, suitable exclusively for indoor environments.
Ambient Light: 3-2000 LUX (adjustable)
Detection Angle: 360° (horizontal) / 180° (vertical)
Detection Distance: 1-8 m (radius, ceiling mount) / 5-15 m (wall mount) (adjustable)
Electric Shock Protection Class: Class II
IP Rating: IP20
Installing Height: 2-8 m (ceiling) / 1.5-3.5 m (wall)
Motion Detection Speed: 0.6 - 1.5 m/s
Operating Frequency: 5.8 GHz CW radar, ISM band
Power Consumption: Approx. 0.9 W
Power Supply Frequency: 50/60 Hz
Power Supply Voltage: 220-240 V/AC
Rated Load (Inductive/LED): 300 W
Rated Load (Resistive): 1200 W
Sensor Type: Microwave Motion Sensor
Time Delay: 10 s (±3 s) to 12 min (±1 min) (adjustable)
Transmission Power: <0.2 mW
Detection Angle: 360° (horizontal) / 180° (vertical)
Detection Distance: 1-8 m (radius, ceiling mount) / 5-15 m (wall mount) (adjustable)
Electric Shock Protection Class: Class II
IP Rating: IP20
Installing Height: 2-8 m (ceiling) / 1.5-3.5 m (wall)
Motion Detection Speed: 0.6 - 1.5 m/s
Operating Frequency: 5.8 GHz CW radar, ISM band
Power Consumption: Approx. 0.9 W
Power Supply Frequency: 50/60 Hz
Power Supply Voltage: 220-240 V/AC
Rated Load (Inductive/LED): 300 W
Rated Load (Resistive): 1200 W
Sensor Type: Microwave Motion Sensor
Time Delay: 10 s (±3 s) to 12 min (±1 min) (adjustable)
Transmission Power: <0.2 mW
-
