SKU:PIRWI10WT
Manufacturer:
Nedis
Image is for illustrative purposes only

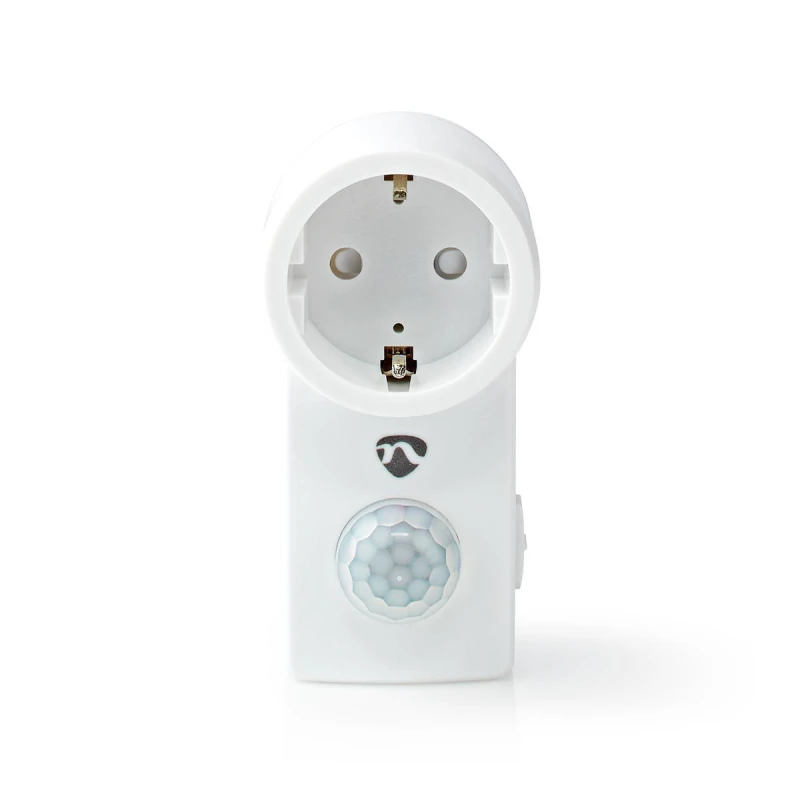

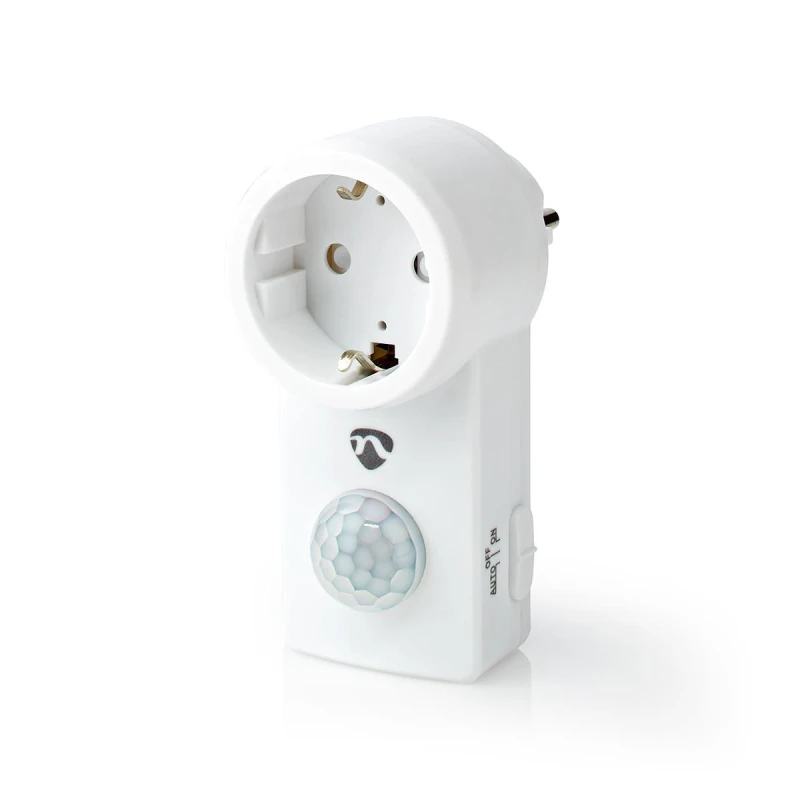

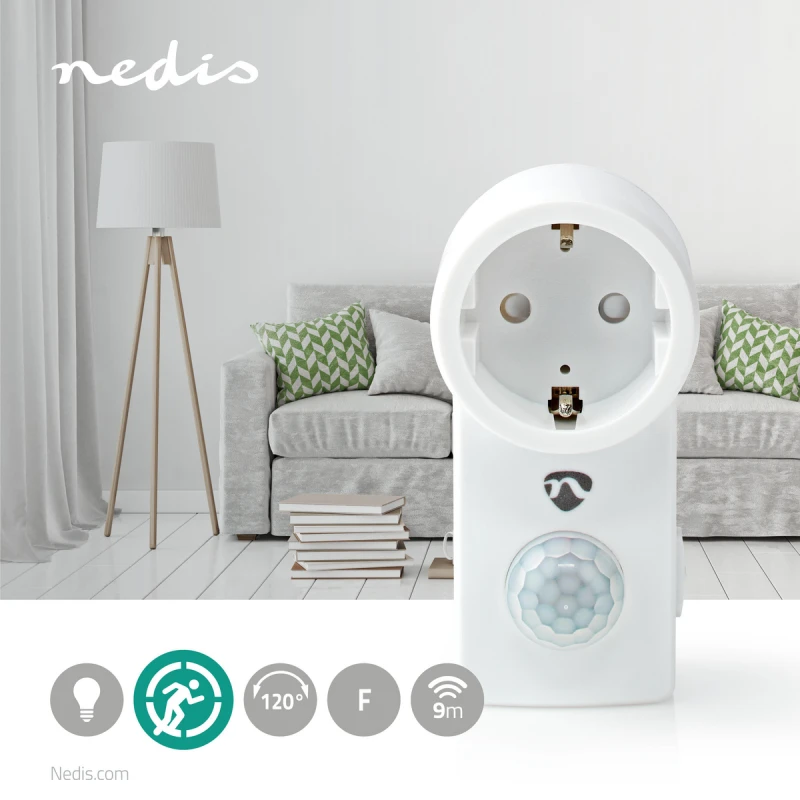

Nedis infrared motion sensor for indoor use designed for direct installation into a standard Schuko Type-F socket. The device enables automatic lighting control, which contributes to energy efficiency and user convenience. It is suitable for both 2-wire (live and neutral) and 3-wire (live, neutral, and switch wire) installations.

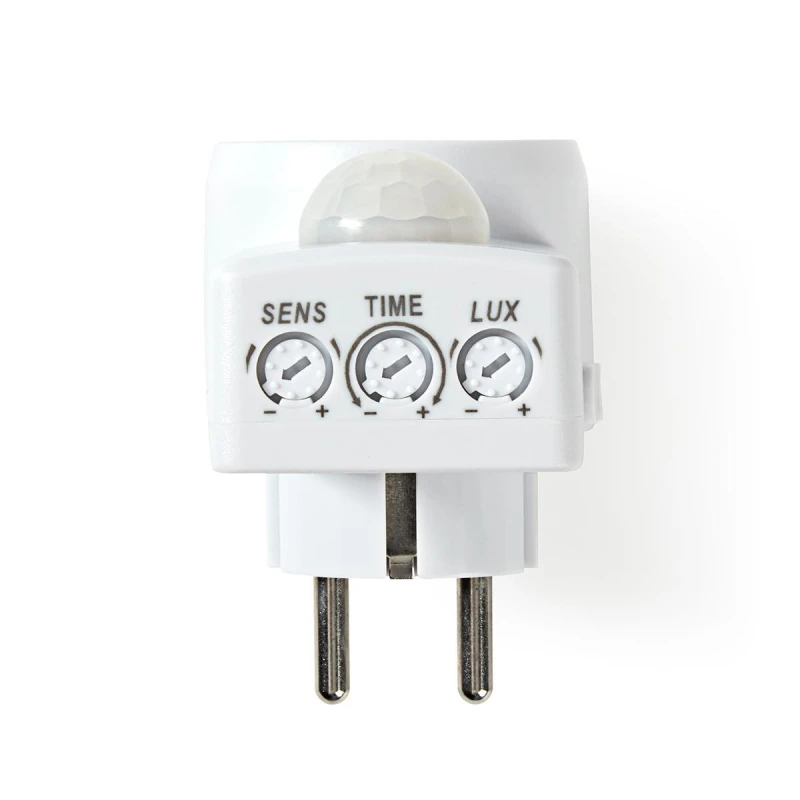

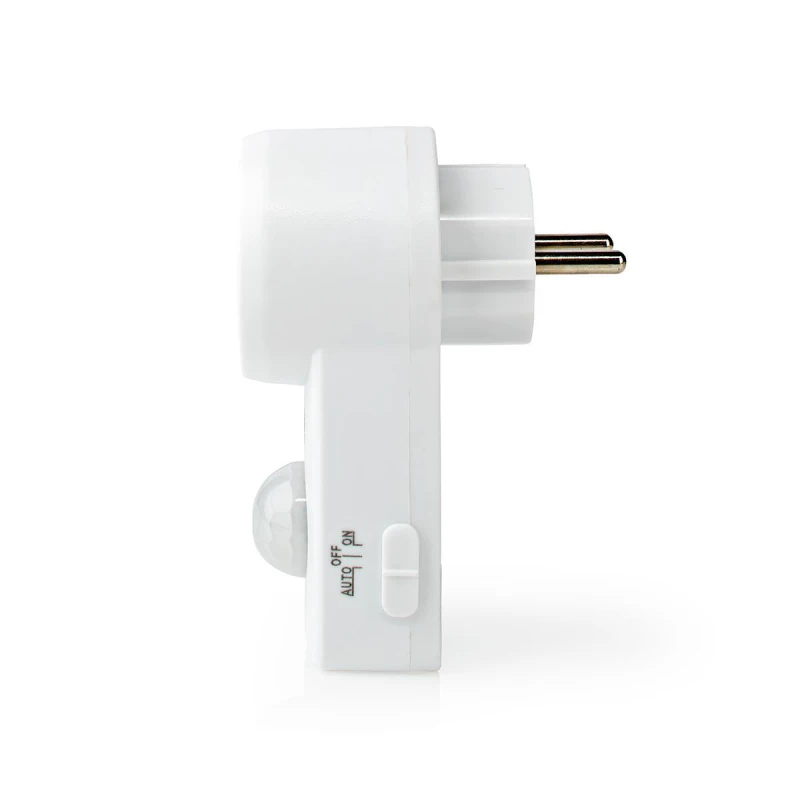

The sensor features adjustable parameters for motion sensitivity, ambient light settings (3 - 2000 lx), and time delay (10 sec - 7 min). An integrated manual switch allows for On/Off/PIR mode selection. This motion detector supports a maximum output of 1200 W for filament bulbs and 300 W for fluorescent lamps, providing a detection range of up to 9.0 meters with a 120° horizontal angle.
The sensor features adjustable parameters for motion sensitivity, ambient light settings (3 - 2000 lx), and time delay (10 sec - 7 min). An integrated manual switch allows for On/Off/PIR mode selection. This motion detector supports a maximum output of 1200 W for filament bulbs and 300 W for fluorescent lamps, providing a detection range of up to 9.0 meters with a 120° horizontal angle.
Sensor Technology: PIR
Sensor reach: 0.0 - 9.0 m
Twilight setting: 3 - 2000 lx
Max Output Power Fluorescent Lamp: 300 W
Max Output Power Filament Bulbs: 1200 W
Depth: 75.3 mm
Temperature range: -20 - +40 °C
Time setting: 10 sec - 7 min
Width: 51 mm
Height: 104.3 mm
Angle of coverage horizontal: 120 °
Functions: Motion Sensor, Adjustable Detection Sensitivity, Adjustable Light Sensitivity, Adjustable Timer

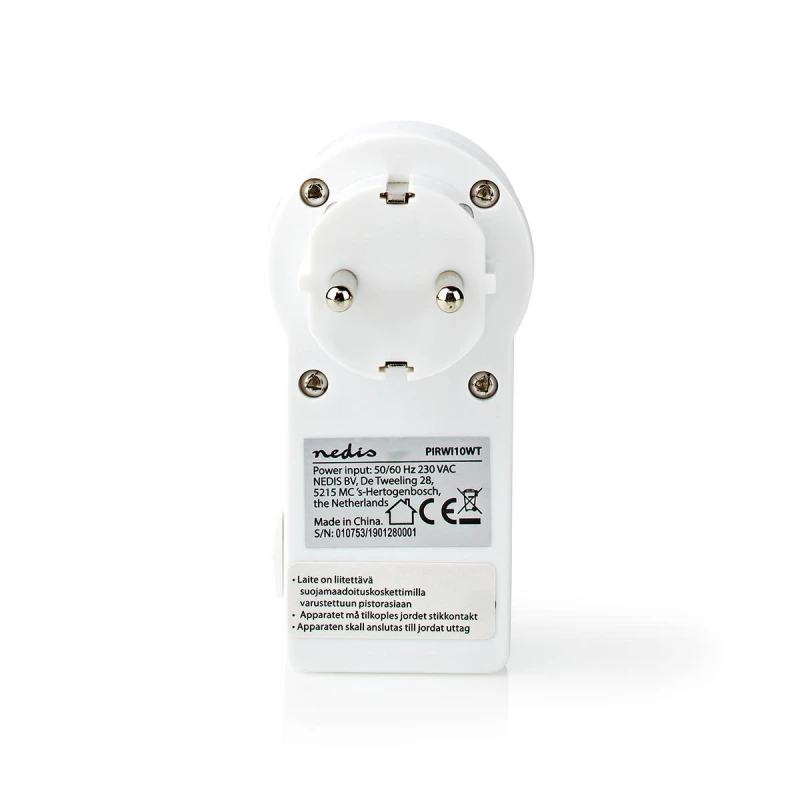

Input voltage: 230 VAC
Weight: 101 g
Colour: White
Usage: Indoor

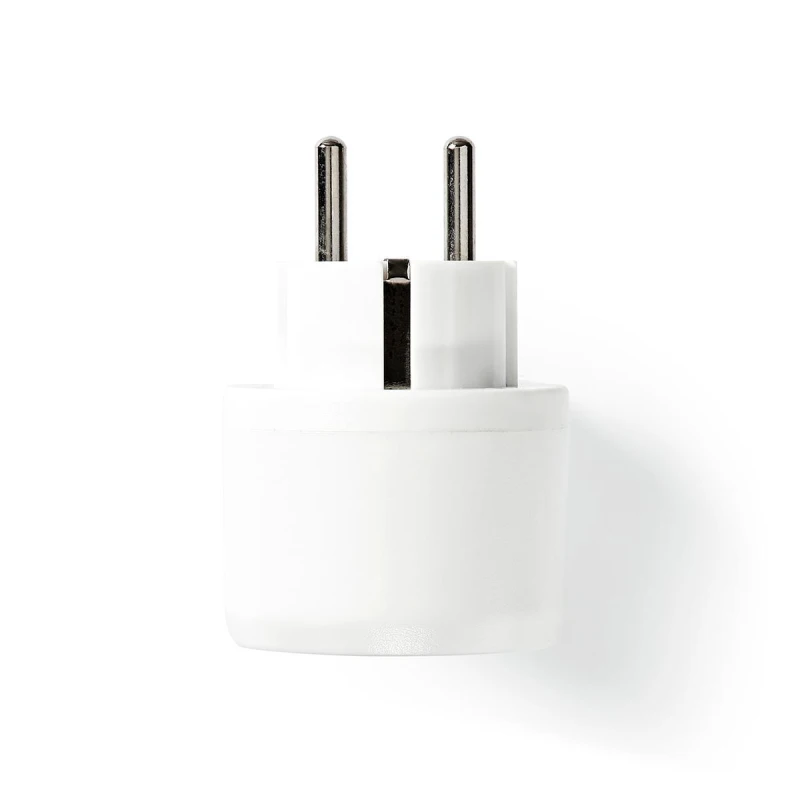

Power plug: Schuko / Type F (CEE 7/7)
Order code: PIRWI10WT
Package contents:
Infrared motion sensor
Quick start guide
