SKU:PNI-KAP-800
Manufacturer:
PNI
New
Image is for illustrative purposes only

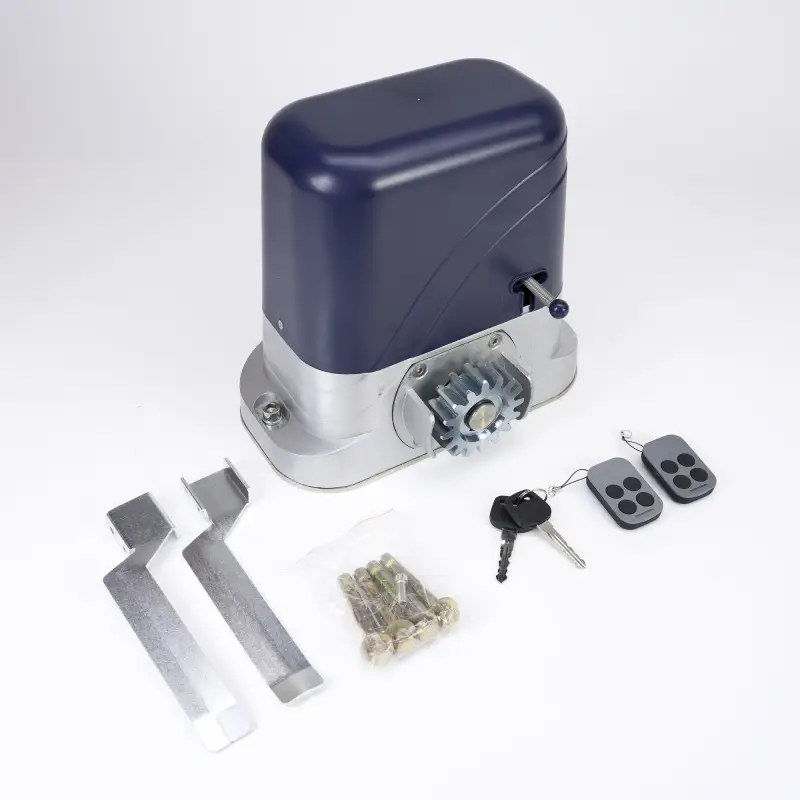

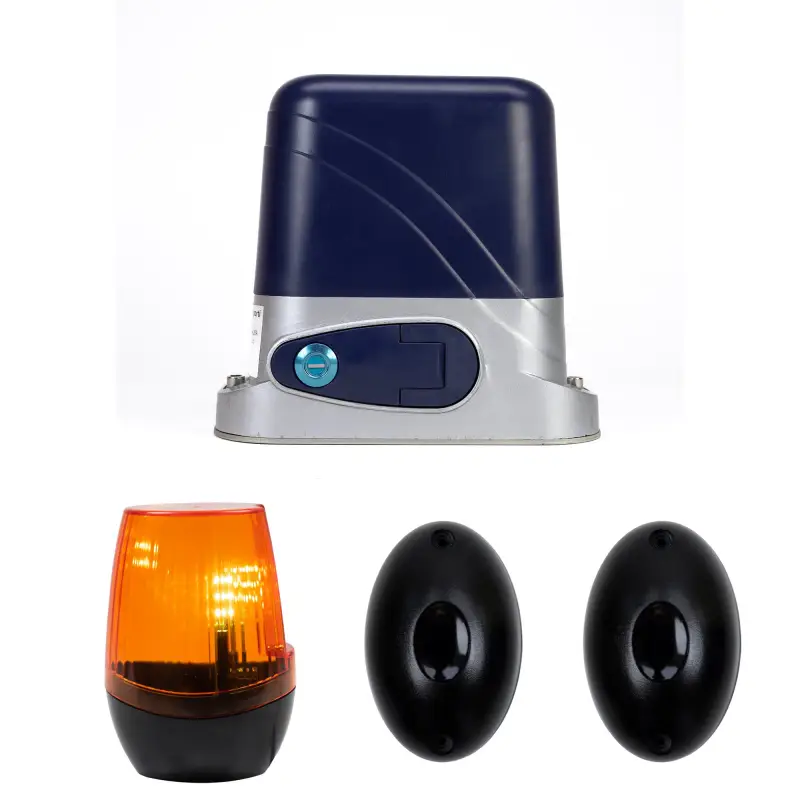

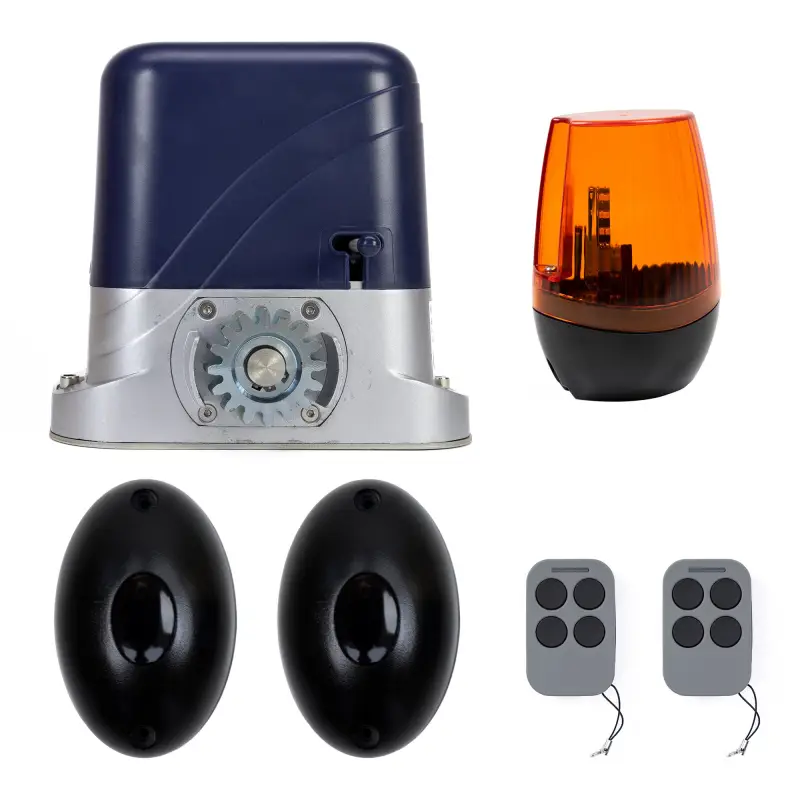

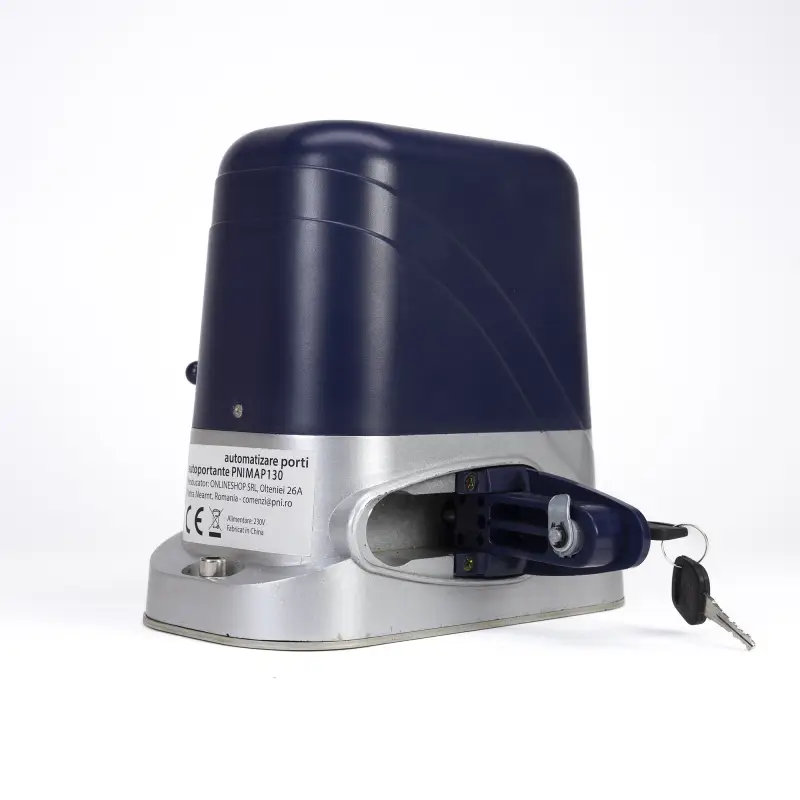

The PNI KAP800D is a comprehensive automation kit designed for self-supporting sliding gates. Featuring a 350W motor, the system is capable of operating gates weighing up to 800 kg. This all-in-one solution includes the motor unit, warning lamp, photocells, and necessary mounting accessories for a complete installation.
Operation is managed via remote controls, with two units included in the package. The system is compatible with additional access control devices such as buttons or keypads. For enhanced safety, the motor incorporates obstacle detection with high and low sensitivity settings, ensuring the gate stops if an obstruction is encountered during movement.
The kit offers programmable auto-close timers at intervals of 10, 30, or 60 seconds. It also features a condominium mode, which optimizes access for multiple users by preventing opening interruptions and ensuring the gate reverses to a full open position if an obstacle is detected during closing.
Operation is managed via remote controls, with two units included in the package. The system is compatible with additional access control devices such as buttons or keypads. For enhanced safety, the motor incorporates obstacle detection with high and low sensitivity settings, ensuring the gate stops if an obstruction is encountered during movement.
The kit offers programmable auto-close timers at intervals of 10, 30, or 60 seconds. It also features a condominium mode, which optimizes access for multiple users by preventing opening interruptions and ensuring the gate reverses to a full open position if an obstacle is detected during closing.
Feeding: 230 V
Power: 350W
Maximum door weight: 1300 kg
Opening/closing speed: 12 m/min
Limit noise: ≤55dBa
Weatherproof: Yes
Integrated control panel: Yes
Pinion module: I-4

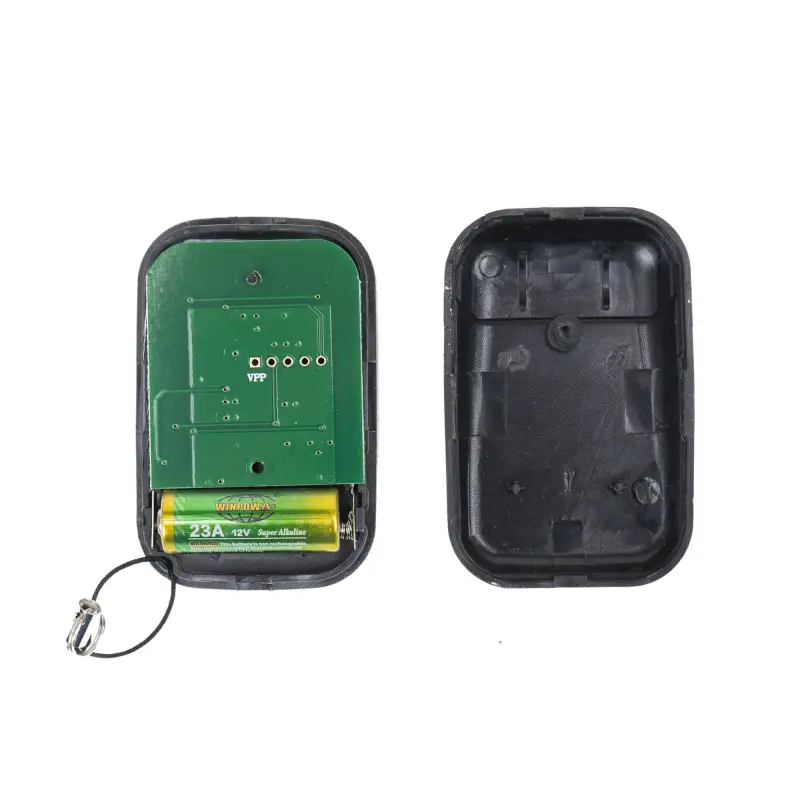

Remote control battery: Alkaline, 23A, 8V
Communication distance: Up to 50m
Frequency: 433MHz

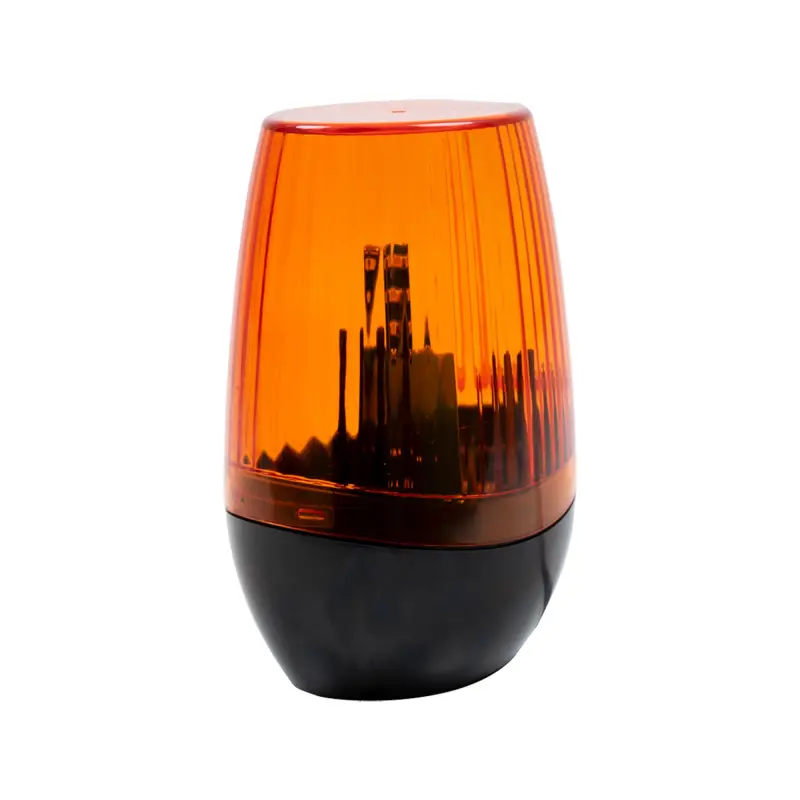

Lamp feeding: 12-265V
Lamp power: 1.5W
Lamp size: 90 x 80 x 140 mm
Photocell feeding: 12 / 24V
Photocell communication distance: Up to 10 m
Photocell size: 75 x 30 x 50 mm
Wheel diameter: 680mm
Distance between wheels: 740mm
Package contents: User manual
Motor
Lamp
2 photocells
2 remote controls
2 piers
Mounting accessories
Power: 350W
Maximum door weight: 1300 kg
Opening/closing speed: 12 m/min
Limit noise: ≤55dBa
Weatherproof: Yes
Integrated control panel: Yes
Pinion module: I-4
Remote control battery: Alkaline, 23A, 8V
Communication distance: Up to 50m
Frequency: 433MHz
Lamp feeding: 12-265V
Lamp power: 1.5W
Lamp size: 90 x 80 x 140 mm
Photocell feeding: 12 / 24V
Photocell communication distance: Up to 10 m
Photocell size: 75 x 30 x 50 mm
Wheel diameter: 680mm
Distance between wheels: 740mm
Package contents: User manual
Motor
Lamp
2 photocells
2 remote controls
2 piers
Mounting accessories
-
