SKU:PT5186-ET
Manufacturer:
PeakTech
Image is for illustrative purposes only

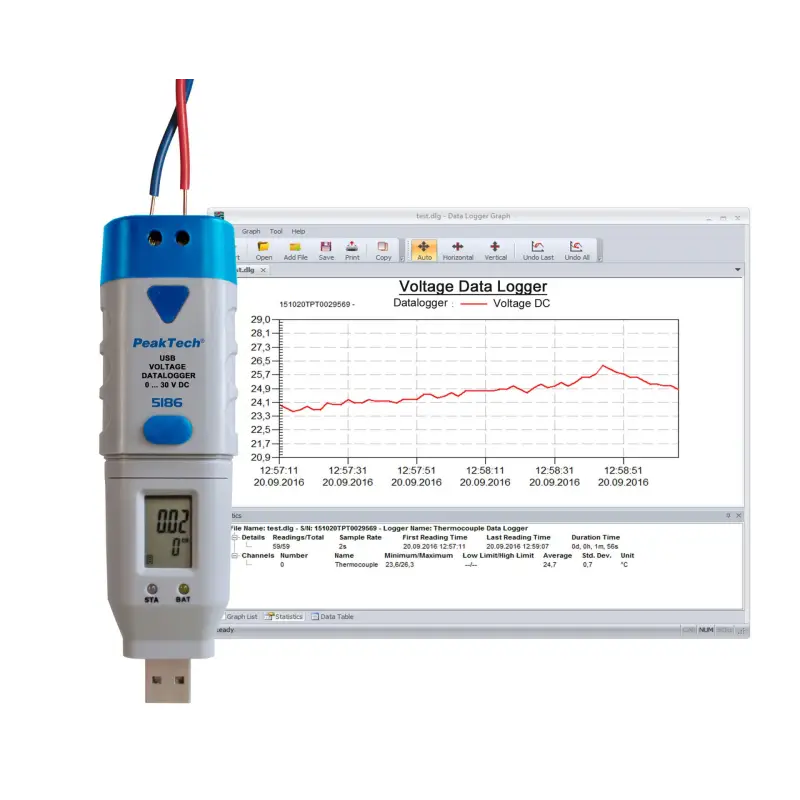

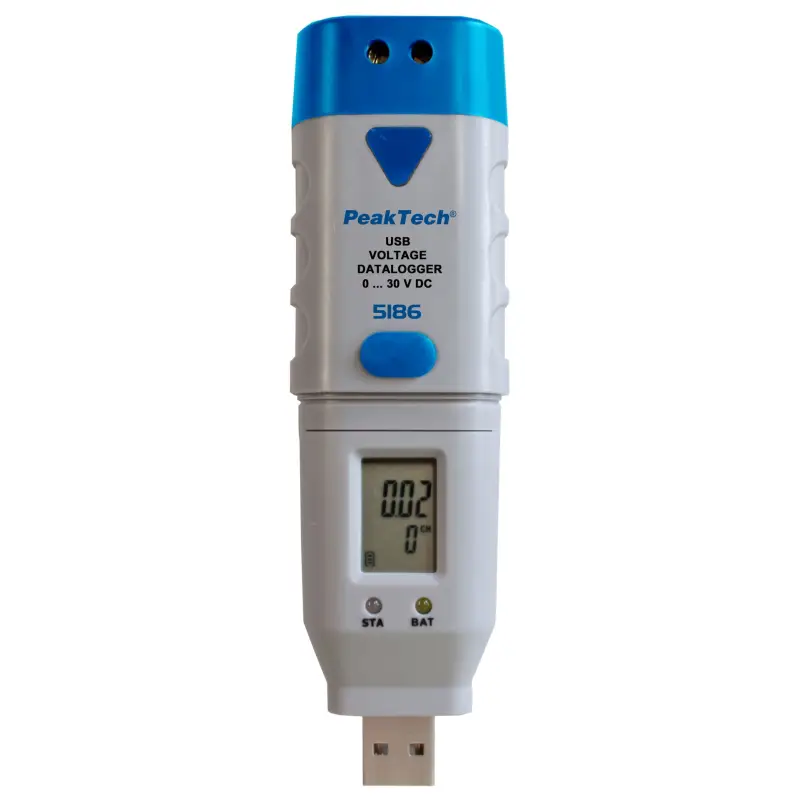

The PeakTech 5186 is a data logger for recording DC voltages (0 V to 30 V) with terminals located on the top of the device. Using the included software, all necessary parameters can be configured before starting a recording, such as measurement rate, start function, date and time, and a password to protect the recorded data. The collected measurements can be analyzed using the PC software.
Technical specifications:
* Data logger with internal memory for up to 32,000 measurement records
* DC voltage measurement up to 30 V
* LCD display for showing measurement values
* Sampling rate adjustable from 2 seconds to 24 hours
* Replaceable lithium battery
* Includes: Windows software, wall mount, protective cap
Features
USB
screw terminal
screw terminal
Type
voltage logger
