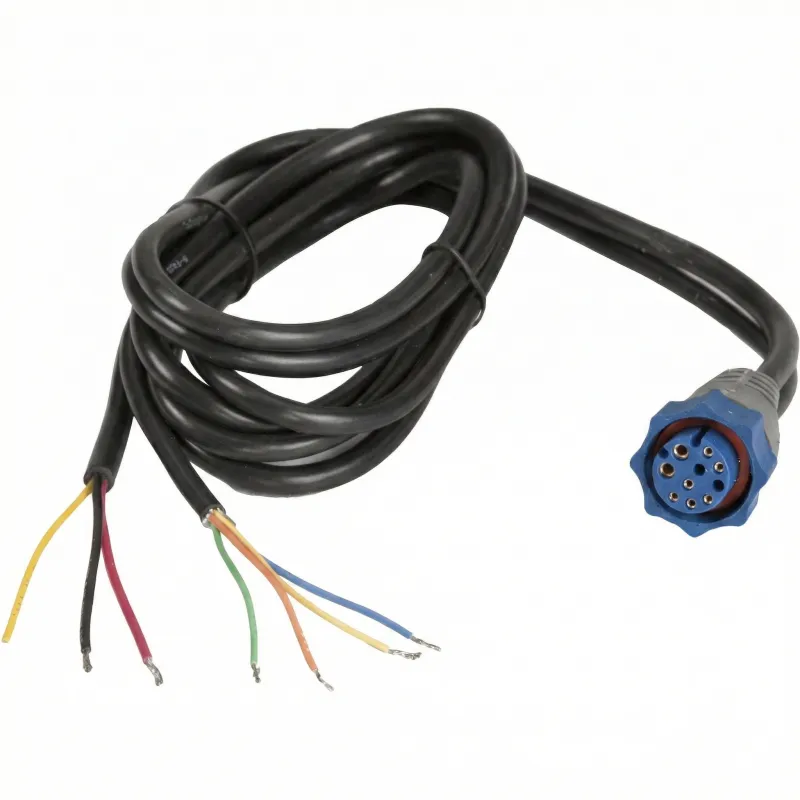

PC-30-RS422 Power Cable for HDS Series
SKU:000-0127-49
New
The Lowrance PC-30-RS422 (SKU: 000-0127-49) is an original power and data cable designed to provide a stable 12V power supply and NMEA 0183 connectivity for compatible marine displays. It serves as a critical component for integrating fishfinders and chartplotters into a vessel's electronic system.
Key Features
- Dual-functionality provides both 12V DC power and data transmission capabilities.
- Features two RS-422 ports to enable seamless NMEA 0183 network integration.
- Equipped with a specialized 7-pin connector for the device and stripped wire ends for connection to the onboard power grid.
- Includes an integrated fuse holder with a pre-installed fuse for added electrical safety.
Applications
This cable is purpose-built for Lowrance HDS, Elite Ti/Ti2, Elite FS, and Hook series devices. Its design makes it ideal for mariners looking to power their equipment while simultaneously sharing data with external sensors or other onboard instruments.
Key Features
- Dual-functionality provides both 12V DC power and data transmission capabilities.
- Features two RS-422 ports to enable seamless NMEA 0183 network integration.
- Equipped with a specialized 7-pin connector for the device and stripped wire ends for connection to the onboard power grid.
- Includes an integrated fuse holder with a pre-installed fuse for added electrical safety.
Applications
This cable is purpose-built for Lowrance HDS, Elite Ti/Ti2, Elite FS, and Hook series devices. Its design makes it ideal for mariners looking to power their equipment while simultaneously sharing data with external sensors or other onboard instruments.
SKU: 000-0127-49
Model: PC-30-RS422
Function: Power and NMEA 0183 Data
Connector: 7-pin Female (Blue/Red)
Data Protocol: NMEA 0183 (RS-422)
RS-422 Ports: 2
Operating Voltage: 12 V DC
Cable Length: 1.5 m (4.9 ft)
Fuse: Included (3A)
Compatibility: Lowrance HDS (Gen2, Gen3, Carbon, Live), Elite Ti/Ti2, Elite FS, Hook, Elite Chirp, Elite HDI
Model: PC-30-RS422
Function: Power and NMEA 0183 Data
Connector: 7-pin Female (Blue/Red)
Data Protocol: NMEA 0183 (RS-422)
RS-422 Ports: 2
Operating Voltage: 12 V DC
Cable Length: 1.5 m (4.9 ft)
Fuse: Included (3A)
Compatibility: Lowrance HDS (Gen2, Gen3, Carbon, Live), Elite Ti/Ti2, Elite FS, Hook, Elite Chirp, Elite HDI
-
