SKU:BD-FTN-25

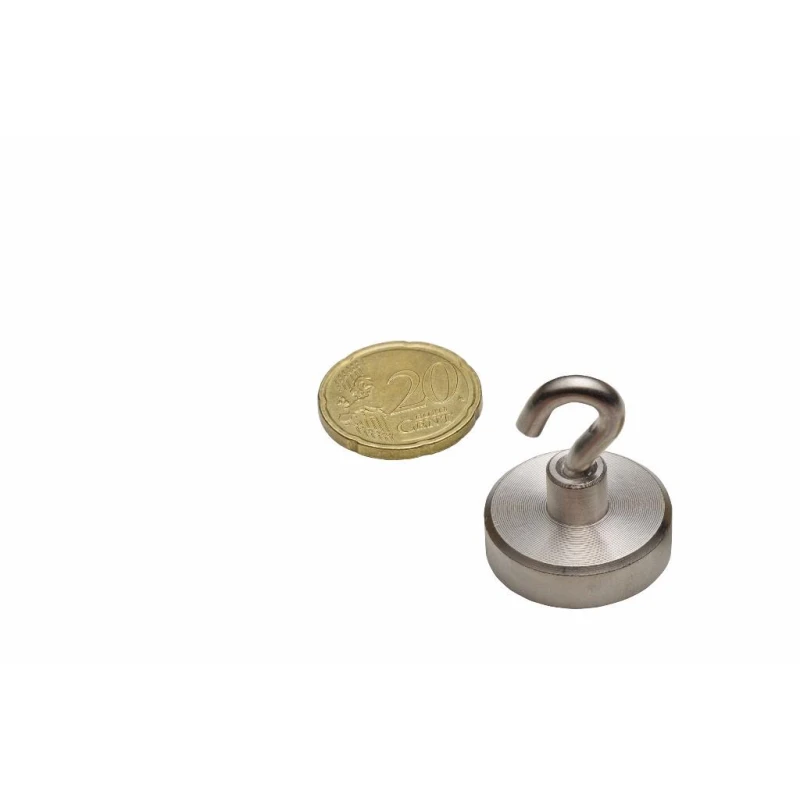

Image is for illustrative purposes only
Magnet with hanging hook d=25mm N38 18kg
Model: BD-FTN-25
EAN: 7640172696026
Material: NdFeB
Housing diameter D: 25 mm
Neck diameter d: 8 mm
Housing height H1: 7 mm
Height without hook H2: 14 mm
Total height with hook H3: 30 mm
Hook opening width a: 4 mm
Hook inside diameter b: 5.5 mm
Thread: M4
Dimensional tolerance: +/- 0.1 mm
Magnetisation grade: N38
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 18 kg (177 N)
Shear force (approx.): 3.6 kg (35.3 N)
Maximum working temperature: 80 °C
Weight: 29.7 g
EAN: 7640172696026
Material: NdFeB
Housing diameter D: 25 mm
Neck diameter d: 8 mm
Housing height H1: 7 mm
Height without hook H2: 14 mm
Total height with hook H3: 30 mm
Hook opening width a: 4 mm
Hook inside diameter b: 5.5 mm
Thread: M4
Dimensional tolerance: +/- 0.1 mm
Magnetisation grade: N38
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 18 kg (177 N)
Shear force (approx.): 3.6 kg (35.3 N)
Maximum working temperature: 80 °C
Weight: 29.7 g
-
