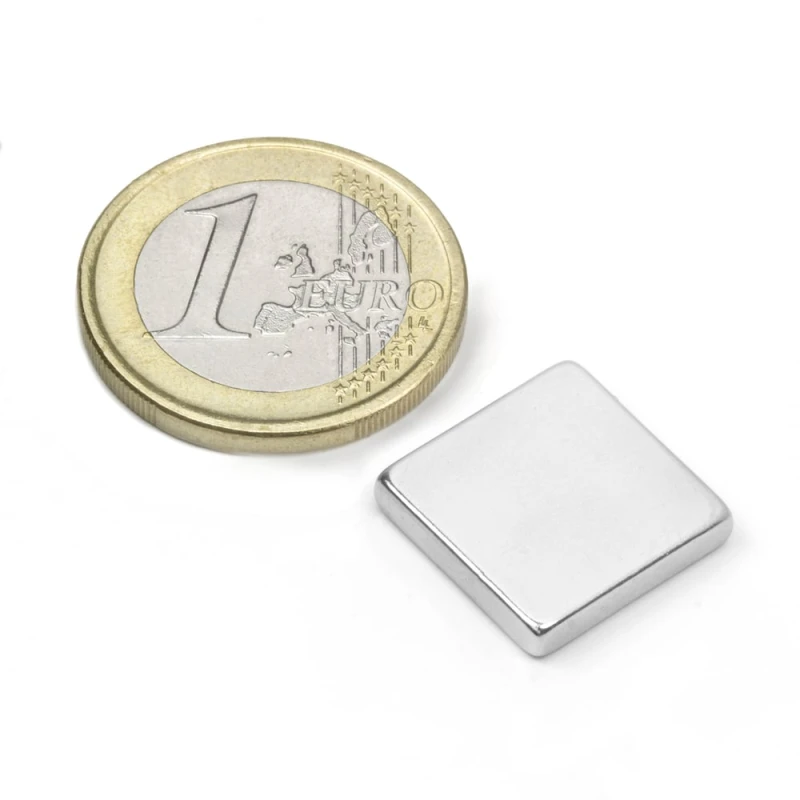

Block magnet 15 x 15 x 3 mm, Nickel-plated
SKU:Q-15-15-03-N
New
Image is for illustrative purposes only
This high-performance Neodymium block magnet (N45 grade) measures 15 x 15 x 3 mm and is designed for compact applications requiring significant holding power.
Key Features
- Material: High-strength Neodymium magnet construction.
- Grade: N45 magnetization grade.
- Dimensions: 15 x 15 x 3 mm block.
- Holding Power: Provides a strong holding force of approximately 3.4 kg.
- Environment: Optimized for reliable use exclusively in dry, indoor conditions.
Applications
These magnets are highly suitable for various creative and functional applications, including general DIY projects, model making, and securing components in handicrafts and crafts.
Key Features
- Material: High-strength Neodymium magnet construction.
- Grade: N45 magnetization grade.
- Dimensions: 15 x 15 x 3 mm block.
- Holding Power: Provides a strong holding force of approximately 3.4 kg.
- Environment: Optimized for reliable use exclusively in dry, indoor conditions.
Applications
These magnets are highly suitable for various creative and functional applications, including general DIY projects, model making, and securing components in handicrafts and crafts.
Article ID: Q-15-15-03-N
EAN: 7640155436205
Material: NdFeB
Shape: Block (Quader)
Size: 15 x 15 x 3 mm
Tolerance: +/- 0,1 mm
Magnetisation axis: 3 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: Sintered
Magnetisation Class: N45
Strength: approx. 3,4 kg (approx. 33,3 N)
Displacement force: approx. 680 g (approx. 6,67 N)
Max. working temperature: 80°C (possibly lower)
Colour: Silver-coloured
Direction of magnetisation: Magnetised heightwise (по высоте)
Weight: 5,1300 g
Curie temperature: 310 °C
Residual magnetism Br: 1.32-1.37 T (13200-13700 G)
Coercive field strength bHc: 860-995 kA/m (10.8-12.5 kOe)
Coercive field strength iHc: ≥955 kA/m (≥12 kOe)
Max. energy product (BxH)max: 342-358 kJ/m³ (43-45 MGOe)
Compliance: RoHS, REACH
EAN: 7640155436205
Material: NdFeB
Shape: Block (Quader)
Size: 15 x 15 x 3 mm
Tolerance: +/- 0,1 mm
Magnetisation axis: 3 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: Sintered
Magnetisation Class: N45
Strength: approx. 3,4 kg (approx. 33,3 N)
Displacement force: approx. 680 g (approx. 6,67 N)
Max. working temperature: 80°C (possibly lower)
Colour: Silver-coloured
Direction of magnetisation: Magnetised heightwise (по высоте)
Weight: 5,1300 g
Curie temperature: 310 °C
Residual magnetism Br: 1.32-1.37 T (13200-13700 G)
Coercive field strength bHc: 860-995 kA/m (10.8-12.5 kOe)
Coercive field strength iHc: ≥955 kA/m (≥12 kOe)
Max. energy product (BxH)max: 342-358 kJ/m³ (43-45 MGOe)
Compliance: RoHS, REACH
-
