SKU:Q-15-08-01-STIC
Image is for illustrative purposes only

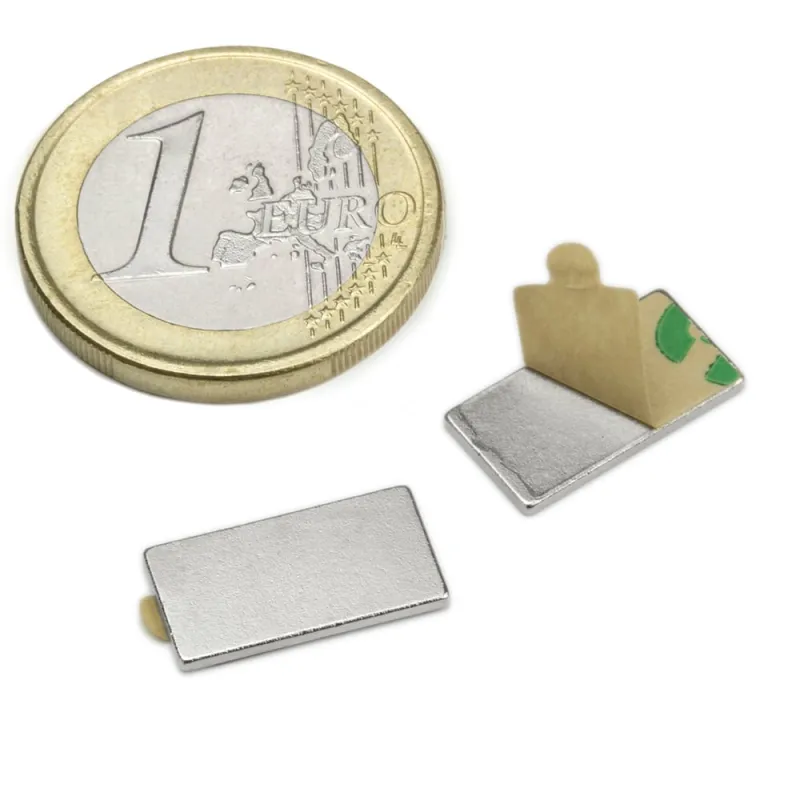

This is a self-adhesive, ultra-flat neodymium block magnet designed for quick application in creative projects and organizational tasks. It is specifically packaged in pairs to facilitate the creation of secure magnetic closures.
Key Features
- Material: Neodymium Block Magnet
- Profile: Very flat design (1 mm thickness)
- Dimensions: 15 mm (Length) x 8 mm (Width) x 1 mm (Thickness)

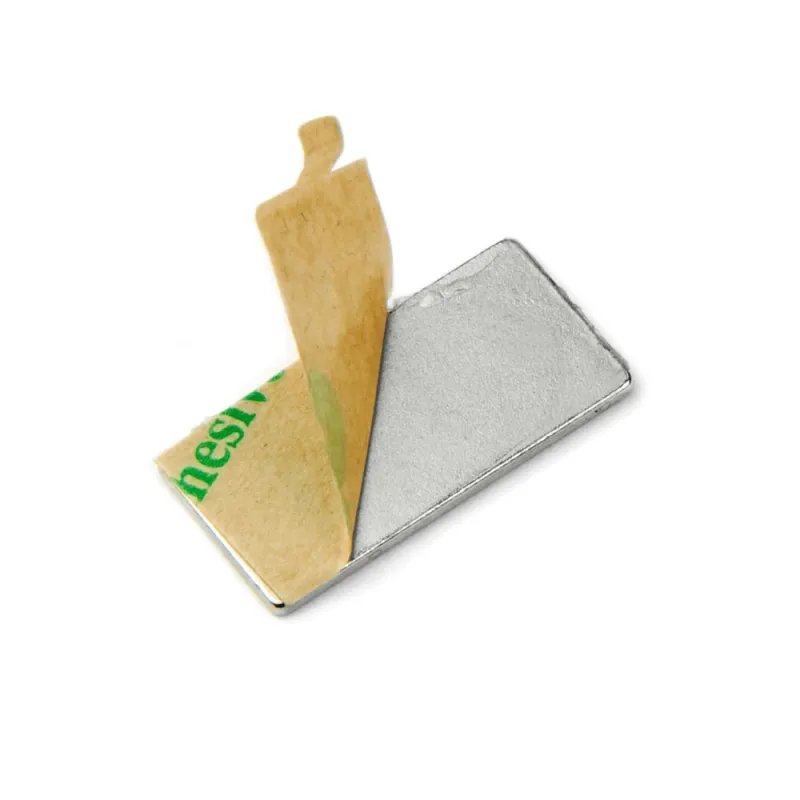

- Adhesion: Features a self-adhesive backing on one side for simple peel-and-stick mounting.
- Pairing: Supplied in matched pairs (one North pole, one South pole) specifically for creating a functional magnetic lock or closure.
Applications
This convenient solution is ideal for use in creative projects, general space organization, and securing or organizing various stationery items where a thin, reliable magnetic closure is required.
Key Features
- Material: Neodymium Block Magnet
- Profile: Very flat design (1 mm thickness)
- Dimensions: 15 mm (Length) x 8 mm (Width) x 1 mm (Thickness)
- Adhesion: Features a self-adhesive backing on one side for simple peel-and-stick mounting.
- Pairing: Supplied in matched pairs (one North pole, one South pole) specifically for creating a functional magnetic lock or closure.
Applications
This convenient solution is ideal for use in creative projects, general space organization, and securing or organizing various stationery items where a thin, reliable magnetic closure is required.
Model: Q-15-08-01-STIC
EAN: 7640155436199
Material: NdFeB
Shape: Block
Dimensions: 15 x 8 x 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Through thickness
Magnetisation grade: N35
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 600 g (5.88 N)
Shear force (approx.): 120 g (1.18 N)
Maximum working temperature: 80 °C (may be lower depending on the magnet's dimensions)
Adhesive: 3M, No. 467MP
Adhesive shelf life (approx.): 12 months
Weight: 0.912 g
Delivery format: Shipped in pairs (North/South pole adhesive sides)
EAN: 7640155436199
Material: NdFeB
Shape: Block
Dimensions: 15 x 8 x 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Through thickness
Magnetisation grade: N35
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 600 g (5.88 N)
Shear force (approx.): 120 g (1.18 N)
Maximum working temperature: 80 °C (may be lower depending on the magnet's dimensions)
Adhesive: 3M, No. 467MP
Adhesive shelf life (approx.): 12 months
Weight: 0.912 g
Delivery format: Shipped in pairs (North/South pole adhesive sides)
-
