SKU:Q-20-20-01-STIC
Image is for illustrative purposes only

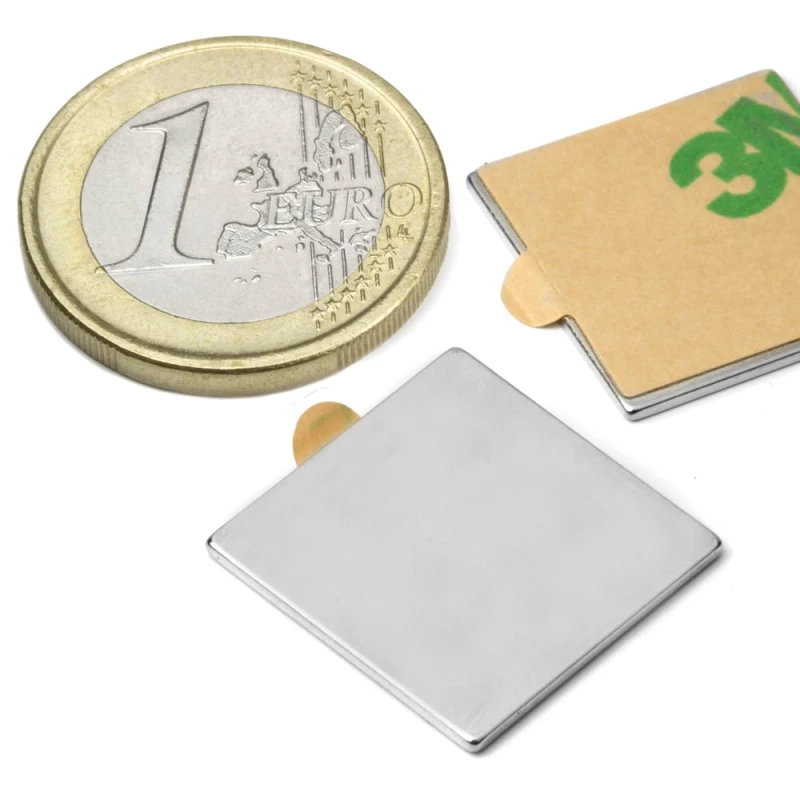

This is a compact, square Neodymium (NdFeB) magnet measuring 20x20x1 mm. It features a self-adhesive backing for quick and easy mounting, providing a strong holding force suitable for various organizational and fastening applications.
Key Features - High-strength Neodymium magnet, grade N35.
- Compact square block dimensions: 20x20x1 mm.
- Provides an approximate holding force of 1.1 kg.
- Equipped with a self-adhesive layer for simple, fast mounting to various surfaces.
Applications This versatile magnet is ideal for light-duty magnetic fastening and organization. Common uses include creating secure closures for cabinets, developing magnetic clasps or fasteners, and integration into various craft and organizational projects.
Installation Note For optimal adhesive bond strength and maximum holding capacity, allow the self-adhesive layer to cure for a minimum of 24 hours (72 hours recommended).
Key Features - High-strength Neodymium magnet, grade N35.
- Compact square block dimensions: 20x20x1 mm.
- Provides an approximate holding force of 1.1 kg.
- Equipped with a self-adhesive layer for simple, fast mounting to various surfaces.
Applications This versatile magnet is ideal for light-duty magnetic fastening and organization. Common uses include creating secure closures for cabinets, developing magnetic clasps or fasteners, and integration into various craft and organizational projects.
Installation Note For optimal adhesive bond strength and maximum holding capacity, allow the self-adhesive layer to cure for a minimum of 24 hours (72 hours recommended).
Model: Q-20-20-01-STIC
EAN: 7640155436304
Material: NdFeB
Shape: Block
Dimensions: 20 x 20 x 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Through thickness
Magnetisation grade: N35
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 1.1 kg (10.8 N)
Shear force (approx.): 220 g (2.16 N)
Maximum working temperature: 80 °C (may be lower depending on the magnet's dimensions)
Adhesive: 3M, No. 467MP
Adhesive shelf life (approx.): 12 months
Weight: 3.04 g
EAN: 7640155436304
Material: NdFeB
Shape: Block
Dimensions: 20 x 20 x 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Through thickness
Magnetisation grade: N35
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 1.1 kg (10.8 N)
Shear force (approx.): 220 g (2.16 N)
Maximum working temperature: 80 °C (may be lower depending on the magnet's dimensions)
Adhesive: 3M, No. 467MP
Adhesive shelf life (approx.): 12 months
Weight: 3.04 g
-
