Neodymium supermagnet - Block magnet 20 x 4 x 2 mm, holds approx. 1,2 kg
SKU:Q-20-04-02-N
New

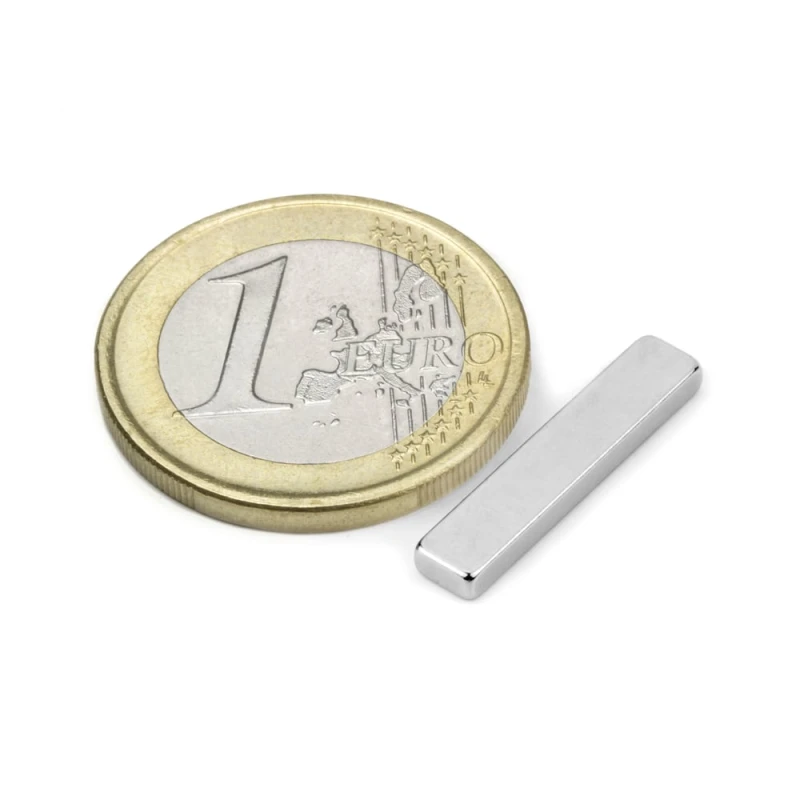

Image is for illustrative purposes only
This high-performance Neodymium (NdFeB) block magnet, grade N45, is engineered for strong adhesion in compact applications. It features a triple-layer nickel coating (Ni-Cu-Ni) for enhanced durability and corrosion resistance.
Key Specifications
- Material: Neodymium (NdFeB)
- Shape: Block (Rectangular)
- Dimensions: 20 x 4 x 2 mm
- Magnetic Grade: N45
- Pull Force (Approx.): 1.2 kg (11.8 N)
- Max. Working Temperature: 80°C
- Magnetization Axis: Along the 2 mm dimension (Height)
Compliance and Identification
- Coating: Nickel (Ni-Cu-Ni) for corrosion protection
- Compliance: Meets European RoHS and REACH directives
- Article Number: Q-20-04-02-N
Key Specifications
- Material: Neodymium (NdFeB)
- Shape: Block (Rectangular)
- Dimensions: 20 x 4 x 2 mm
- Magnetic Grade: N45
- Pull Force (Approx.): 1.2 kg (11.8 N)
- Max. Working Temperature: 80°C
- Magnetization Axis: Along the 2 mm dimension (Height)
Compliance and Identification
- Coating: Nickel (Ni-Cu-Ni) for corrosion protection
- Compliance: Meets European RoHS and REACH directives
- Article Number: Q-20-04-02-N
SKU: Q-20-04-02-N
Material: NdFeB
Shape: Block (Rectangular)
Dimensions: 20 x 4 x 2 mm
Magnetization Axis: 2 mm (along height)
Tolerance: +/- 0,1 mm
Coating: Nickel Plated (Ni-Cu-Ni)
Manufacturing Method: Sintered
Grade: N45
Pull Force (approx.): 1,2 kg (11,8 N)
Shear Force (approx.): 240 g (2,35 N)
Max. Working Temperature: 80°C
Weight: 1,2160 g
Curie Temperature: 310 °C
Residual Induction Br: 13200-13700 G, 1.32-1.37 T
Coercive Force bHc: 10.8-12.5 kOe, 860-995 kA/m
Intrinsic Coercive Force iHc: ≥12 kOe, ≥955 kA/m
Max. Energy Product (BxH)max: 43-45 MGOe, 342-358 kJ/m³
Material: NdFeB
Shape: Block (Rectangular)
Dimensions: 20 x 4 x 2 mm
Magnetization Axis: 2 mm (along height)
Tolerance: +/- 0,1 mm
Coating: Nickel Plated (Ni-Cu-Ni)
Manufacturing Method: Sintered
Grade: N45
Pull Force (approx.): 1,2 kg (11,8 N)
Shear Force (approx.): 240 g (2,35 N)
Max. Working Temperature: 80°C
Weight: 1,2160 g
Curie Temperature: 310 °C
Residual Induction Br: 13200-13700 G, 1.32-1.37 T
Coercive Force bHc: 10.8-12.5 kOe, 860-995 kA/m
Intrinsic Coercive Force iHc: ≥12 kOe, ≥955 kA/m
Max. Energy Product (BxH)max: 43-45 MGOe, 342-358 kJ/m³
-
