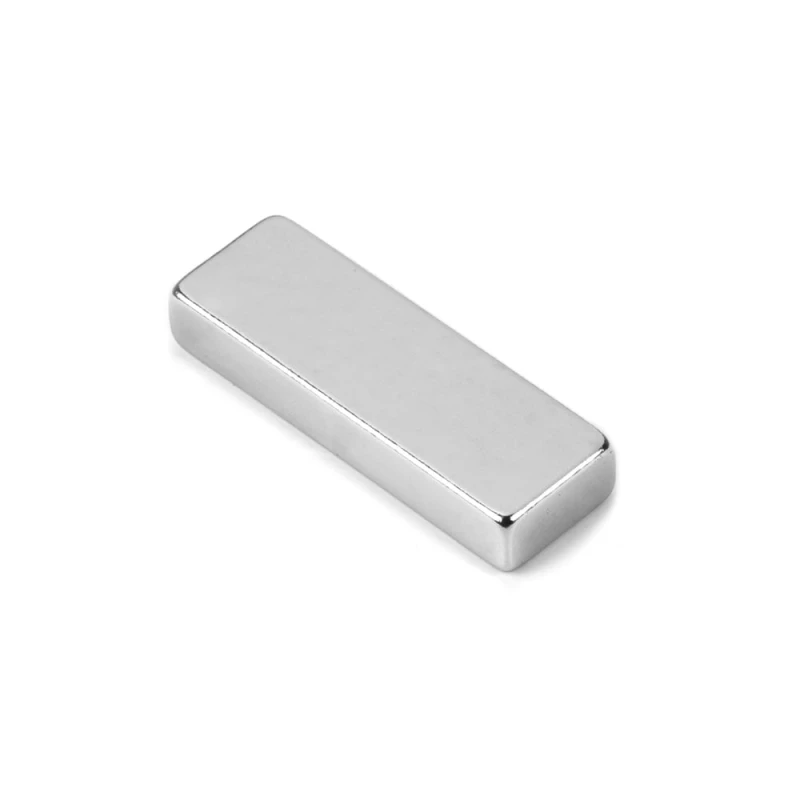

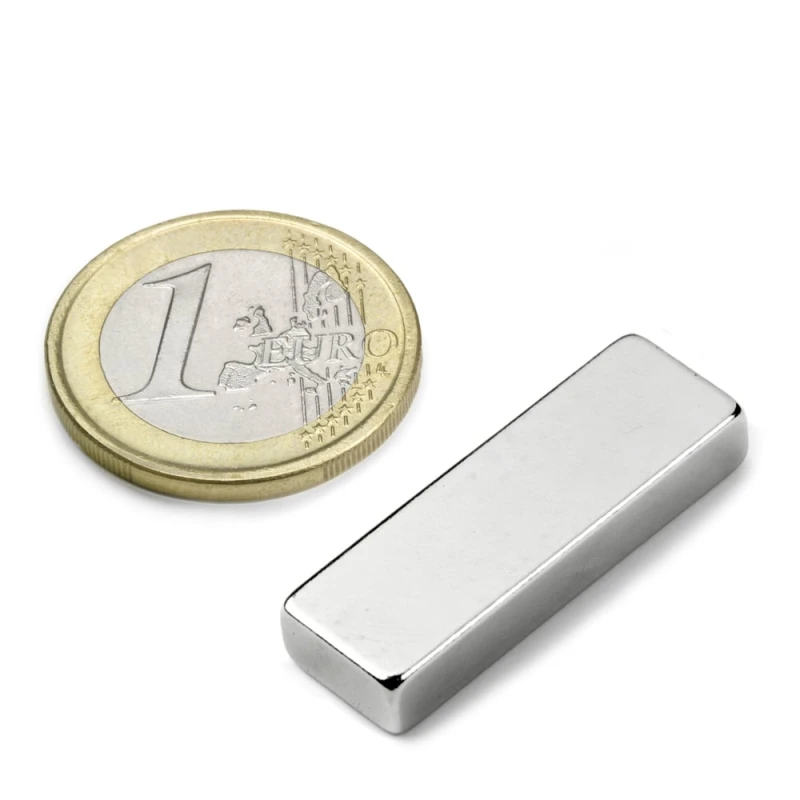

Block magnet 30 x 10 x 5 mm, Nickel-plated
SKU:Q-30-10-05-N
New
Image is for illustrative purposes only
This powerful N42 Neodymium block magnet, measuring 30 x 10 x 5 mm, is designed for high-strength holding and fastening applications requiring reliable performance.
Key Specifications
- Dimensions: 30 x 10 x 5 mm (Block shape)
- Magnet Grade: High-performance N42 Neodymium
- Holding Force: Provides a strong approximate holding force of 6.5 kg (63.7 N)
- Polarization: Magnetized through the 5 mm axis (height)
- Coating: Triple nickel plating (Ni-Cu-Ni) ensures robust protection against corrosion
Compliance and Usage
Manufactured by Webcraft GmbH / supermagnete, this product complies with the latest European RoHS and REACH directives. It is intended for use exclusively in dry, internal environments.
Key Specifications
- Dimensions: 30 x 10 x 5 mm (Block shape)
- Magnet Grade: High-performance N42 Neodymium
- Holding Force: Provides a strong approximate holding force of 6.5 kg (63.7 N)
- Polarization: Magnetized through the 5 mm axis (height)
- Coating: Triple nickel plating (Ni-Cu-Ni) ensures robust protection against corrosion
Compliance and Usage
Manufactured by Webcraft GmbH / supermagnete, this product complies with the latest European RoHS and REACH directives. It is intended for use exclusively in dry, internal environments.
Article ID: Q-30-10-05-N
EAN: 7640155436427
Material: NdFeB
Shape: Block
Size: 30 x 10 x 5 mm
Tolerance: +/- 0,1 mm
Magnetisation axis: 5 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: sintered
Magnetisation: N42
Strength: approx. 6,5 kg (approx. 63,7 N)
Displacement force: approx. 1,3 kg (approx. 12,7 N)
Max. working temperature: 80°C (possibly lower)
Colour: Silver-coloured
Direction of magnetisation: Magnetised heightwise (5 mm axis)
Weight: 11,4000 g
Curie temperature: 310 °C
Residual magnetism Br: 12900-13200 G, 1.29-1.32 T
Coercive field strength bHc: 10.8-12.0 kOe, 860-955 kA/m
Coercive field strength iHc: ≥12 kOe, ≥955 kA/m
Energy product (BxH)max: 40-42 MGOe, 318-334 kJ/m³
EAN: 7640155436427
Material: NdFeB
Shape: Block
Size: 30 x 10 x 5 mm
Tolerance: +/- 0,1 mm
Magnetisation axis: 5 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: sintered
Magnetisation: N42
Strength: approx. 6,5 kg (approx. 63,7 N)
Displacement force: approx. 1,3 kg (approx. 12,7 N)
Max. working temperature: 80°C (possibly lower)
Colour: Silver-coloured
Direction of magnetisation: Magnetised heightwise (5 mm axis)
Weight: 11,4000 g
Curie temperature: 310 °C
Residual magnetism Br: 12900-13200 G, 1.29-1.32 T
Coercive field strength bHc: 10.8-12.0 kOe, 860-955 kA/m
Coercive field strength iHc: ≥12 kOe, ≥955 kA/m
Energy product (BxH)max: 40-42 MGOe, 318-334 kJ/m³
-
