Block magnet 5 x 1,5 x 1 mm, holds approx. 140 g
SKU:Q-05-1.5-01-N
New

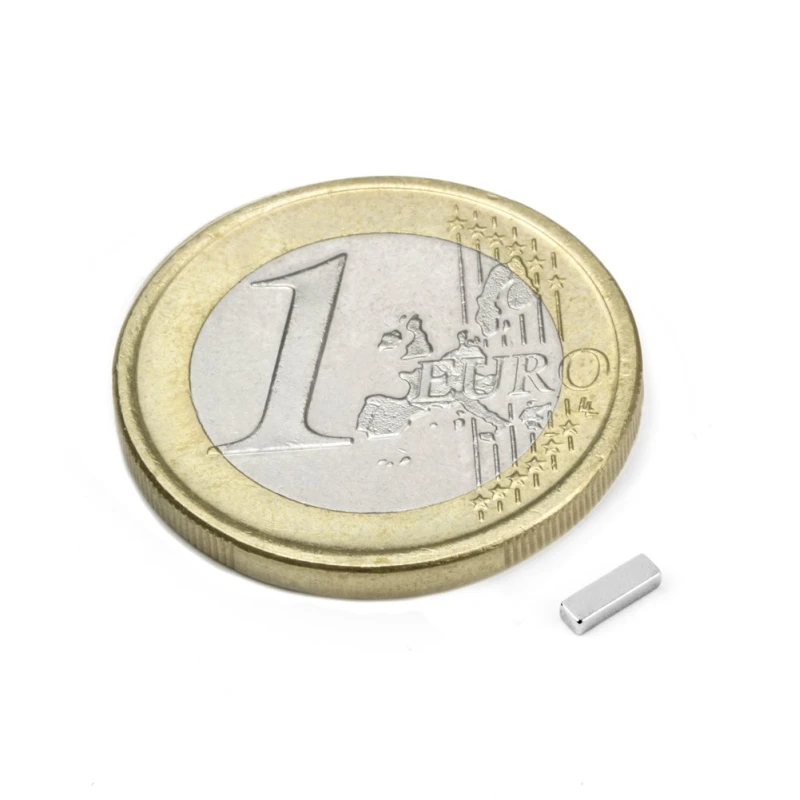

Image is for illustrative purposes only
This compact, high-performance NdFeB neodymium block magnet features a powerful N45 grade and is designed for applications requiring strong adhesion in a minimal footprint.
Key Features
- Ultra-compact block dimensions: 5 x 1.5 x 1 mm.
- Constructed from high-strength NdFeB material, rated N45.
- Provides a reliable adhesive force of approximately 140 grams.
- Protected by a durable triple-layer Nickel (Ni-Cu-Ni) coating for enhanced corrosion resistance.
- Maximum operating temperature: 80°C.
Compliance
This product conforms to the latest European environmental directives, including RoHS and REACH regulations.
Key Features
- Ultra-compact block dimensions: 5 x 1.5 x 1 mm.
- Constructed from high-strength NdFeB material, rated N45.
- Provides a reliable adhesive force of approximately 140 grams.
- Protected by a durable triple-layer Nickel (Ni-Cu-Ni) coating for enhanced corrosion resistance.
- Maximum operating temperature: 80°C.
Compliance
This product conforms to the latest European environmental directives, including RoHS and REACH regulations.
Article ID: Q-05-1.5-01-N
EAN: 7640155435796
Material: NdFeB
Shape: Block
Size: 5 x 1,5 x 1 mm
Tolerance: +/- 0,1 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Magnetisation: N45
Strength: approx. 140 g (approx. 1,37 N)
Displacement Force: approx. 28 g (approx. 0,275 N)
Max. Working Temperature: 80°C (possibly lower)
Direction of Magnetisation: Magnetised heightwise (по высоте)
Weight: 0,0570 g
Curie Temperature: 310 °C
Residual Magnetism Br: 13200-13700 G, 1.32-1.37 T
Energy Product (BxH)max: 43-45 MGOe, 342-358 kJ/m³
EAN: 7640155435796
Material: NdFeB
Shape: Block
Size: 5 x 1,5 x 1 mm
Tolerance: +/- 0,1 mm
Coating: Nickel-plated (Ni-Cu-Ni)
Magnetisation: N45
Strength: approx. 140 g (approx. 1,37 N)
Displacement Force: approx. 28 g (approx. 0,275 N)
Max. Working Temperature: 80°C (possibly lower)
Direction of Magnetisation: Magnetised heightwise (по высоте)
Weight: 0,0570 g
Curie Temperature: 310 °C
Residual Magnetism Br: 13200-13700 G, 1.32-1.37 T
Energy Product (BxH)max: 43-45 MGOe, 342-358 kJ/m³
-
