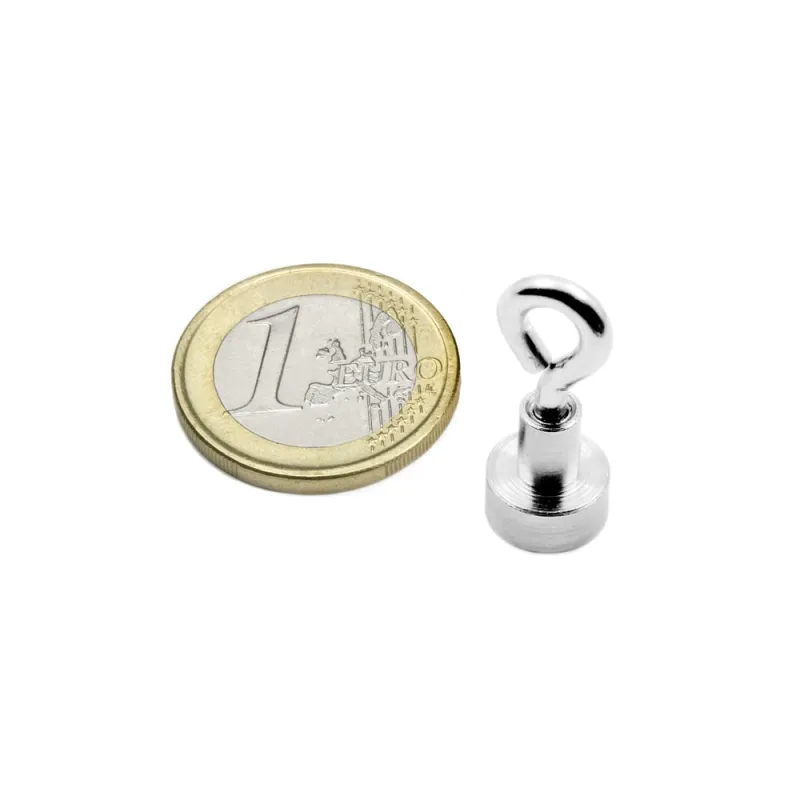

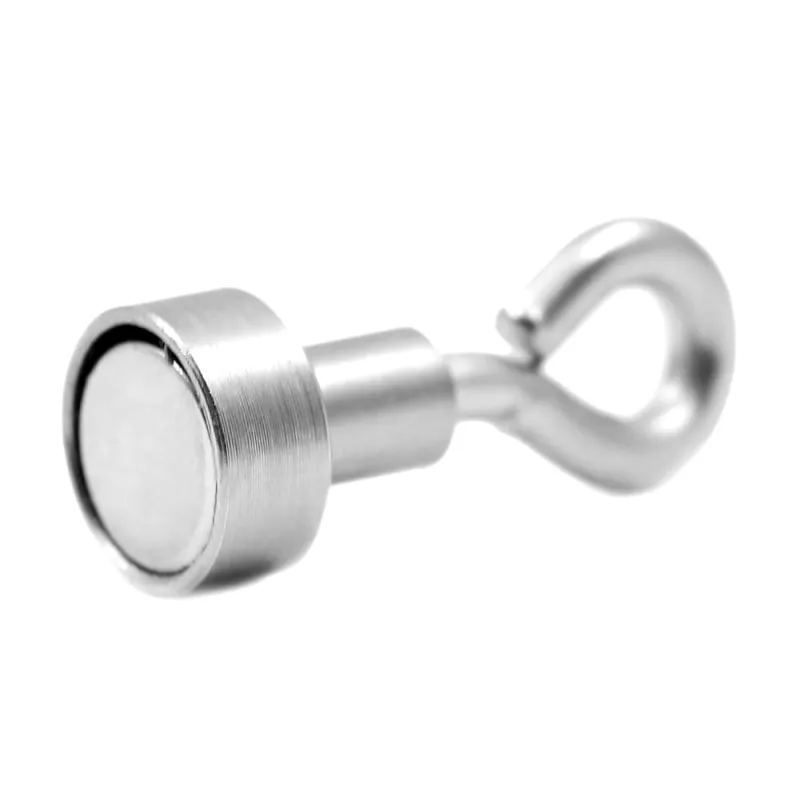

Neodymium pot magnet Ø 10 mm with eyelet, M3 thread

The compact Neodymium pot magnet (Ø 10 mm) with a versatile M3 eyelet provides a secure and simple hanging solution for ferromagnetic surfaces, ideal for decorations or hanging baskets utilizing hooks or carabiners.

Key Specifications

Maximum Vertical Adhesive Force: 3 kg (achieved when the load pulls vertically downward).

Maximum Displacement (Shear) Force: 600 g (when attached to a vertical wall).

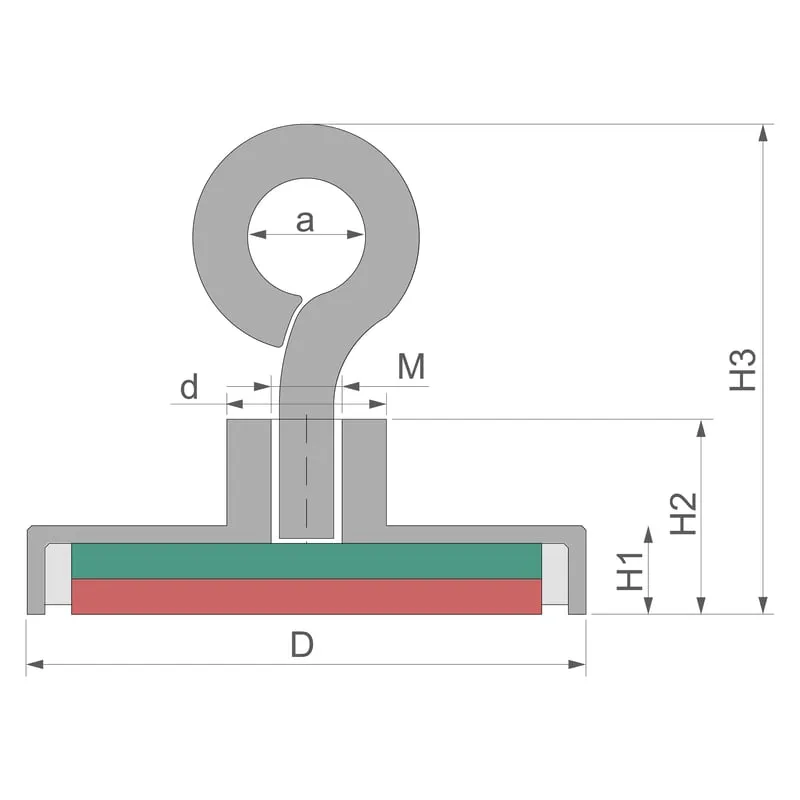

Magnet Type: Neodymium pot magnet (Ø 10 mm with screw socket).

Eyelet Detail: M3 threaded eyelet bolt (4.3 mm inner diameter).

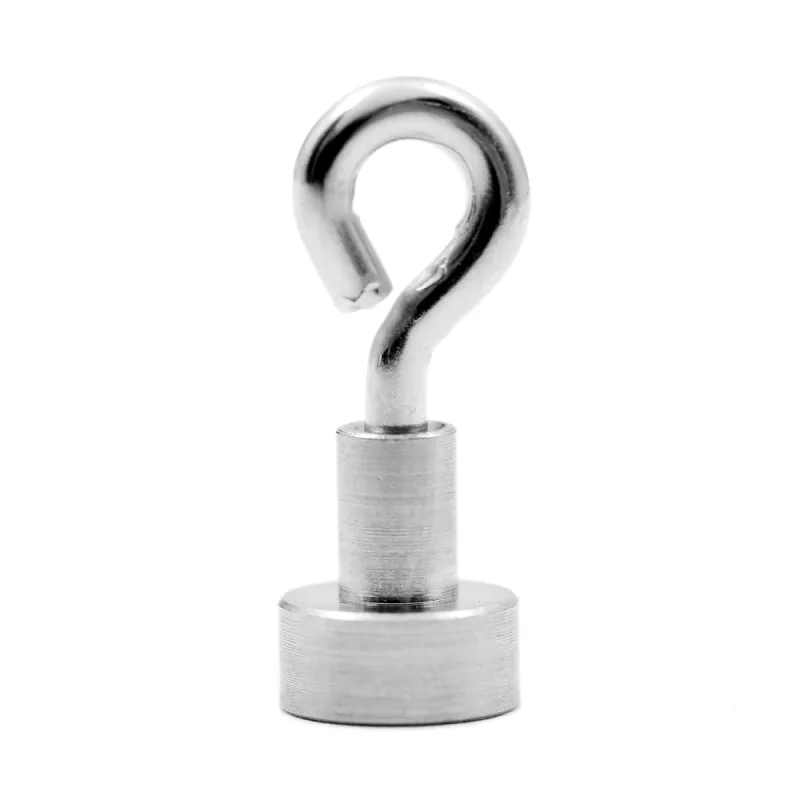

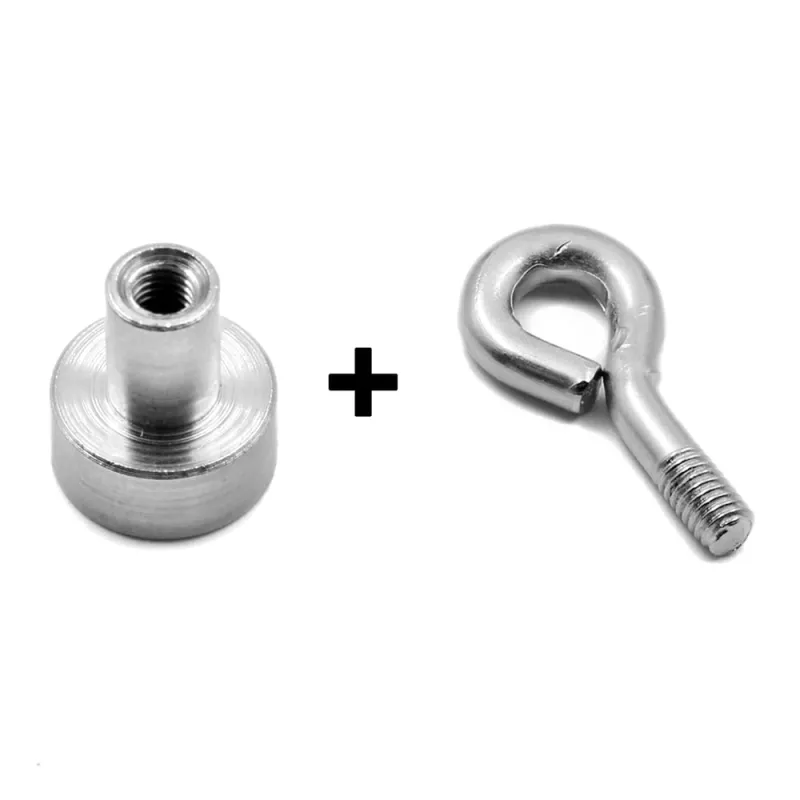

Versatility: The eyelet can be unscrewed and replaced with other M3 threaded hooks or handles.

Performance Guidance

Achieving the maximum adhesive force requires the ferromagnetic surface to be smooth, of sufficient thickness, and allow for full, direct contact. Note that pot magnets lose significant holding force rapidly if even a small gap exists between the magnet and the surface.
