SKU:S-20-06-N
Image is for illustrative purposes only

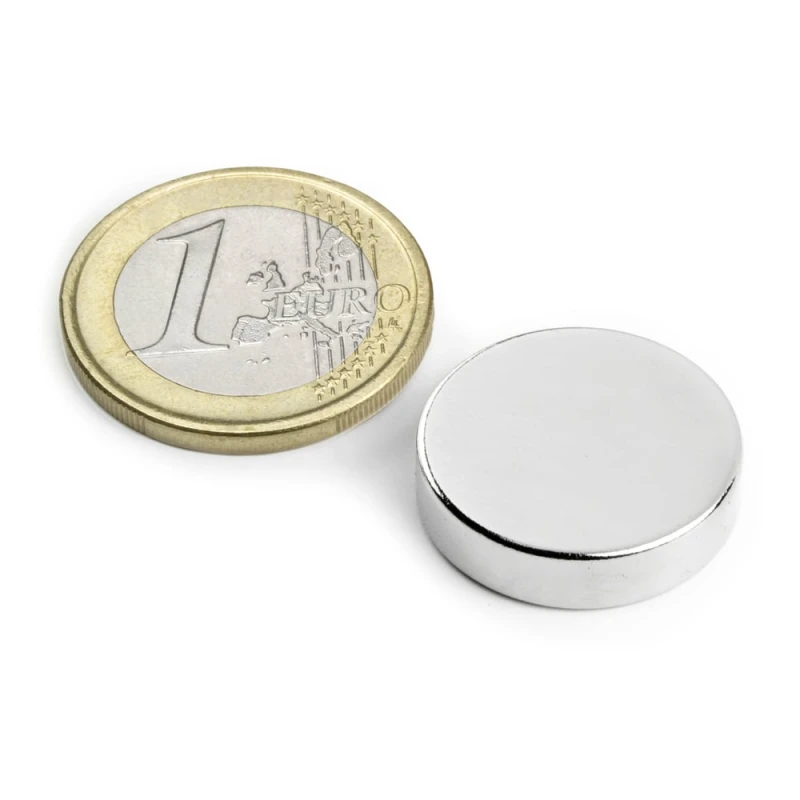

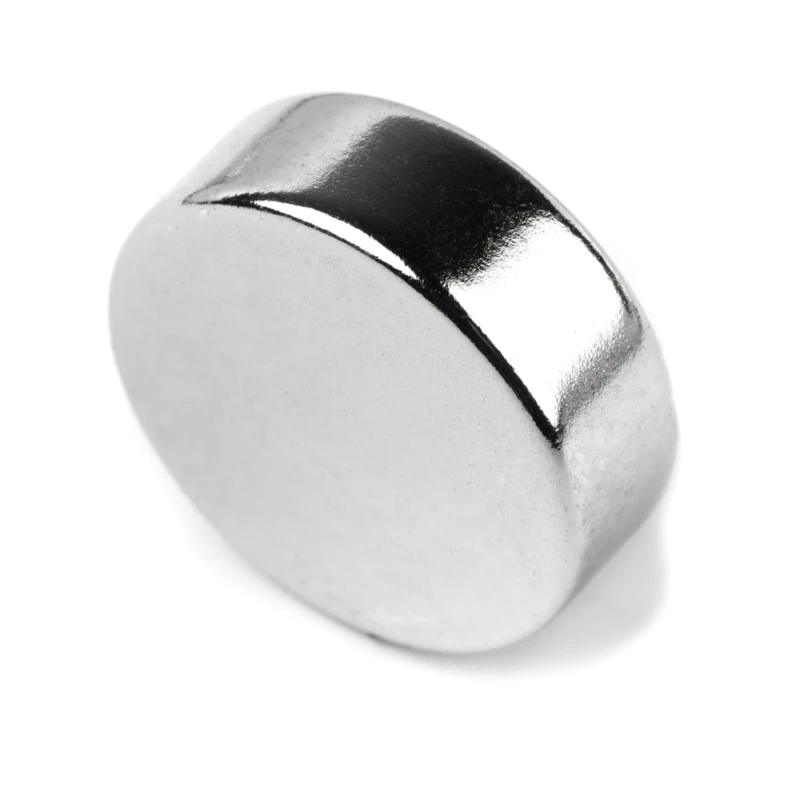

This high-performance Neodymium disc magnet (SKU S-20-06-N) features a diameter of 20 mm and a height of 6 mm. Manufactured from NdFeB alloy, it is engineered for strong, reliable holding power in industrial and project applications.
Key Features
- Constructed from Neodymium, Iron, and Boron (NdFeB) alloy.
- High magnetization grade N42.
- Triple Ni-Cu-Ni nickel plating, providing corrosion resistance and a durable silver finish.
- Impressive holding force of approximately 7.5 kg (73.5 N).
- Axial magnetization direction (parallel to the 6 mm height).
- Maximum operational temperature of 80°C.
Applications
This magnet is suitable for demanding industrial purposes requiring high magnetic strength, as well as for various craft and DIY projects. Use is recommended in dry indoor environments.
Key Features
- Constructed from Neodymium, Iron, and Boron (NdFeB) alloy.
- High magnetization grade N42.
- Triple Ni-Cu-Ni nickel plating, providing corrosion resistance and a durable silver finish.
- Impressive holding force of approximately 7.5 kg (73.5 N).
- Axial magnetization direction (parallel to the 6 mm height).
- Maximum operational temperature of 80°C.
Applications
This magnet is suitable for demanding industrial purposes requiring high magnetic strength, as well as for various craft and DIY projects. Use is recommended in dry indoor environments.
Model: S-20-06-N
EAN: 7640155438070
Material: NdFeB
Shape: Disc
Diameter: 20 mm
Height: 6 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Axial (parallel to height)
Magnetisation grade: N42
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 7.5 kg (73.5 N)
Shear force (approx.): 1.5 kg (14.6 N)
Maximum working temperature: 80 °C
Weight: 14.33 g
EAN: 7640155438070
Material: NdFeB
Shape: Disc
Diameter: 20 mm
Height: 6 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Axial (parallel to height)
Magnetisation grade: N42
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 7.5 kg (73.5 N)
Shear force (approx.): 1.5 kg (14.6 N)
Maximum working temperature: 80 °C
Weight: 14.33 g
