SKU:FTNW-25
Image is for illustrative purposes only

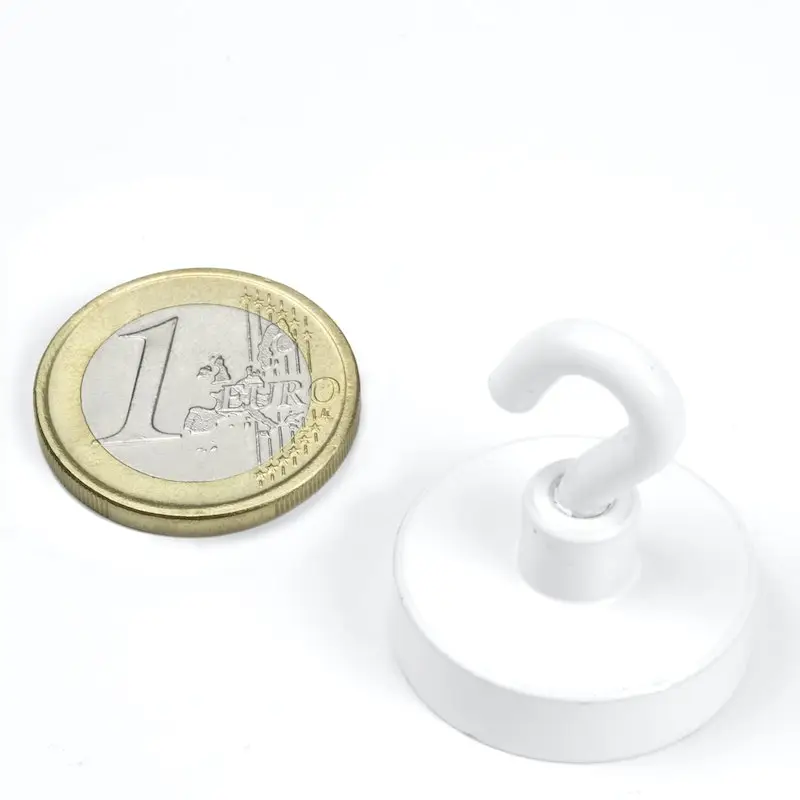

This strong magnetic hook features a white powder-coating, which is applied through an electrostatic process and is free of harmful substances. Thanks to its color, the magnetic hook is inconspicuous when mounted on white walls or ceilings.
If you would like to attach the hook magnet to a ferromagnetic surface on a wall, please take note of the indicated displacement force. This specification corresponds to the maximum weight the magnetic hook can support on the wall under optimal conditions.
The full adhesive force is achieved when the ferromagnetic counterpart is smooth and of sufficient thickness, and when the pot magnet makes direct and full flush contact. Pot magnets lose much of their adhesive force even at a distance of only half a millimeter from the ferromagnetic surface. Please note to carefully screw the hook into the threaded bushing as far as it will go.
If you would like to attach the hook magnet to a ferromagnetic surface on a wall, please take note of the indicated displacement force. This specification corresponds to the maximum weight the magnetic hook can support on the wall under optimal conditions.
The full adhesive force is achieved when the ferromagnetic counterpart is smooth and of sufficient thickness, and when the pot magnet makes direct and full flush contact. Pot magnets lose much of their adhesive force even at a distance of only half a millimeter from the ferromagnetic surface. Please note to carefully screw the hook into the threaded bushing as far as it will go.
Article ID FTNW-25
EAN 7640155432559
Material NdFeB
Strength approx. 16 kg (approx. 157 N)
Displacement force approx. 3,2 kg (approx. 31,4 N)
Colour White
Design With round hook
Pot diameter D 25,3 mm
Neck diameter d 8,3 mm
Pot height H1 7,3 mm
Total height without hook H2 14,3 mm
Total height with hook H3 30,3 mm
Thread size M4
Hook opening width a 3,7 mm
Hook inside diameter b 5,2 mm
Tolerance +/- 0,2 mm
Coating Nickel-coated (Ni-Cu-Ni), powder coated
Magnetisation N38
Max. working temperature 80 °C
Shape Disc
Steel Q235 (China)
Weight 29 g
EAN 7640155432559
Material NdFeB
Strength approx. 16 kg (approx. 157 N)
Displacement force approx. 3,2 kg (approx. 31,4 N)
Colour White
Design With round hook
Pot diameter D 25,3 mm
Neck diameter d 8,3 mm
Pot height H1 7,3 mm
Total height without hook H2 14,3 mm
Total height with hook H3 30,3 mm
Thread size M4
Hook opening width a 3,7 mm
Hook inside diameter b 5,2 mm
Tolerance +/- 0,2 mm
Coating Nickel-coated (Ni-Cu-Ni), powder coated
Magnetisation N38
Max. working temperature 80 °C
Shape Disc
Steel Q235 (China)
Weight 29 g
-
