SKU:TCN-25
New
Image is for illustrative purposes only

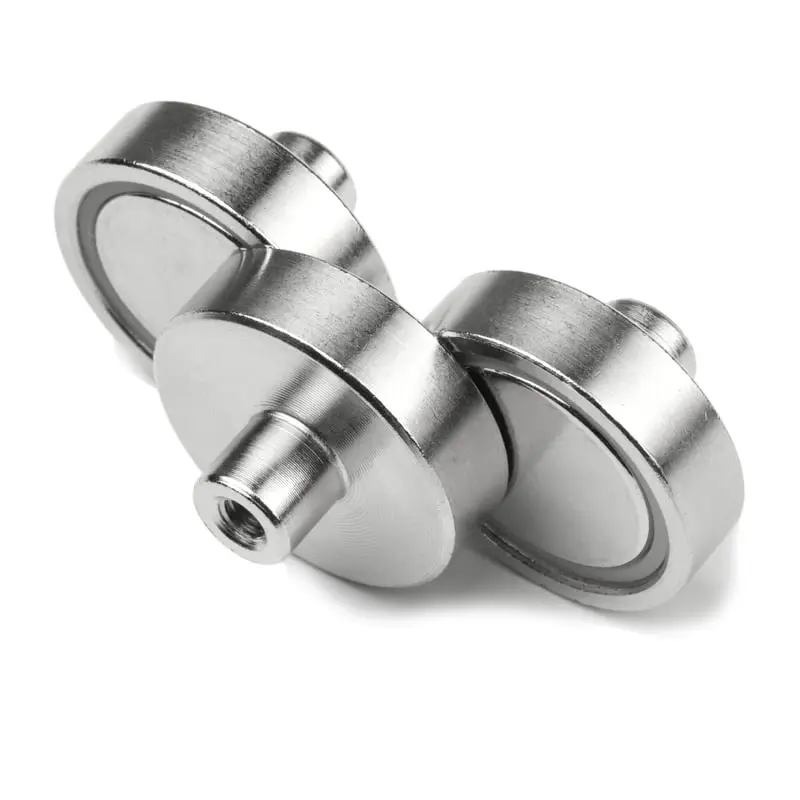

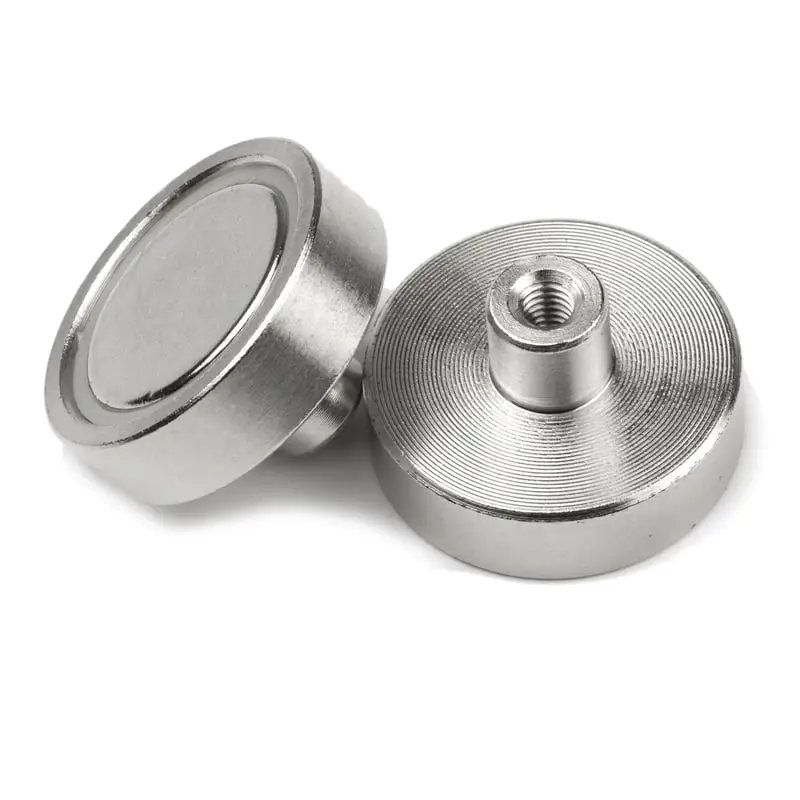

Supermagnete TCN-25 is a neodymium pot magnet in a steel housing with an M4 threaded socket. A suitable hook, eyelet or other M4 accessory can be attached to the socket. The approximate 18 kg holding force is achieved with direct, full contact against a smooth and sufficiently thick ferromagnetic surface; the force falls quickly as the gap increases. Magnets are not toys and must be kept away from children.
Type: neodymium pot magnet with threaded socket
Material: NdFeB
Magnetisation: N38
Approximate holding force: 18 kg / 177 N
Approximate displacement force: 3.6 kg / 35.3 N
Pot diameter: 25 mm
Neck diameter: 8 mm
Pot height: 7 mm
Total height: 14 mm
Thread: M4
Coating: nickel, Ni-Cu-Ni
Maximum working temperature: 80 °C
Shape: disc
Weight: 27 g
EAN: 7640155438612
Material: NdFeB
Magnetisation: N38
Approximate holding force: 18 kg / 177 N
Approximate displacement force: 3.6 kg / 35.3 N
Pot diameter: 25 mm
Neck diameter: 8 mm
Pot height: 7 mm
Total height: 14 mm
Thread: M4
Coating: nickel, Ni-Cu-Ni
Maximum working temperature: 80 °C
Shape: disc
Weight: 27 g
EAN: 7640155438612
-
