SKU:S-02-01-N
Image is for illustrative purposes only

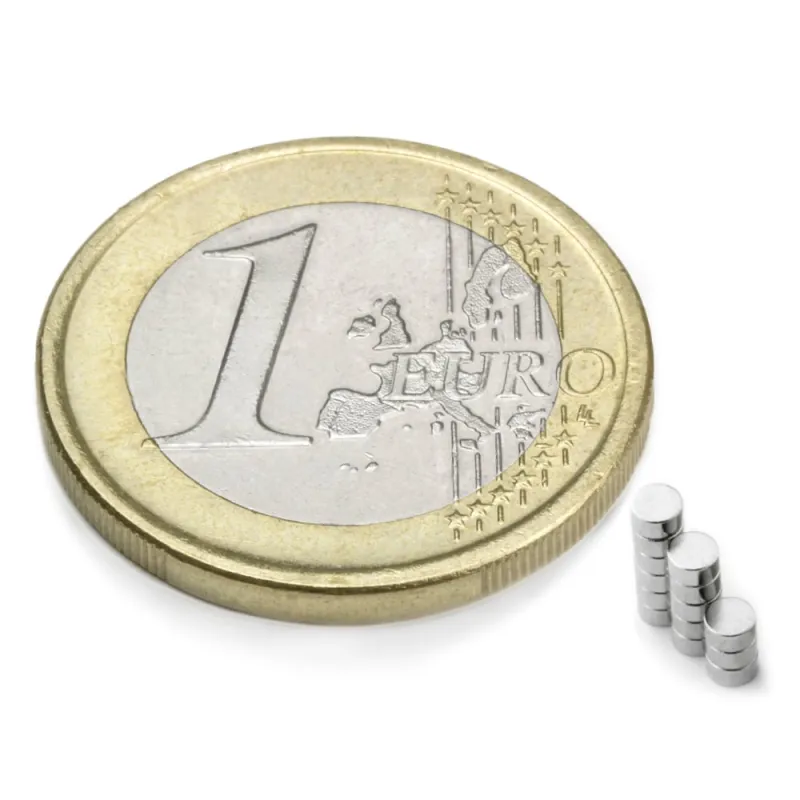

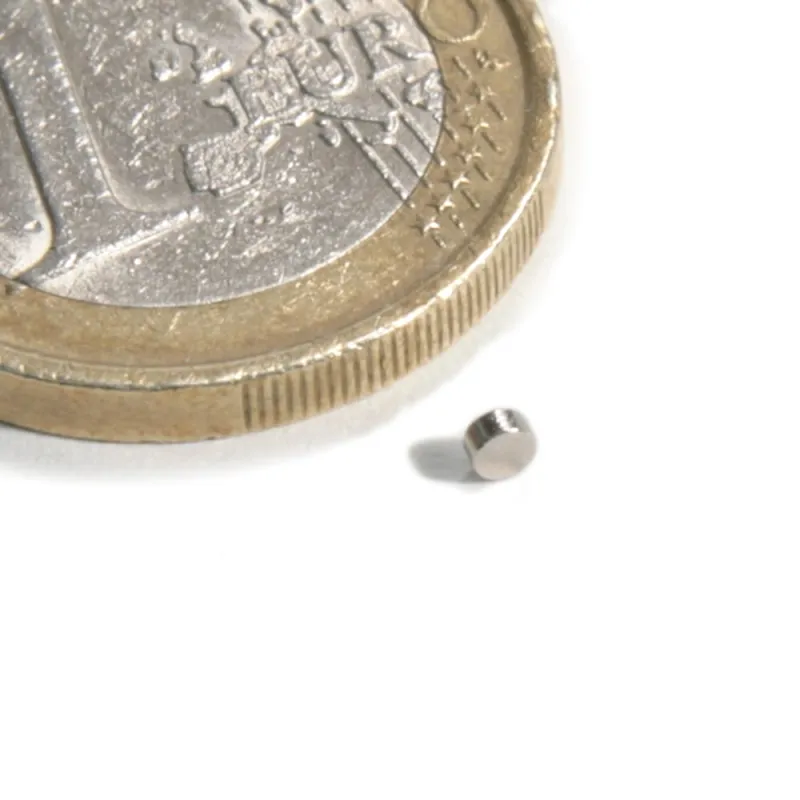

This compact N48 grade Neodymium (NdFeB) disc magnet is designed for light-duty fastening applications.
Measuring 2 mm in diameter and 1 mm high, it provides approximately 110 g of reliable holding force.
Key Specifications
- Material: Neodymium Iron Boron (NdFeB)
- Grade: N48 Magnetization
- Dimensions: Disc, Diameter 2 mm x Height 1 mm
- Holding Force: Approximately 110 g
- Magnetization Direction: Axial (parallel to height)
- Coating: Triple-layer Nickel plating (Ni-Cu-Ni) for corrosion protection
Applications and Usage
Due to its small size and reliable holding strength, this magnet is suitable for securing lightweight items, such as photographs, small labels, or business cards, onto metallic surfaces.
The magnet is intended solely for use in dry, internal environments.
Measuring 2 mm in diameter and 1 mm high, it provides approximately 110 g of reliable holding force.
Key Specifications
- Material: Neodymium Iron Boron (NdFeB)
- Grade: N48 Magnetization
- Dimensions: Disc, Diameter 2 mm x Height 1 mm
- Holding Force: Approximately 110 g
- Magnetization Direction: Axial (parallel to height)
- Coating: Triple-layer Nickel plating (Ni-Cu-Ni) for corrosion protection
Applications and Usage
Due to its small size and reliable holding strength, this magnet is suitable for securing lightweight items, such as photographs, small labels, or business cards, onto metallic surfaces.
The magnet is intended solely for use in dry, internal environments.
Model: S-02-01-N
EAN: 7640155436915
Material: NdFeB
Shape: Disc
Diameter: 2 mm
Height: 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Axial (parallel to height)
Magnetisation grade: N48
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 110 g (1.08 N)
Shear force (approx.): 21 g (0.206 N)
Maximum working temperature: 80 °C
Weight: 0.0239 g
EAN: 7640155436915
Material: NdFeB
Shape: Disc
Diameter: 2 mm
Height: 1 mm
Dimensional tolerance: +/- 0.1 mm
Direction of magnetisation: Axial (parallel to height)
Magnetisation grade: N48
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 110 g (1.08 N)
Shear force (approx.): 21 g (0.206 N)
Maximum working temperature: 80 °C
Weight: 0.0239 g
-
