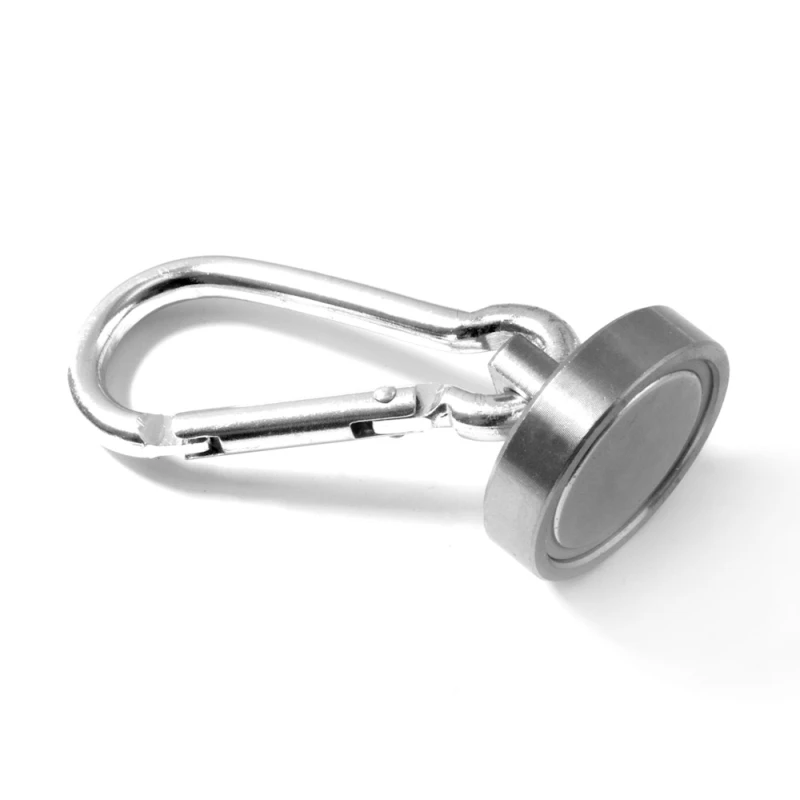

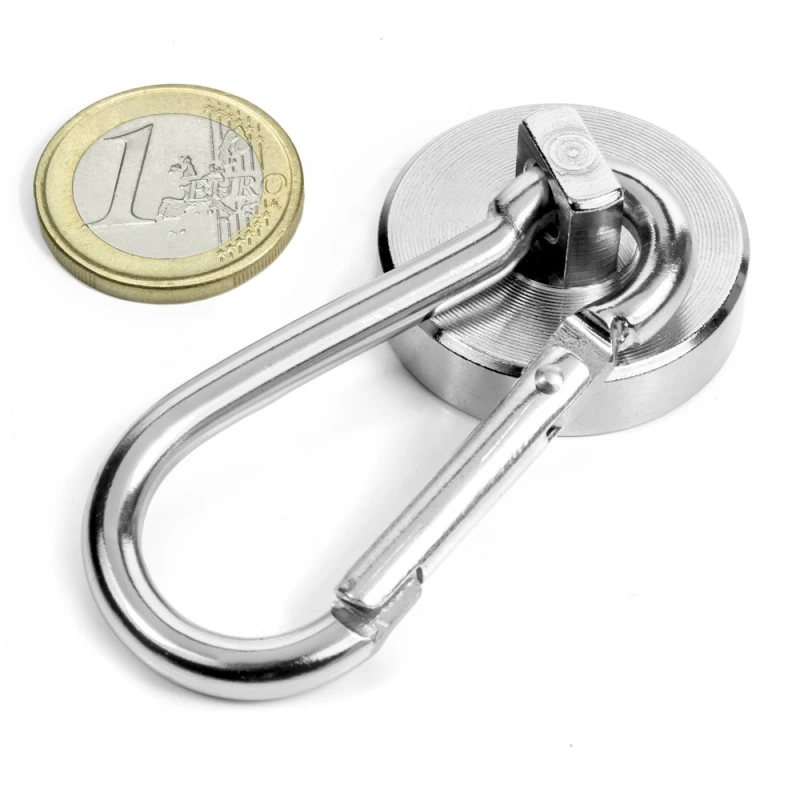

neodymium pot magnet Ø 32 mm with carabiner, holds approx. 39 kg, length of carabiner 60 mm
SKU:KTN-32
Image is for illustrative purposes only
The KTN-32 Neodymium Pot Magnet is a powerful 32mm diameter magnet designed for secure object attachment in various settings. Key Features
- Exceptional Holding Force: Capable of holding up to 39 kg, ensuring reliable attachment even with lateral tension.
- Integrated Carabiner: Features a 60 mm long carabiner for versatile hanging and attachment options. The carabiner is also removable for flexible use.
- Durable Construction: Made from Neodymium (NdFeB) with a protective Ni-Cu-Ni nickel coating for enhanced durability and corrosion resistance.
- Optimal Performance: Operates efficiently up to a maximum working temperature of 80 °C.
- Compact Size: With a diameter of 32 mm, it offers significant strength in a manageable form factor.
- European Compliance: Meets the latest European RoHS and REACH directives, ensuring environmental and safety standards.
Applications
This versatile magnet serves as a strong alternative to magnets with eyelets or hooks, making it suitable for a wide range of uses in both home and workshop environments.
- Exceptional Holding Force: Capable of holding up to 39 kg, ensuring reliable attachment even with lateral tension.
- Integrated Carabiner: Features a 60 mm long carabiner for versatile hanging and attachment options. The carabiner is also removable for flexible use.
- Durable Construction: Made from Neodymium (NdFeB) with a protective Ni-Cu-Ni nickel coating for enhanced durability and corrosion resistance.
- Optimal Performance: Operates efficiently up to a maximum working temperature of 80 °C.
- Compact Size: With a diameter of 32 mm, it offers significant strength in a manageable form factor.
- European Compliance: Meets the latest European RoHS and REACH directives, ensuring environmental and safety standards.
Applications
This versatile magnet serves as a strong alternative to magnets with eyelets or hooks, making it suitable for a wide range of uses in both home and workshop environments.
Material: NdFeB
Holding Force (approx.): 39 kg (382 N)
Shear Force (approx.): 7,8 kg (76,5 N)
Color: Silver-coloured
Version: With carabiner

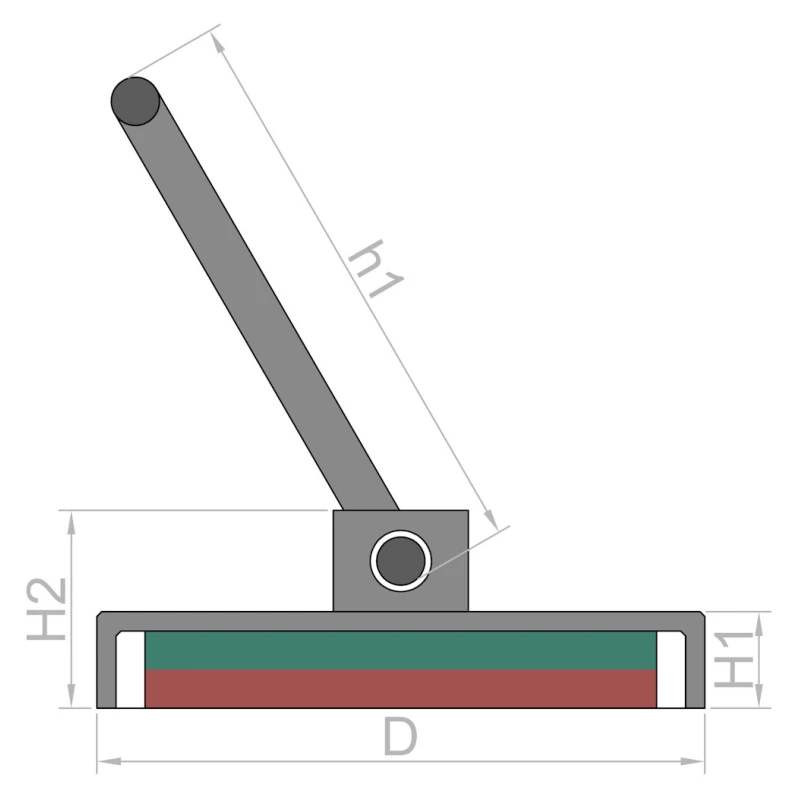

Magnet Diameter (D): 32 mm
Magnet Height (H1): 8 mm
Total Height without Carabiner (H2): 18,5 mm
Carabiner Length (h1): 60 mm
Max. Weight on Carabiner: 15 kg
Tolerance: +/- 0,1 mm
Magnetization Grade: N42
Carabiner Material: Aluminium
Carabiner Color: Metallic shiny
Coating: Nickel-coated (Ni-Cu-Ni)
Max. Operating Temperature: 80 °C
Shape: Disc
Steel: Q235
Weight: 54,5 g
Compliance: RoHS, REACH
