Self-adhesive disc magnet Ø 6 mm, height 0.75 mm, NdFeB N35
SKU:S-06-0.75-STIC
New

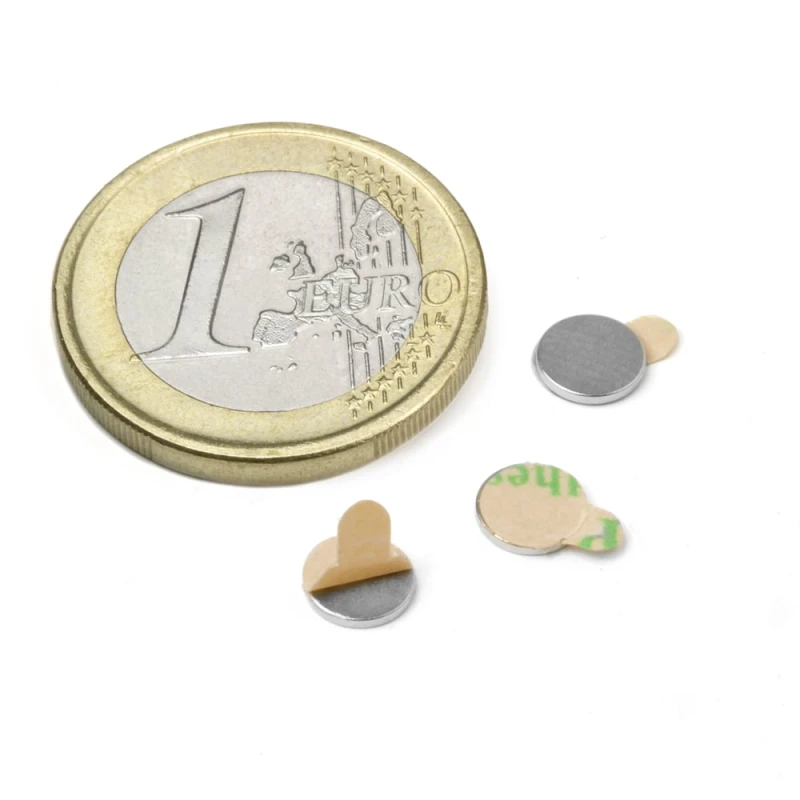

Image is for illustrative purposes only
This ultra-flat, self-adhesive disc magnet is designed for discreet and convenient mounting solutions where minimal profile is required. Supplied in functional North/South pairs, these mini-magnets are ideal for creative projects and non-destructive hanging applications.
Key Features
- Ultra-flat disc design for discreet application.
- Dimensions: 6 mm Diameter x 0.75 mm Thickness.
- Single self-adhesive side on every magnet.
- Supplied in attracting pairs (one North pole, one South pole) for immediate fastening.
- The adhesive side corresponds directly to the designated magnetic pole (N or S).
- Features an easy-peel tab for quick removal of the protective film.
Applications
These mini-magnets provide a simple, non-permanent fastening solution suitable for mailings, creative crafts, and display work. They are specifically useful for hanging lightweight items, such as photographs, without requiring pins or causing surface damage.
Key Features
- Ultra-flat disc design for discreet application.
- Dimensions: 6 mm Diameter x 0.75 mm Thickness.
- Single self-adhesive side on every magnet.
- Supplied in attracting pairs (one North pole, one South pole) for immediate fastening.
- The adhesive side corresponds directly to the designated magnetic pole (N or S).
- Features an easy-peel tab for quick removal of the protective film.
Applications
These mini-magnets provide a simple, non-permanent fastening solution suitable for mailings, creative crafts, and display work. They are specifically useful for hanging lightweight items, such as photographs, without requiring pins or causing surface damage.
Article ID: S-06-0.75-STIC
EAN: 7640155437240
Material: NdFeB
Shape: Disc
Diameter: 6 mm
Height: 0,75 mm
Tolerance: +/- 0,1 mm
Direction of magnetisation: axial (parallel to height)
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: sintered
Magnetisation: N35
Strength: approx. 230 g (approx. 2,26 N)
Displacement force: approx. 46 g (approx. 0,455 N)
Max. working temperature: 80°C (possibly lower)
Adhesive: 3M, No. 467MP
Shelf life adhesive: 12 months (approx.)
Design: Self-adhesive (film)
Weight: 0,16 g
Curie temperature: 310 °C
Residual magnetism Br: 11700-12100 G, 1.17-1.21 T
Coercive field strength bHc: 10.8-11.5 kOe, 860-915 kA/m
Coercive field strength iHc: ≥12 kOe, ≥955 kA/m
Max. energy product (BxH)max: 33-35 MGOe, 263-279 kJ/m³
EAN: 7640155437240
Material: NdFeB
Shape: Disc
Diameter: 6 mm
Height: 0,75 mm
Tolerance: +/- 0,1 mm
Direction of magnetisation: axial (parallel to height)
Coating: Nickel-plated (Ni-Cu-Ni)
Manufacturing method: sintered
Magnetisation: N35
Strength: approx. 230 g (approx. 2,26 N)
Displacement force: approx. 46 g (approx. 0,455 N)
Max. working temperature: 80°C (possibly lower)
Adhesive: 3M, No. 467MP
Shelf life adhesive: 12 months (approx.)
Design: Self-adhesive (film)
Weight: 0,16 g
Curie temperature: 310 °C
Residual magnetism Br: 11700-12100 G, 1.17-1.21 T
Coercive field strength bHc: 10.8-11.5 kOe, 860-915 kA/m
Coercive field strength iHc: ≥12 kOe, ≥955 kA/m
Max. energy product (BxH)max: 33-35 MGOe, 263-279 kJ/m³
-
