SKU:GTN-32
Image is for illustrative purposes only

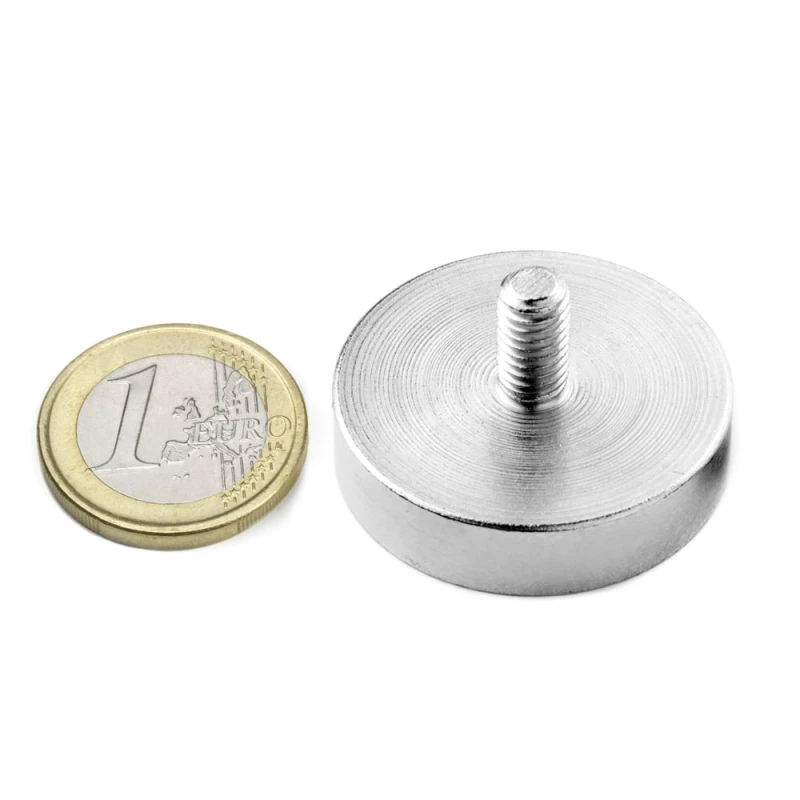

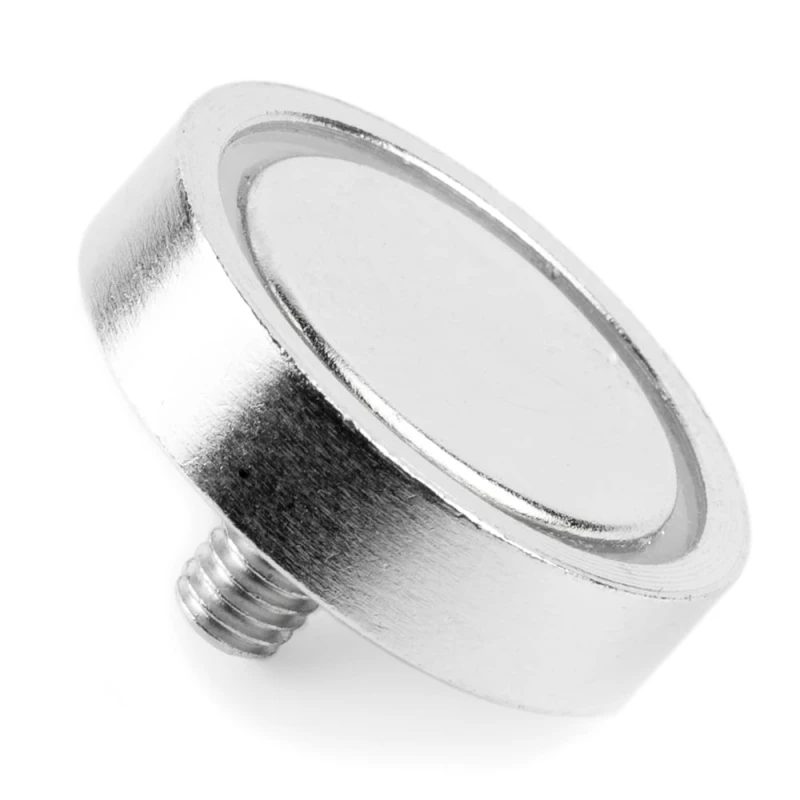

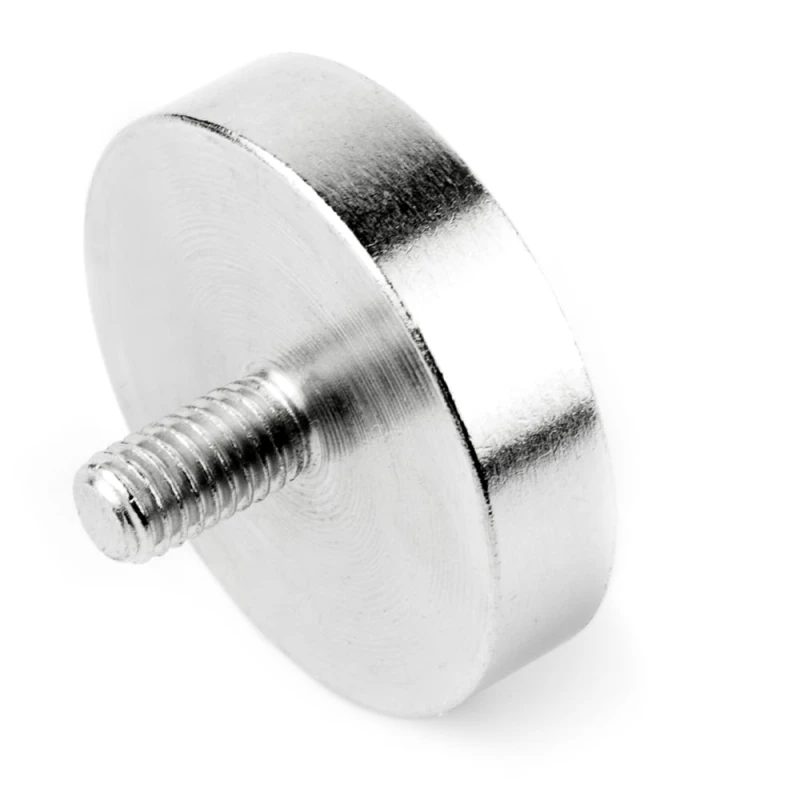

The GTN-32 is a powerful neodymium pot magnet designed for retrieval and heavy-duty fastening applications. This 32 mm diameter magnet features an integrated M6 threaded stud for flexible and secure installation.
Key Specifications & Features
- Magnet Type: Neodymium Pot Magnet (Retrieval Magnet)
- Diameter: 32 mm
- Maximum Holding Force: Approximately 39 kg (achieved on direct contact with a thick ferromagnetic surface)
- Mounting: Integrated M6 external threaded stud
- Construction: Neodymium core embedded within a steel pot housing, which concentrates the magnetic field to maximize adhesion force.
- Finish: Triple-layer Nickel coating (Ni-Cu-Ni) provides protection against corrosion.
Installation and Usage Notes
The M6 threaded stud allows the magnet to be quickly screwed into existing threads or securely fastened using a nut through a hole.
The protective coating is susceptible to damage from strong impact or pressure. It is recommended for use in dry premises or when protected from external environmental influences.
Key Specifications & Features
- Magnet Type: Neodymium Pot Magnet (Retrieval Magnet)
- Diameter: 32 mm
- Maximum Holding Force: Approximately 39 kg (achieved on direct contact with a thick ferromagnetic surface)
- Mounting: Integrated M6 external threaded stud
- Construction: Neodymium core embedded within a steel pot housing, which concentrates the magnetic field to maximize adhesion force.
- Finish: Triple-layer Nickel coating (Ni-Cu-Ni) provides protection against corrosion.
Installation and Usage Notes
The M6 threaded stud allows the magnet to be quickly screwed into existing threads or securely fastened using a nut through a hole.
The protective coating is susceptible to damage from strong impact or pressure. It is recommended for use in dry premises or when protected from external environmental influences.
Model: GTN-32
EAN: 7640155432634
Material: NdFeB

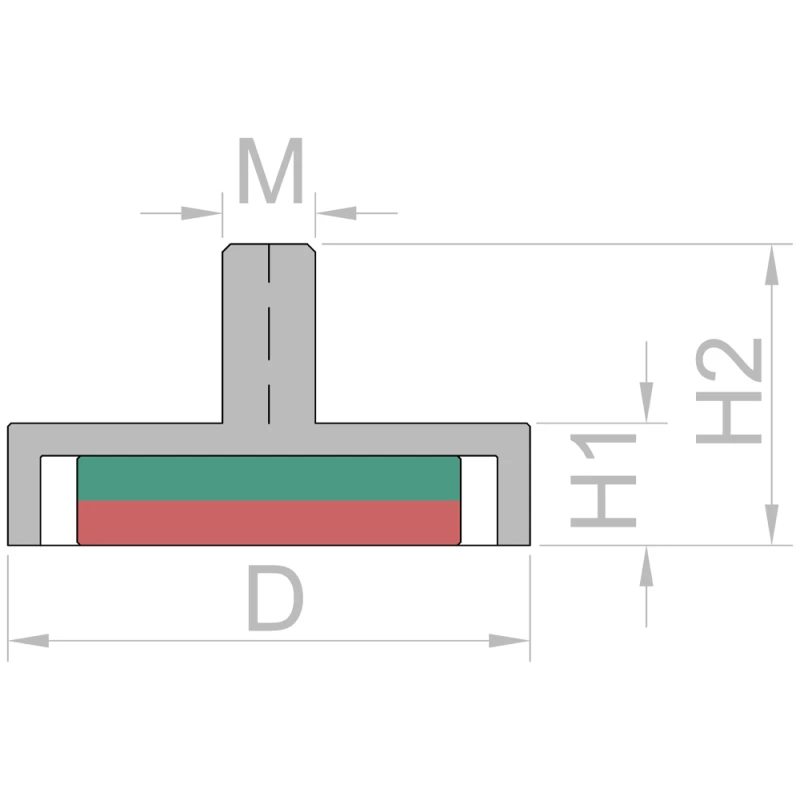

Housing diameter D: 32 mm
Housing height H1: 8 mm
Total height H2: 18.5 mm
Thread: M6
Dimensional tolerance: +/- 0.1 mm
Magnetisation grade: N42
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 39 kg (382 N)
Shear force (approx.): 7.8 kg (76.5 N)
Maximum working temperature: 80 °C
Weight: 44 g
EAN: 7640155432634
Material: NdFeB
Housing diameter D: 32 mm
Housing height H1: 8 mm
Total height H2: 18.5 mm
Thread: M6
Dimensional tolerance: +/- 0.1 mm
Magnetisation grade: N42
Coating: Nickel-plated (Ni-Cu-Ni)
Holding force (approx.): 39 kg (382 N)
Shear force (approx.): 7.8 kg (76.5 N)
Maximum working temperature: 80 °C
Weight: 44 g
-
E004217.00 €Customer price16.15 €-5%
