Magnetic door sensor, profile, 12-24V, 3A, solder terminals

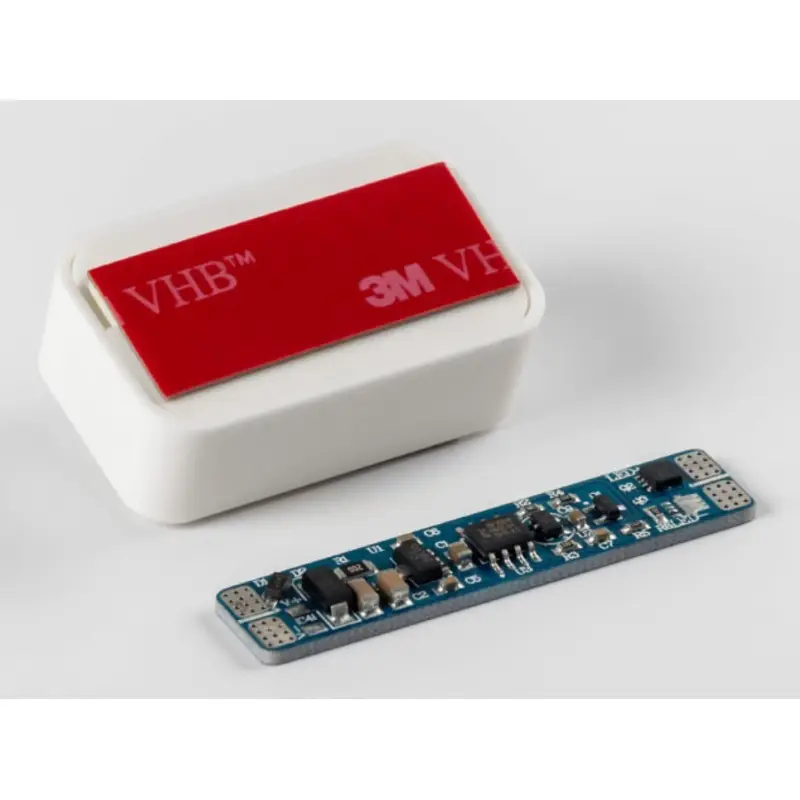

The magnetic sensor can be installed in an LED aluminum profile (plastic or other diamagnetic material). The magnet can be installed on the door, up to 1.5 cm away from the top of the magnetic sensor housing. The magnet does not require batteries. It works well when the magnet housing is glued to the door with 3M tape. When the door is open, the LED turns on. When the door is closed, the LED is turned off. Technical specifications: Input Voltage: 12...24V DC
Current: 3A
Detection Distance: up to 1.5cm

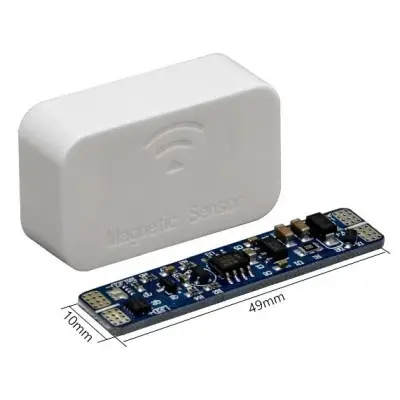

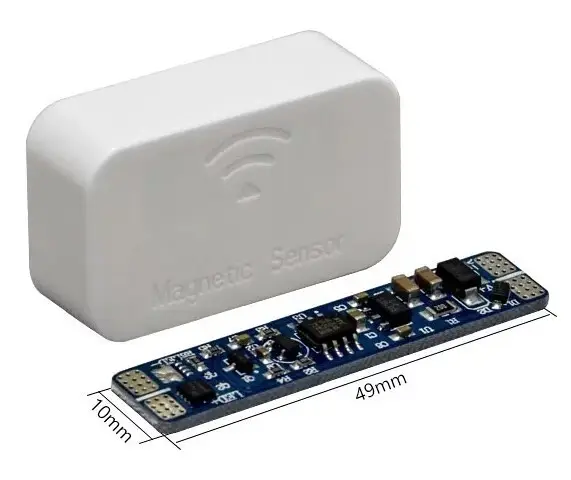

Dimensions: 49x10

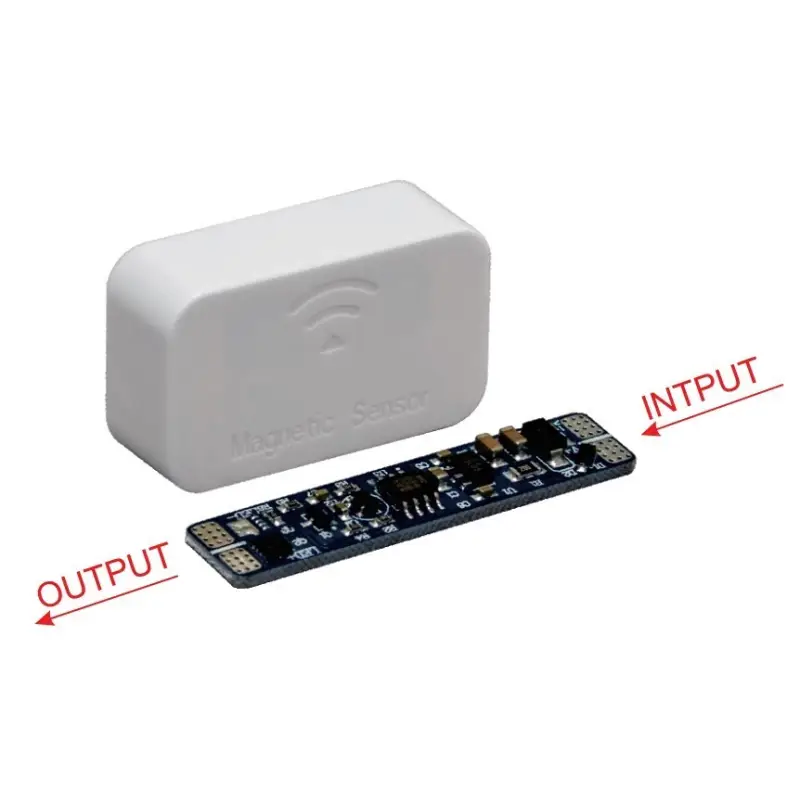

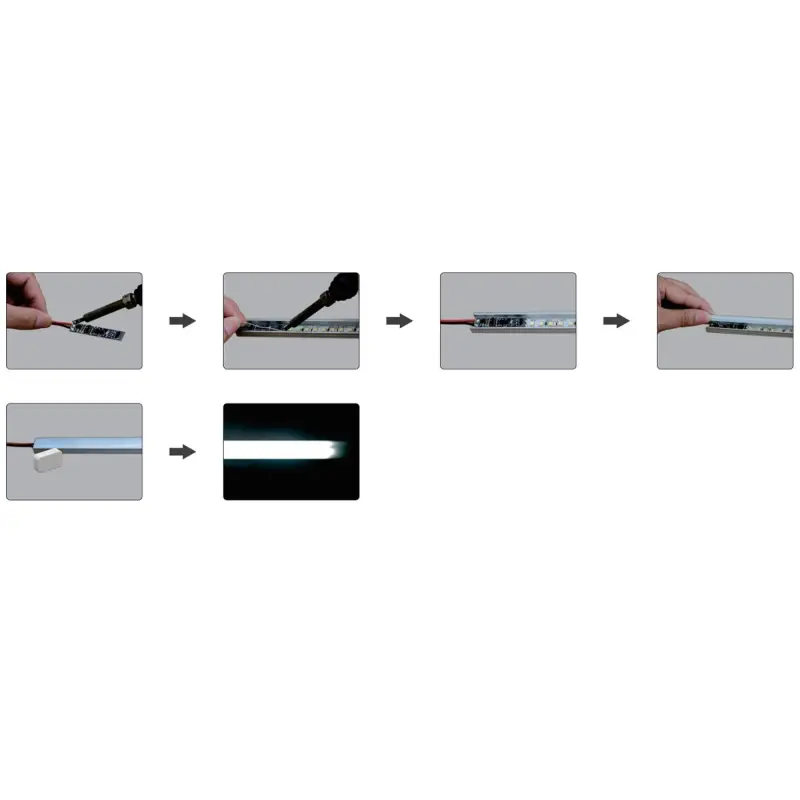

Installation: Step 1: Connect the sensor between the LED strip and the LED power cable. Step 2: Glue the LED strip and sensor to the LED profile. Step 3: Cut the spring according to the height of the LED profile. Step 4: Install the cover and end caps on the LED profile. Step 5: Connect the power supply and test
