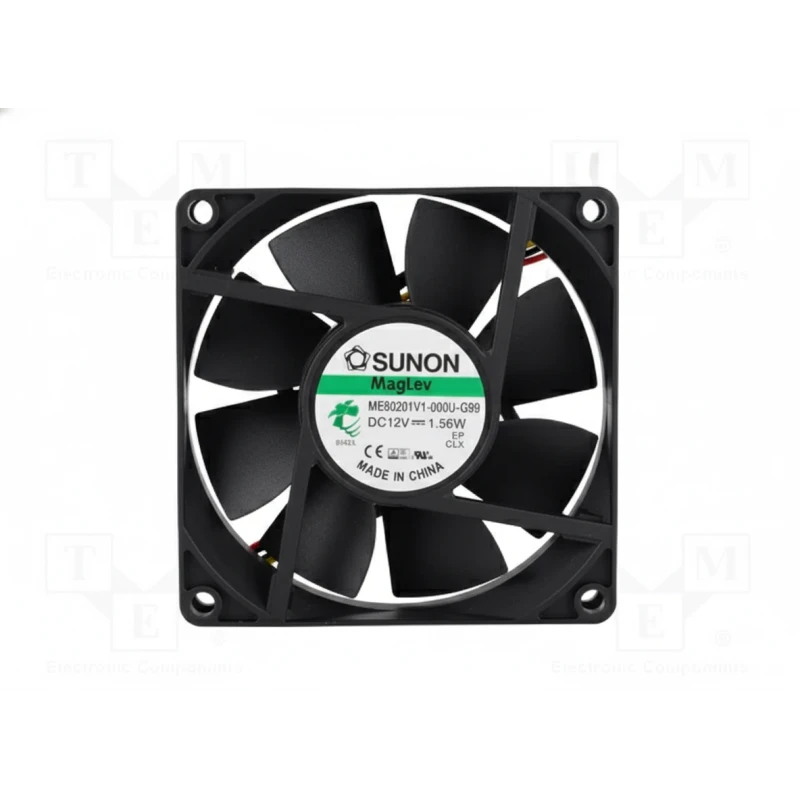

Fan 80x80x20mm 12VDC vapo 4.57mmH2O 61.16m3/h 38dBA
SKU:ME80201V1-G99
Manufacturer:Sunon
Image is for illustrative purposes only
This is a high-quality DC axial fan from SUNON, model ME80201V1-000U-G99. With dimensions of 80x80x20mm, it is compact yet powerful, delivering an airflow of 61.16m³/h while maintaining a moderate noise level of 38dBA.
The fan is equipped with an innovative Vapo bearing, which ensures a long service life and stable operation across a wide temperature range (-10 to 70°C). It operates on 12V DC (within a 6...13.8V DC range) with a power consumption of just 1.56W. Additional features like autorestart functionality enhance its reliability, making this fan an excellent choice for various electronic devices and cooling systems.
The fan is equipped with an innovative Vapo bearing, which ensures a long service life and stable operation across a wide temperature range (-10 to 70°C). It operates on 12V DC (within a 6...13.8V DC range) with a power consumption of just 1.56W. Additional features like autorestart functionality enhance its reliability, making this fan an excellent choice for various electronic devices and cooling systems.
Manufacturer: SUNON
Type of fan: DC
Kind of fan: axial
Operating voltage: 6...13.8V DC
Fan dimensions: 80x80x20mm
Power consumption: 1.56W
Current rating: 0.13A
Fan efficiency: 61.16m3/h
Noise level: 38dBA
Kind of Bearing: Vapo
Signal output: F type
Rotational rate/speed: 3300 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x3
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 4.57mm H2O
Wire size: 24AWG
Supply voltage: 12V DC
Gross weight: 65.3 g
Manufacturer part number: ME80201V1-000U-G99
TME Symbol: ME80201V1-G99
