SKU:V-15-1C25
New

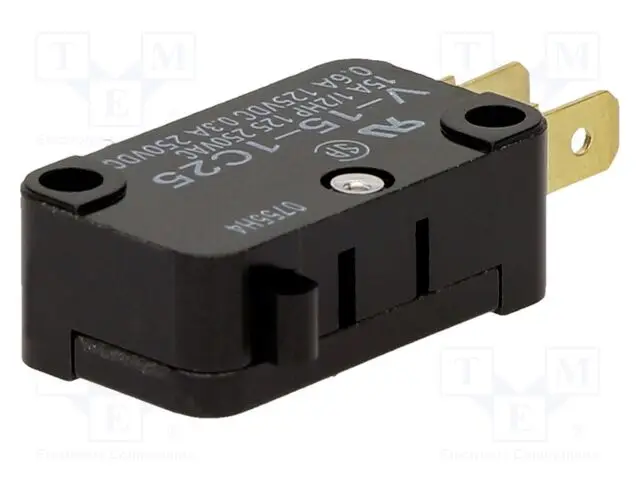

Image is for illustrative purposes only
ARATAS V-15-1C25 is a SNAP ACTION microswitch from the V series, designed without an operating lever. It features an SPDT contact configuration with an ON-(ON) momentary switching mechanism.
The switch supports contact ratings of up to 15A / 250V AC and 0.6A / 125V DC under resistive load. It is equipped with 4.75x0.5mm connector terminals, provides an ingress protection rating of IP40, and features a mechanical durability of up to 50,000,000 cycles.
The switch supports contact ratings of up to 15A / 250V AC and 0.6A / 125V DC under resistive load. It is equipped with 4.75x0.5mm connector terminals, provides an ingress protection rating of IP40, and features a mechanical durability of up to 50,000,000 cycles.
Manufacturer: ARATAS
Manufacturer designation: V-15-1C25
Type of switch: microswitch SNAP ACTION
Switch features: without lever
Contacts configuration: SPDT
Switching method: ON-(ON)
AC contacts rating @R (resistive load): 15A / 250V AC
DC contacts rating @R (resistive load): 0.6A / 125V DC
Max. contact resistance: 15mΩ
Number of positions: 2
Number of stable positions: 1
Operating force: 1.96N
Leads: connectors
Leads dimensions: 4.75x0.5mm
Body dimensions: 27.8x10.3x15.9mm
IP rating: IP40
Operating temperature: -25...80°C
Mechanical durability: 50,000,000 cycles
Electrical life: 100,000 cycles
Manufacturer series: V
Weight: 6.32g
EAN code: 4547648599535
Tariff code: 8536508000
Manufacturer designation: V-15-1C25
Type of switch: microswitch SNAP ACTION
Switch features: without lever
Contacts configuration: SPDT
Switching method: ON-(ON)
AC contacts rating @R (resistive load): 15A / 250V AC
DC contacts rating @R (resistive load): 0.6A / 125V DC
Max. contact resistance: 15mΩ
Number of positions: 2
Number of stable positions: 1
Operating force: 1.96N
Leads: connectors
Leads dimensions: 4.75x0.5mm
Body dimensions: 27.8x10.3x15.9mm
IP rating: IP40
Operating temperature: -25...80°C
Mechanical durability: 50,000,000 cycles
Electrical life: 100,000 cycles
Manufacturer series: V
Weight: 6.32g
EAN code: 4547648599535
Tariff code: 8536508000
-
