Microscope Andonstar AD409SA, 10.1', 170x, 4MP
SKU:AD409-SA
New
Image is for illustrative purposes only

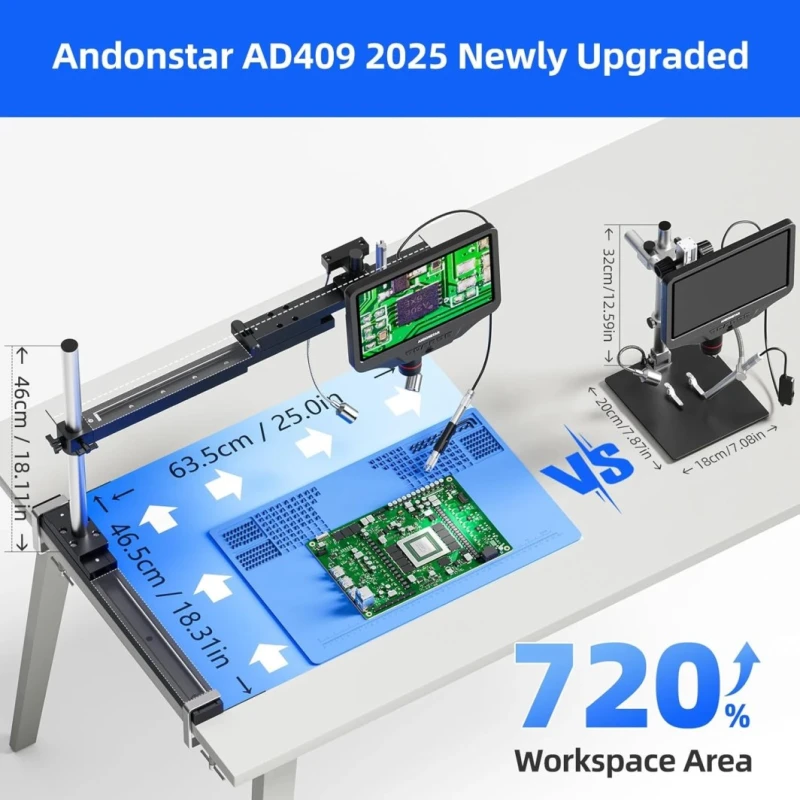

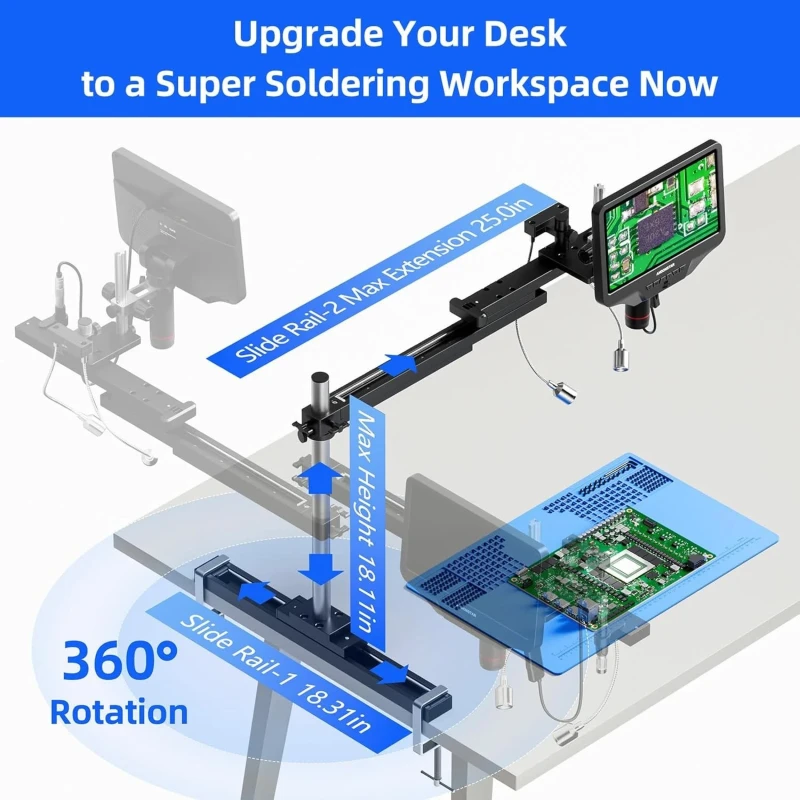

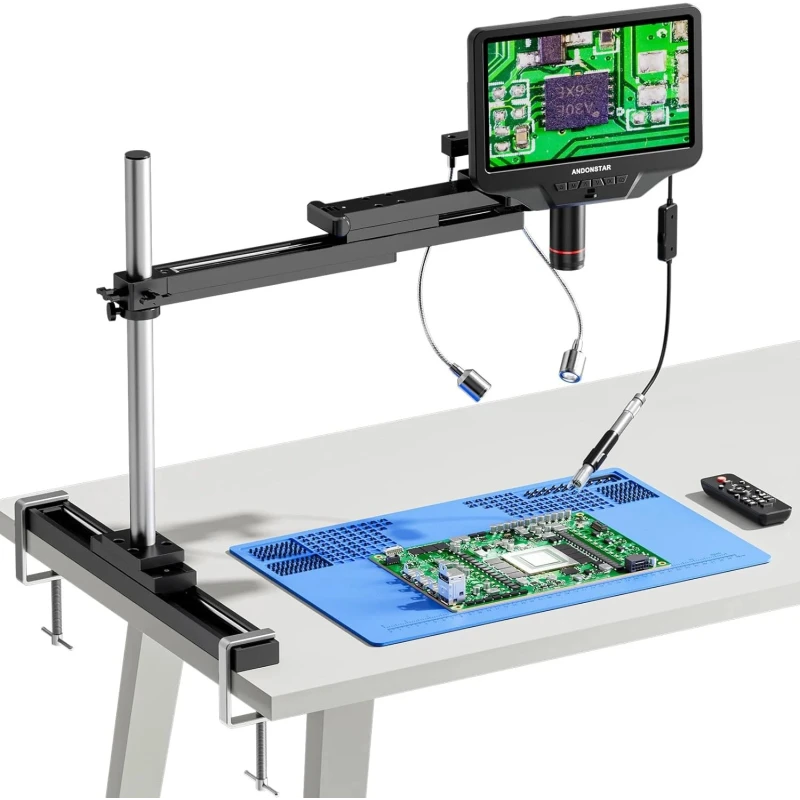

The Andonstar AD409SA is a 2025 newly upgraded digital microscope featuring an innovative Slide Rail Arm Stand. This professional setup provides a massive working area of up to 25″ x 18.3″ x 18.1″, offering a 720% increase in workspace compared to previous models. It is specifically designed to accommodate large PCBs and multiple tools, ensuring you never feel cramped during precision work.
This 2-in-1 device seamlessly combines a high-precision digital microscope with a 3D endoscope, allowing for 360° exploration of components without any blind spots. The 10.1-inch IPS screen provides stunning clarity, while the system supports ultra-high-definition 2160P video recording. To protect the high-quality industrial lens, it features a unique UV filter that is heat-resistant, oil-proof, and anti-smoke—essential for durability in soldering environments.

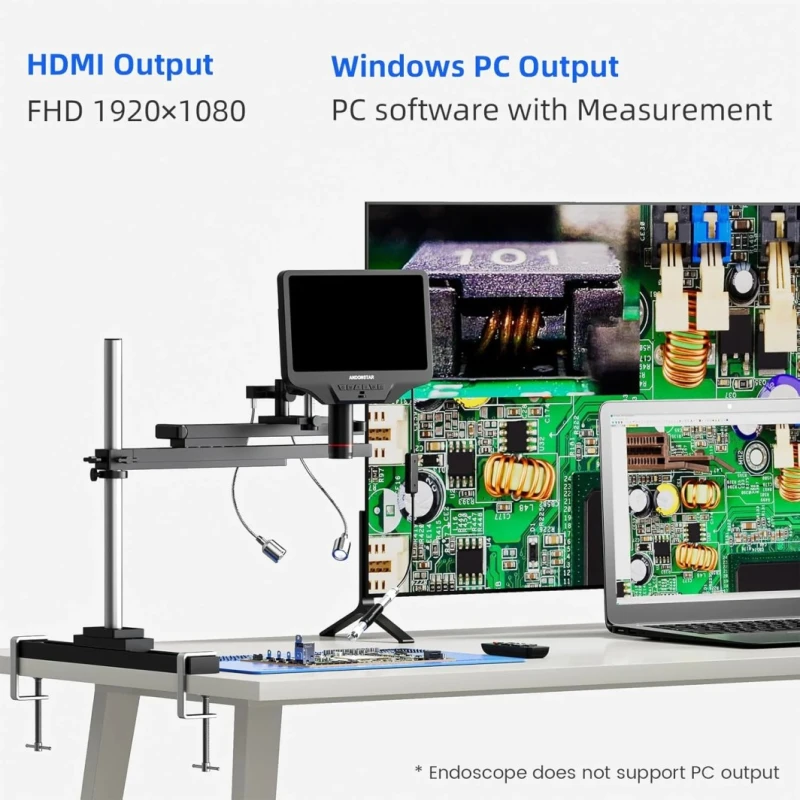

The AD409SA offers multiple output methods, including HDMI, Windows PC connection, and WiFi. With the professional measurement software, users can accurately calculate areas, measure lengths, and capture high-quality documentation. The industrial-grade metal glide rails and dual metal C-clamps ensure rock-solid stability, keeping the focus perfectly steady even during aggressive adjustments.
This 2-in-1 device seamlessly combines a high-precision digital microscope with a 3D endoscope, allowing for 360° exploration of components without any blind spots. The 10.1-inch IPS screen provides stunning clarity, while the system supports ultra-high-definition 2160P video recording. To protect the high-quality industrial lens, it features a unique UV filter that is heat-resistant, oil-proof, and anti-smoke—essential for durability in soldering environments.
The AD409SA offers multiple output methods, including HDMI, Windows PC connection, and WiFi. With the professional measurement software, users can accurately calculate areas, measure lengths, and capture high-quality documentation. The industrial-grade metal glide rails and dual metal C-clamps ensure rock-solid stability, keeping the focus perfectly steady even during aggressive adjustments.
Display: 10.1-inch IPS screen
Video resolution: 2160P UHD
Magnification: Up to 170x
Sensor: 4MP
Workspace: 25″ x 18.3″ x 18.1″ (63.5 x 46.5 x 46 cm)
Output methods: HDMI, Windows PC (endoscope not supported on PC), WiFi
Storage: Micro SD card up to 64GB (Class 10 recommended)

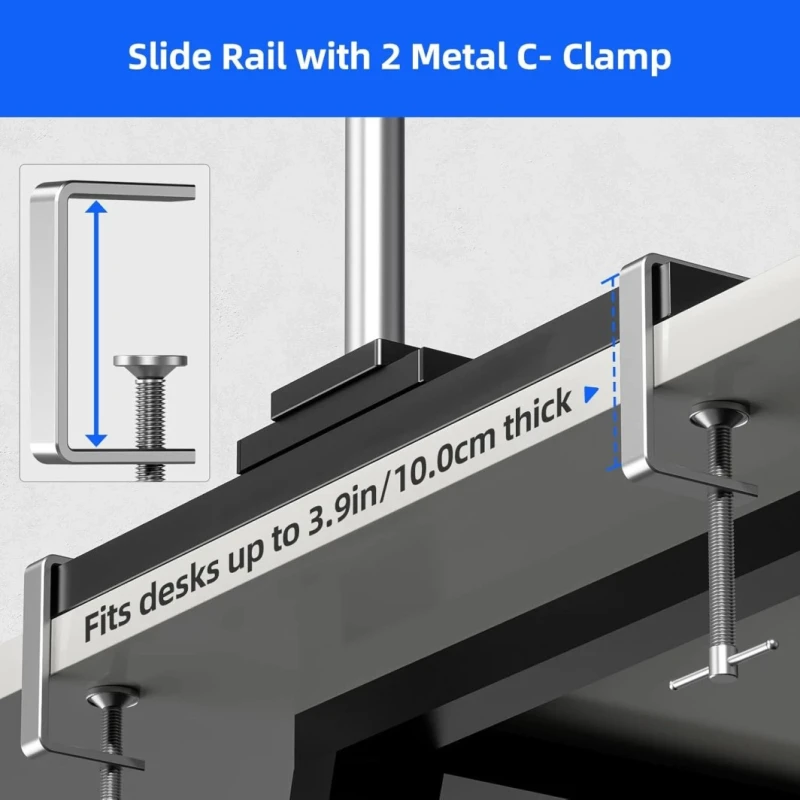

Clamping system: Dual metal C-clamps for workbenches up to 3.9″ (10 cm) thick
Lens protection: High-temp resistant, oil-proof, and anti-smoke UV filter

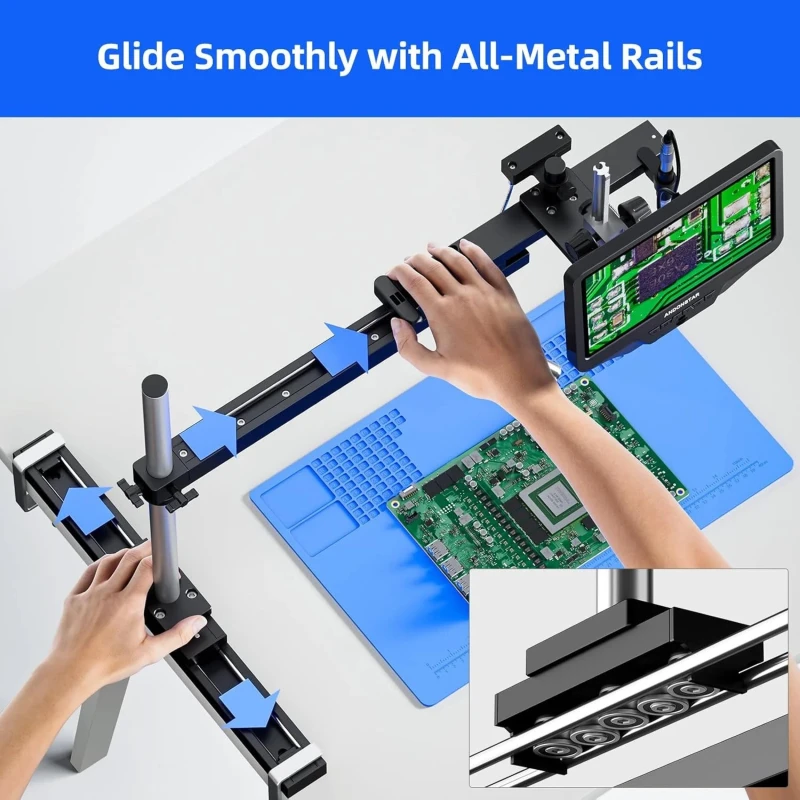

Movement: 360° positioning via all-metal glide rails
Software: Professional measurement software for Windows

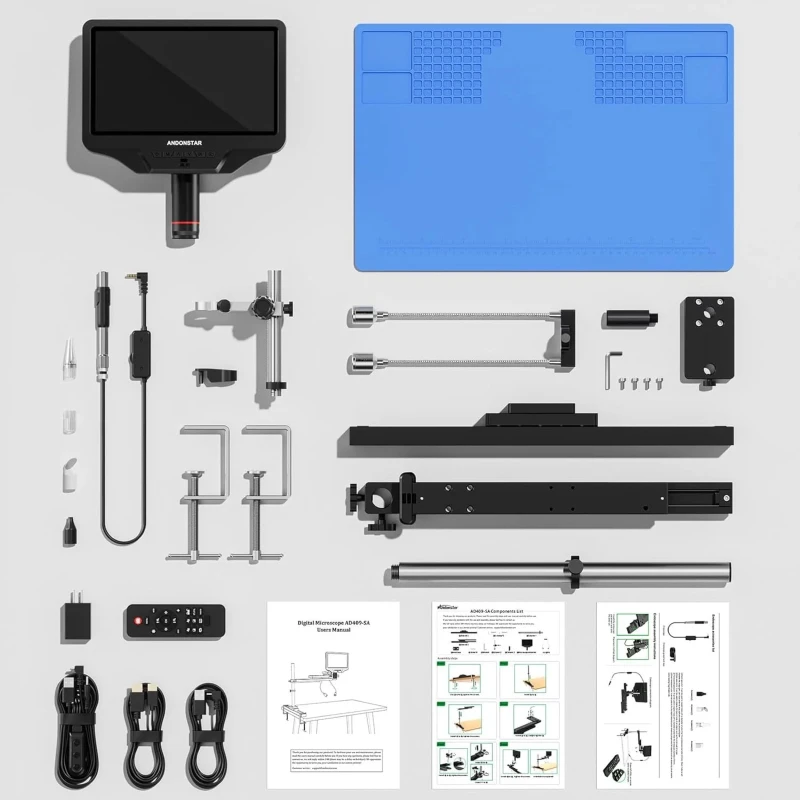

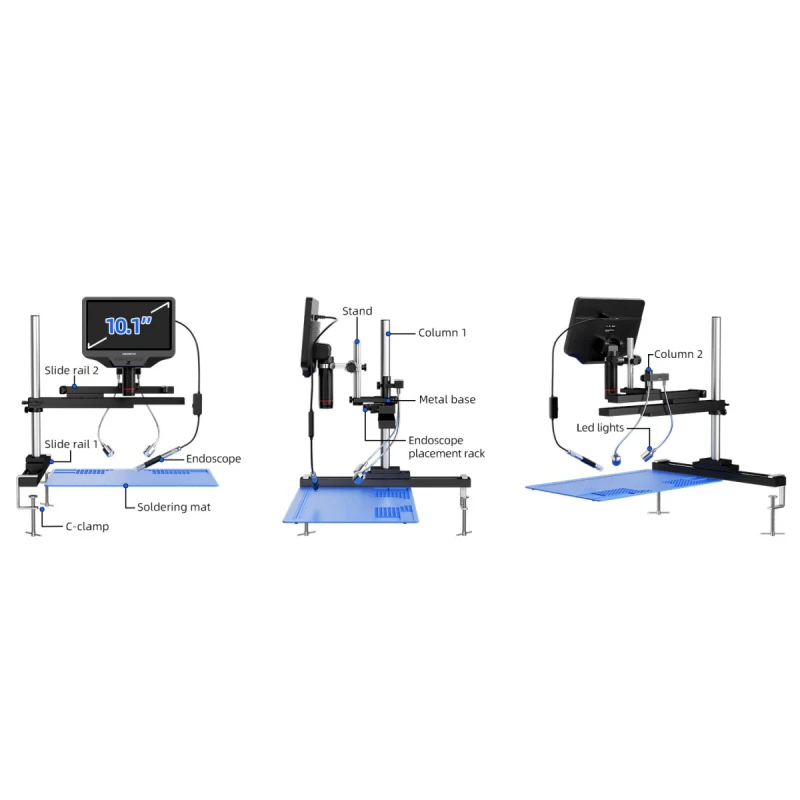

Package contents: Microscope monitor, UV filter, Soldering mat, Slide Rails, LED Lights, Columns, Base, Stand, C-clamps, Endoscope, Remote, Power Adapter/Cables, HDMI Cable, USB Cable
Video resolution: 2160P UHD
Magnification: Up to 170x
Sensor: 4MP
Workspace: 25″ x 18.3″ x 18.1″ (63.5 x 46.5 x 46 cm)
Output methods: HDMI, Windows PC (endoscope not supported on PC), WiFi
Storage: Micro SD card up to 64GB (Class 10 recommended)
Clamping system: Dual metal C-clamps for workbenches up to 3.9″ (10 cm) thick
Lens protection: High-temp resistant, oil-proof, and anti-smoke UV filter
Movement: 360° positioning via all-metal glide rails
Software: Professional measurement software for Windows
Package contents: Microscope monitor, UV filter, Soldering mat, Slide Rails, LED Lights, Columns, Base, Stand, C-clamps, Endoscope, Remote, Power Adapter/Cables, HDMI Cable, USB Cable
-
AD11269.00 €Customer price65.55 €-5%
