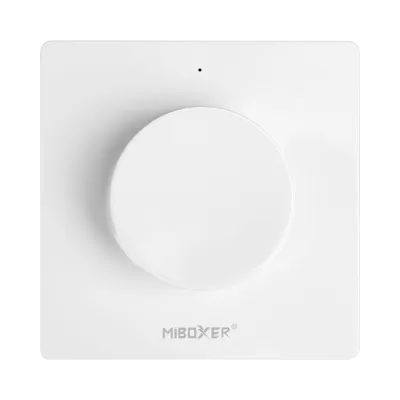

MONO/CCT LED rotary wall controller CR2032 white
SKU:K1W-PANEL
Manufacturer:MiBoxer
New
Image is for illustrative purposes only

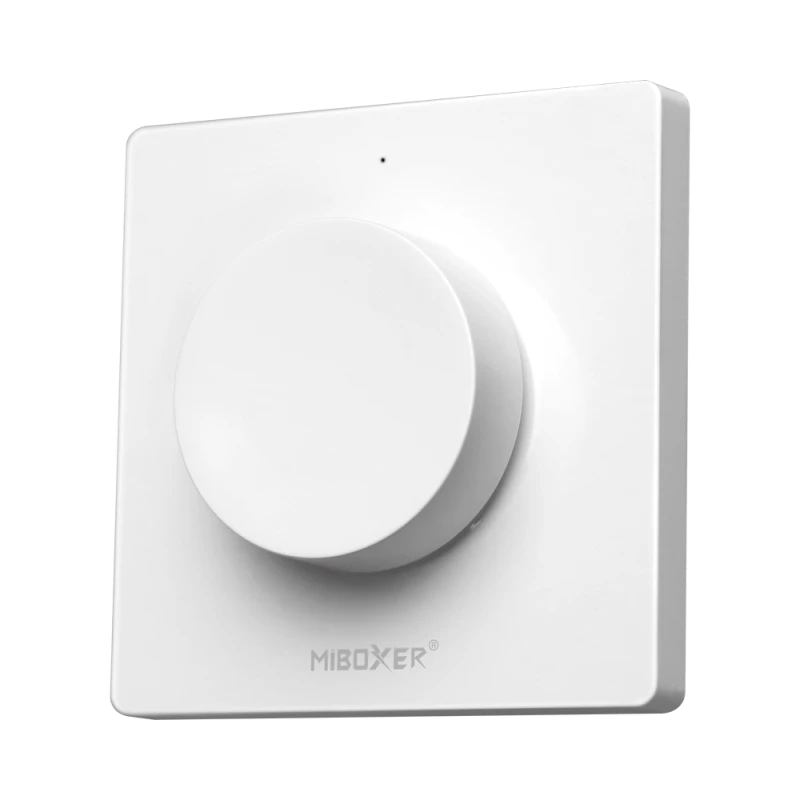

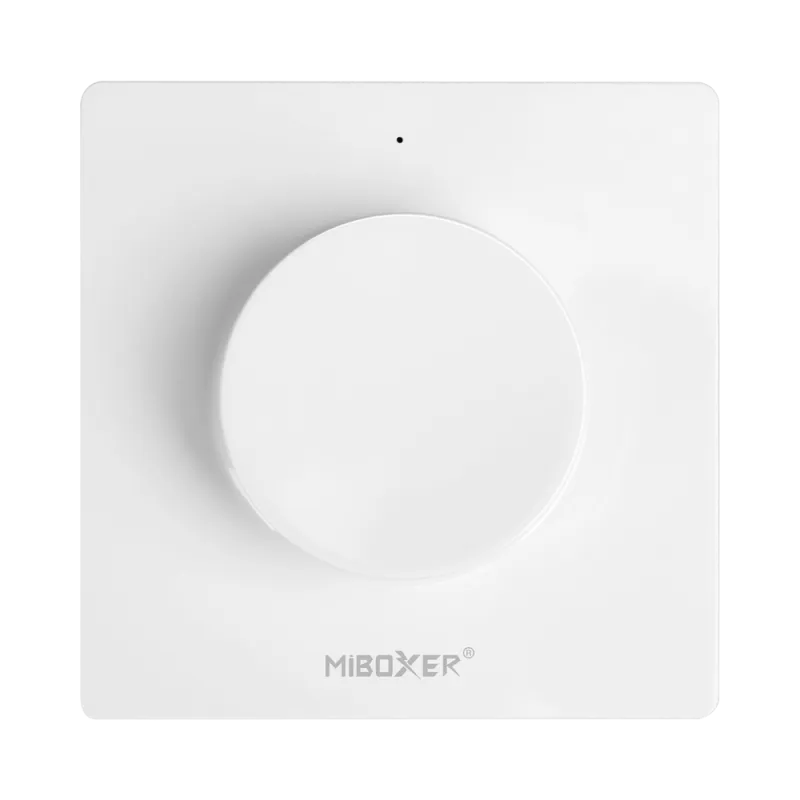

The Mi-Light/MiBoxer K1 is a wireless, wall-mounted rotary controller designed for seamless management of monochromatic (MONO) and dual-color (CCT) LED lighting systems.
Key Features
- Provides smooth rotary control for precise brightness dimming and color temperature adjustment (CCT).
- Compatible with both single-color (MONO) and tunable white (CCT) LED strips.
- Utilizes robust 2.4 GHz RF transmission, offering an effective control range of up to 30 meters.
- Standard 86x86 mm wall panel size, finished in white.
- Powered efficiently by a single CR2032 battery.
System Requirements
This device functions as a remote control and requires pairing with a compatible LED controller (purchased separately) for full system operation.
Key Features
- Provides smooth rotary control for precise brightness dimming and color temperature adjustment (CCT).
- Compatible with both single-color (MONO) and tunable white (CCT) LED strips.
- Utilizes robust 2.4 GHz RF transmission, offering an effective control range of up to 30 meters.
- Standard 86x86 mm wall panel size, finished in white.
- Powered efficiently by a single CR2032 battery.
System Requirements
This device functions as a remote control and requires pairing with a compatible LED controller (purchased separately) for full system operation.
Compatibility: Single Color + CCT White
Control Distance: 30m
Control Zones: 1 Zone

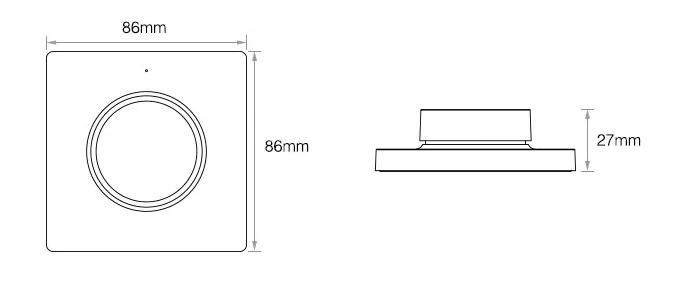

Dimensions: 86mm x 86mm x 27mm
Model No.: K1
Operating Temperature: -10°C to +40°C
Transmission Frequency: 2.4GHz
Voltage: 3V CR2032 battery
Control Distance: 30m
Control Zones: 1 Zone
Dimensions: 86mm x 86mm x 27mm
Model No.: K1
Operating Temperature: -10°C to +40°C
Transmission Frequency: 2.4GHz
Voltage: 3V CR2032 battery
