SKU:ROB-2065
Image is for illustrative purposes only
The N20 is a compact 6 V brushed DC motor with a 1:20 metal gearbox and D-shaped output shaft. The D-shaft can be connected to compatible wheels, gears and couplings.

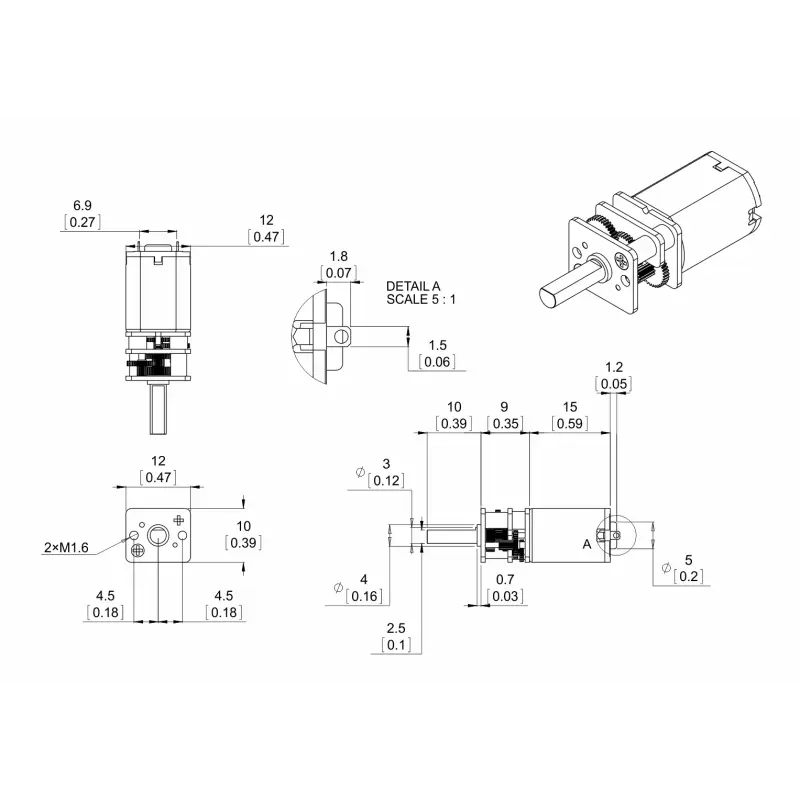

According to the source specification, the no-load speed is 500 rpm with a no-load current below 45 mA. At nominal load, the speed is 350 rpm, torque is 0.09 kg·cm and current is below 100 mA. Stall torque is 0.12 kg·cm and stall current is 200 mA. The motor measures 35.2 × 12 × 10 mm.
Model: N20
Motor type: brushed DC motor
Rated voltage: 6 V
Gear ratio: 1:20
Gearbox carrier: brass
Gear material: metal
Output shaft: D-shaft
No-load speed: 500 rpm
No-load current: <45 mA
Nominal speed: 350 rpm
Nominal torque: 0.09 kg·cm
Nominal current: <100 mA
Stall torque: 0.12 kg·cm
Stall current: 200 mA
Dimensions: 35.2 × 12 × 10 mm
Weight: 10 g
Motor type: brushed DC motor
Rated voltage: 6 V
Gear ratio: 1:20
Gearbox carrier: brass
Gear material: metal
Output shaft: D-shaft
No-load speed: 500 rpm
No-load current: <45 mA
Nominal speed: 350 rpm
Nominal torque: 0.09 kg·cm
Nominal current: <100 mA
Stall torque: 0.12 kg·cm
Stall current: 200 mA
Dimensions: 35.2 × 12 × 10 mm
Weight: 10 g
-
