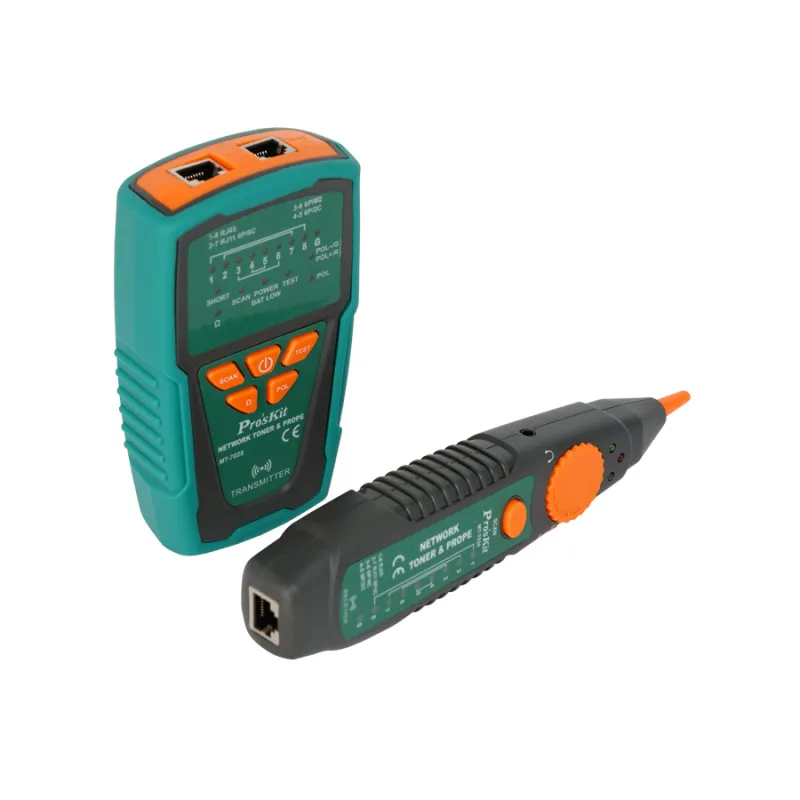

Cable finder with generator, LAN cable tester up to 3km
SKU:MT-7028
Manufacturer:Pro'sKit
Image is for illustrative purposes only
This device allows you to easily identify and check cable status and troubleshoot wiring for continuity, shorts, opens, and cross connections. Compatible with RJ45 LAN cables Cat 5, 5e, 6, 7 (UTP/STP), RJ11/12 telephone cables Cat. 3 (2/4/6 pin) and standard solid/stranded wires using the alligator clip cable. Ideal for all telecommunication, networking, data communication, audio/video, cable TV and weather-proof cable installation and maintenance fields.
Finding fence wire break point:
Preparation: Turn off the system and disconnect the fence wire connections.
Grounding: Use proper grounding - connect the BLACK alligator clip to a grounded outlet for best results.
Connection: Connect the RED alligator clip to the end of the fence wire, with the other end of the wire connected to ground.
Activation: Turn on the generator and move the receiver along the wire.
Note: Be aware that you may need to dig up the fence wire to better hear the signal.
Result: Signal loss = break point, which can be repaired with a waterproof Scotchlok 0.5-1.5mm² 600V Gel connector!
Finding fence wire break point:
Preparation: Turn off the system and disconnect the fence wire connections.
Grounding: Use proper grounding - connect the BLACK alligator clip to a grounded outlet for best results.
Connection: Connect the RED alligator clip to the end of the fence wire, with the other end of the wire connected to ground.
Activation: Turn on the generator and move the receiver along the wire.
Note: Be aware that you may need to dig up the fence wire to better hear the signal.
Result: Signal loss = break point, which can be repaired with a waterproof Scotchlok 0.5-1.5mm² 600V Gel connector!
Cable types: RJ45 (UTP/STP), RJ11/12 (2/4/6 pin), coaxial, alligator clips
Tone frequency: 1 kHz
Tone mode: Hi/Low two-note tone
Max. distance of transmission: ≧3 km (1 kHz)
RECEIVER Frequency: 1 kHz
Compatible connectors: RJ45 (8 pin)/RJ11 (6 pin)
Signal status indication: 1 LED and buzzer, built-in headphone jack
Battery type: DC 9.0 V (NEDA 1604/6F22 × 1 pc.)
Dimensions: 198 × 45 × 33 mm
Tone frequency: 1 kHz
Tone mode: Hi/Low two-note tone
Max. distance of transmission: ≧3 km (1 kHz)
RECEIVER Frequency: 1 kHz
Compatible connectors: RJ45 (8 pin)/RJ11 (6 pin)
Signal status indication: 1 LED and buzzer, built-in headphone jack
Battery type: DC 9.0 V (NEDA 1604/6F22 × 1 pc.)
Dimensions: 198 × 45 × 33 mm
-
