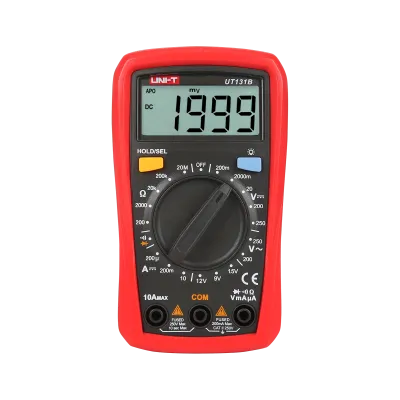

Palm Size Multimeter

SKU:UT131B
Manufacturer:Uni-T
New Palm Size Multimeter
Image is for illustrative purposes only
The UNI-T UT131B is a compact, next-generation digital multimeter designed for reliable basic electrical measurements. It features a rugged industrial design that ensures durability and impact resistance from drops of up to 2 meters.

Key Features
- Integrated battery testing function for 1.5V, 9V, and 12V batteries with clear status indication.
- Clear LCD display equipped with a backlight for easy reading in low-light environments.
- Data Hold function to freeze measurements on the screen for convenient recording.
- Automatic power-off feature to preserve battery life during periods of inactivity.
- Built to meet CAT II 250V safety standards for secure operation.

Applications
This versatile tool is ideal for everyday household electrical checks, professional workshop tasks, and educational purposes. Its compact size and drop-resistant casing make it a dependable choice for students, DIY enthusiasts, and technicians working in various environments.
DC Voltage: 200mV/2000mV/20V/200V/250V
AC Voltage: 200V/250V
DC Current: 200μA/200mA/10A
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ
Battery Test: 1.5V/9V/12V
Max Display: 1999
Range Selection: Manual
Drop Test: 2m
Safety Rating: CAT II 250V
Diode Test: Yes
Continuity Buzzer: Yes
Data Hold: Yes
LCD Backlight: Yes
Auto Power Off: Yes
Power: 1.5V battery (R03) x 2
Display Size: 53mm x 28mm
Dimensions: 134mm x 77mm x 47mm
Weight: 206g
UT131B Manual EN8.58MB
Download
UT131B Datasheet EN
Download
