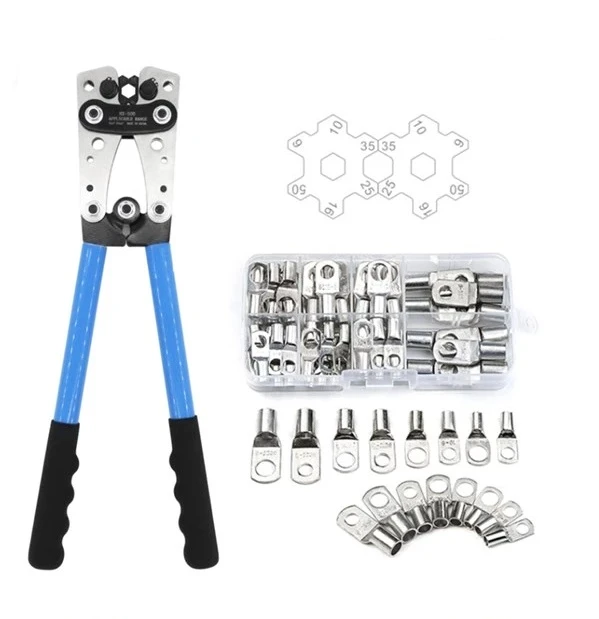

Press pliers for ring terminals 6-50mm2 60 terminals included
SKU:NAR0873
Image is for illustrative purposes only
Tool for crimping copper and aluminum cable glands.
Working range: 6.0 - 50.0 mm2

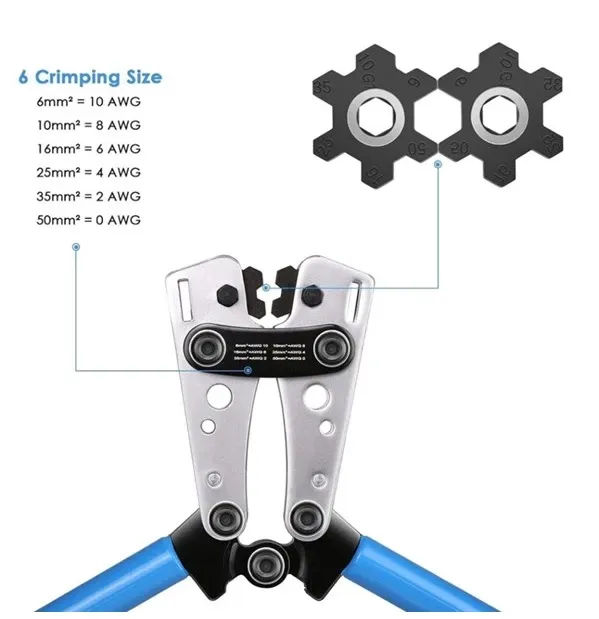

Integrated dies for sleeves: 6-10-16-25-35-50
Press head has HEX-Tech rotary clamping dies
High quality materials used guarantee a long tool life
Working equipment with both hands
Tool steel, forged, precision

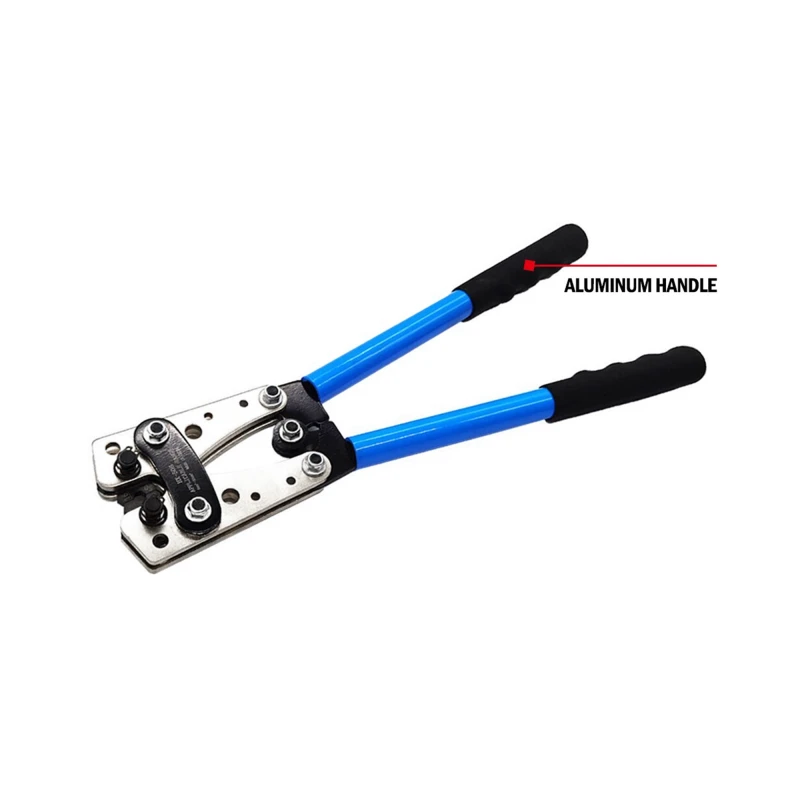

Comfortable, soft and profiled handle
Working range: 6.0 - 50.0 mm2
High quality tinned copper product, environmentally friendly, safe to use

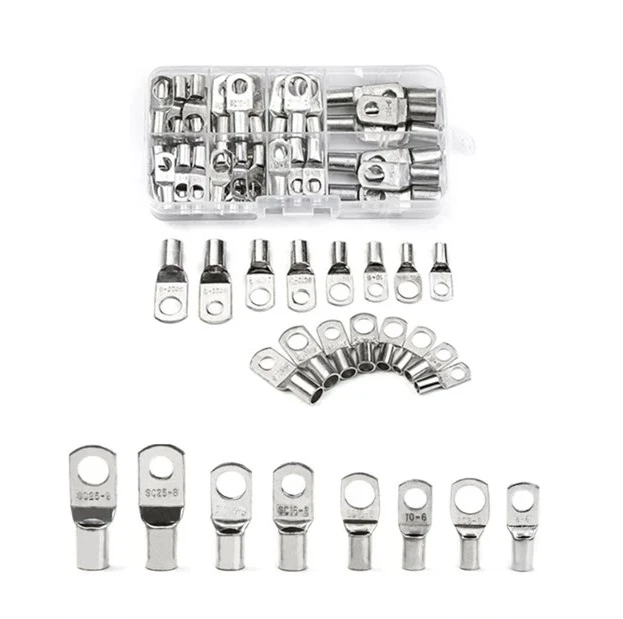

Various crimp terminals packed in a practical case with compartments
Packaged in:
5 pcs. x SC25-8 (wire width 7 mm, screw hole 8.5 mm)
5 pcs. x SC25-6 (wire width 7 mm, screw hole 6.5 mm)
5 pcs. x SC16-8 (wire hole width 6 mm, screw hole 8.5 mm)
5 pcs. x SC16-6 (wire hole width 6 mm, screw hole 6.5 mm)
10 pieces x SC10-8 (wire hole width 5.4 mm, screw hole 8.5 mm)
10 pieces x SC10-6 (wire hole width 5.4 mm, screw hole 6.5 mm)
10 pieces x SC6-8 (wire hole width 4.1 mm, screw hole 8.5 mm)
10 pieces x SC6-6 (wire hole width 4.1 mm, screw hole 6.5 mm)
Working range: 6.0 - 50.0 mm2
Integrated dies for sleeves: 6-10-16-25-35-50
Press head has HEX-Tech rotary clamping dies
High quality materials used guarantee a long tool life
Working equipment with both hands
Tool steel, forged, precision
Comfortable, soft and profiled handle
Working range: 6.0 - 50.0 mm2
High quality tinned copper product, environmentally friendly, safe to use
Various crimp terminals packed in a practical case with compartments
Packaged in:
5 pcs. x SC25-8 (wire width 7 mm, screw hole 8.5 mm)
5 pcs. x SC25-6 (wire width 7 mm, screw hole 6.5 mm)
5 pcs. x SC16-8 (wire hole width 6 mm, screw hole 8.5 mm)
5 pcs. x SC16-6 (wire hole width 6 mm, screw hole 6.5 mm)
10 pieces x SC10-8 (wire hole width 5.4 mm, screw hole 8.5 mm)
10 pieces x SC10-6 (wire hole width 5.4 mm, screw hole 6.5 mm)
10 pieces x SC6-8 (wire hole width 4.1 mm, screw hole 8.5 mm)
10 pieces x SC6-6 (wire hole width 4.1 mm, screw hole 6.5 mm)
Length: 390 mm
Weight: 1.3 kg
Material: tinned copper
Weight: 1.3 kg
Material: tinned copper
