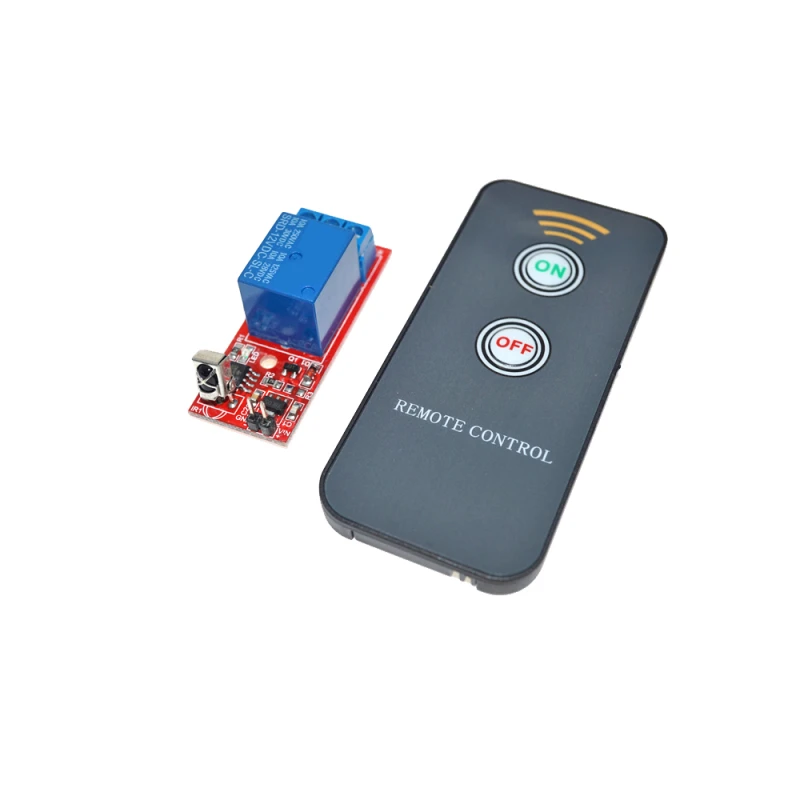

Image is for illustrative purposes only

Wireless IR relay module 12V 1 channel 250VAC 10A

SKU: OKY30610

14.00 €
- Customer price 13.30 € (-5%)
- Log in and get at least a 5% discount

Pealadu
Tallinn, Peterburi tee 90F

23 pcs

Peterburi tee Oomipood
Tallinn, Peterburi tee 90F

4 pcs

Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238

2 pcs

Lõunakeskuse Oomipood
Tartu, Lääneringtee 39

6 pcs

Põhjakeskuse Oomipood
Rakvere, Haljala tee 4

1 pcs

Kaubamajaka Oomipood
Pärnu, Papiniidu 8

2 pcs

Pargi keskuse Oomipood
Jõhvi, Puru tee 1

2 pcs

Description
Specifications

A module that allows you to control devices or systems using a wireless infrared remote control. The module has one channel that allows you to control one device.

Using the module is simple - connect the input terminals to a 12V power supply and the output terminals to the device you want to control. Then program the wireless infrared remote control and direct the signal to the module. The module switches the device on or off according to the signal.

It is well suited for controlling home electronics, such as turning on and off the TV, TV box or speakers. It can also be useful in industrial or commercial applications where equipment needs to be controlled remotely.

It is important to note that before using the module, you must ensure that you have correctly installed and configured it according to the manufacturer's instructions.

- Operating Voltage: DC 12V
- Remote Distance: 8m
- LED indicator
- With 3mm fixed screw holes, it's easy to install.
- Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode
- The middle of three ports is public, it can be normally open and normally closed output with the others.
- The circuit is insulated before the relay's output and input.
- Remote Controller make use of UPD6122 chip and NED coding format,
- frequency is 38K.
- Remote Controller User Code: OxOOFF
- Key Value: "ON"---40, "OFF"---19
- Battery: CR2025(Batteries are not included.)
