Relay module with delay timer 0-10s 12V 250V/10A
SKU:OKY3199-7
Manufacturer:Okystar

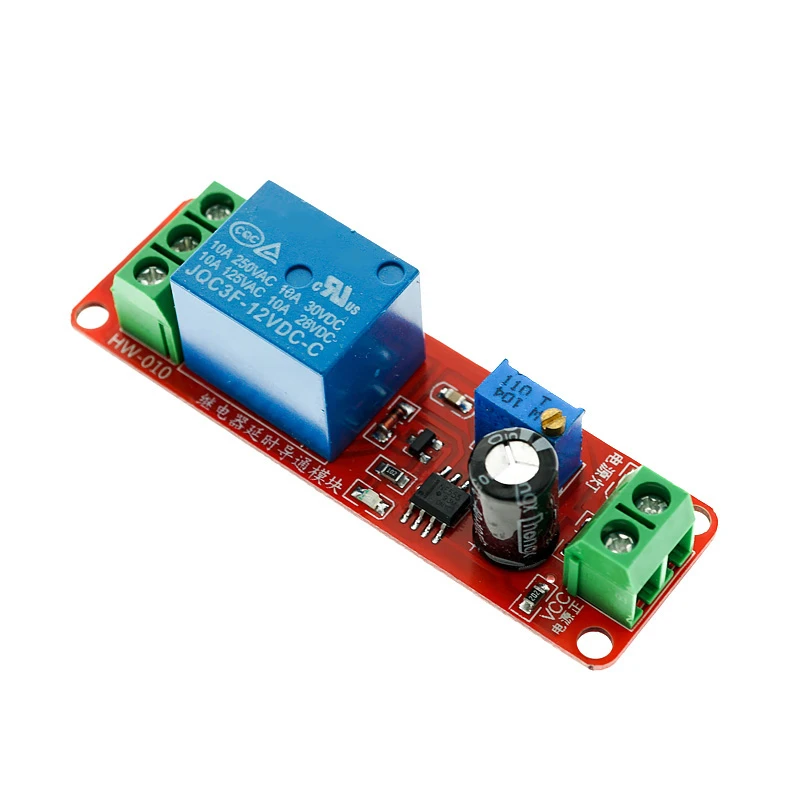

Image is for illustrative purposes only
A module that allows you to control devices or systems by turning them on or off according to a schedule. The module has a built-in delay timer that allows you to turn devices on or off after a specified delay time. Using the module is simple - connect the input terminals to the 12V power supply and the output terminals to the devices you want to control. Then set the desired delay time during which the devices should be on or off, and the module will automatically do this according to its schedule. Well suited, for example, for controlling home electronics such as lighting or ventilation systems.
Use: Controlling home electronics.
Applications: Industrial or commercial applications.
Note: It is important to note that before using the module, you must ensure that you have correctly installed and configured it according to the manufacturer's instructions.
Chip: Uses NE555 chip.
Use: Controlling home electronics.
Applications: Industrial or commercial applications.
Note: It is important to note that before using the module, you must ensure that you have correctly installed and configured it according to the manufacturer's instructions.
Chip: Uses NE555 chip.
Input voltage: 12V DC
Output voltage: 250V AC / 30V DC
Output current: 10A
Output power: 0...2000W
Switch type: NC/NO
Delay time: 0-10 seconds
Output voltage: 250V AC / 30V DC
Output current: 10A
Output power: 0...2000W
Switch type: NC/NO
Delay time: 0-10 seconds
-
